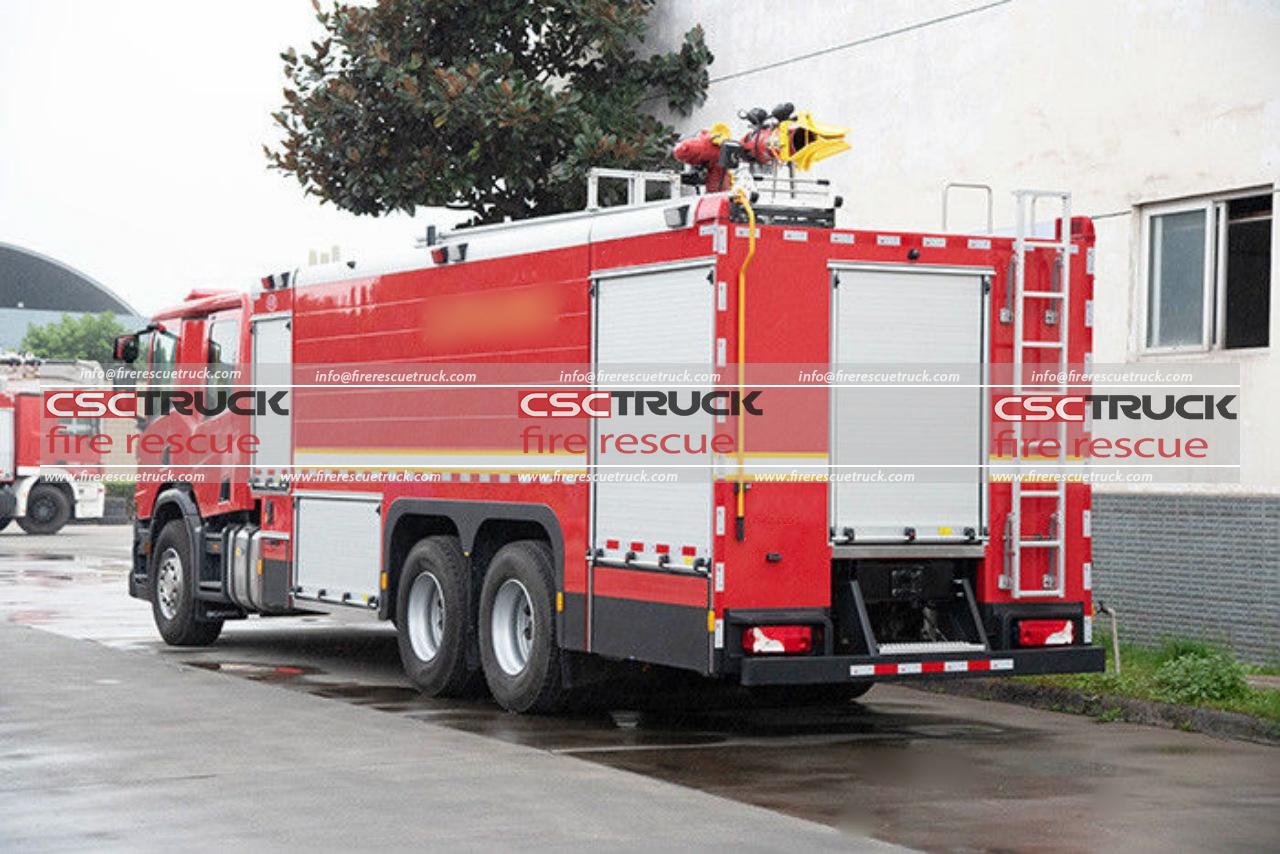

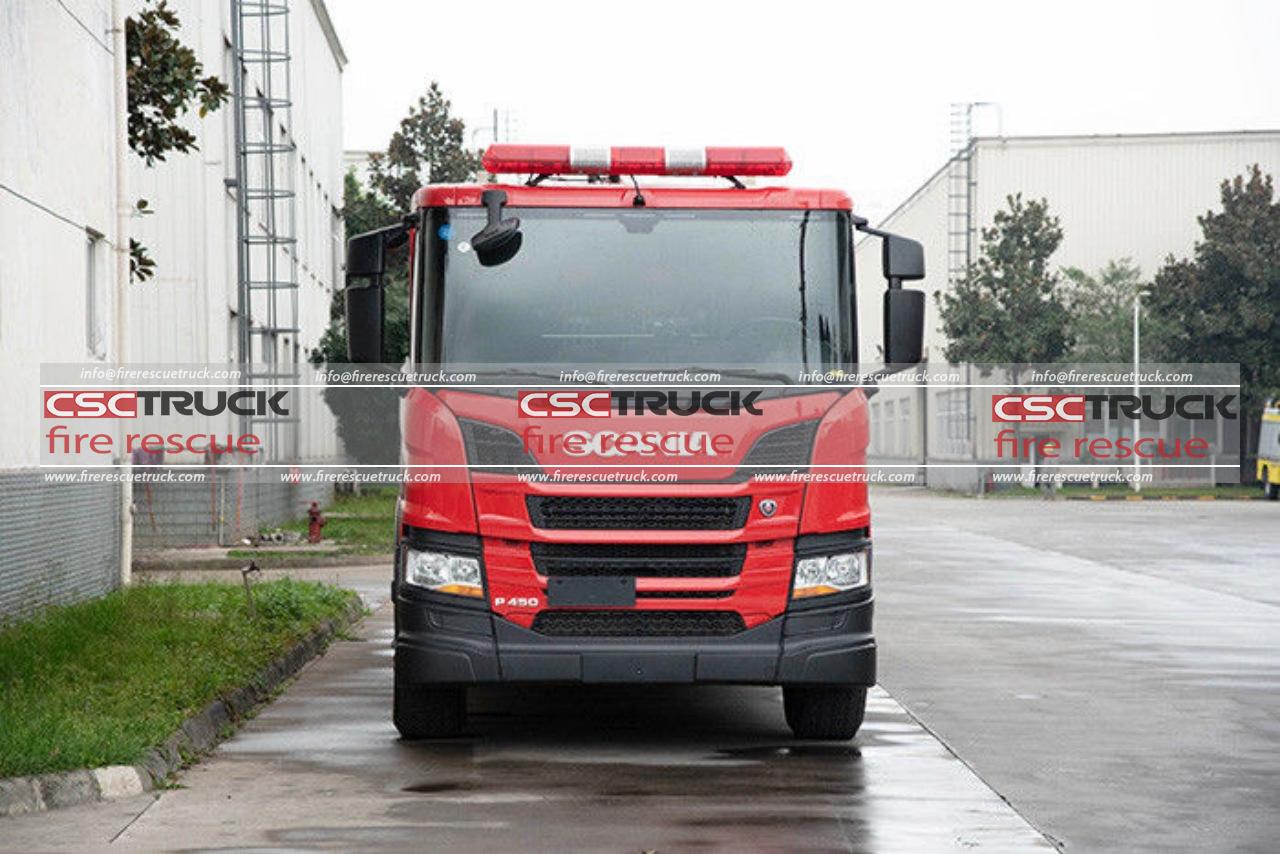

SCANIA 16000L Water Foam Fire Truck

BRIEF



The SCANIA 16000L water foam fire truck produced by CSCTRUCK Fire Rescue Truck is a high-performance firefighting vehicle designed for rapid response to large-scale industrial, urban, and petrochemical fires. Built on a robust SCANIA chassis with a 6×4 drive configuration, this tanker fire truck combines European engineering excellence with advanced firefighting technology to deliver exceptional reliability, maneuverability, and firefighting efficiency in challenging environments.

Equipped with a 12,000-liter water tank and a 4,000-liter foam tank, the SCANIA 16000L fire truck ensures a steady supply of extinguishing agents for prolonged operations. Its 331 kW engine provides strong driving power, supporting a maximum speed of 85–90 km/h and a gross vehicle weight of 33,000 kg, allowing for quick deployment to emergency sites. The fire pump system offers a powerful 100 L/s flow rate at 10.3 bar pressure, with a 7-meter suction height, ensuring efficient water intake and sustained output even under demanding conditions.

For precise and powerful firefighting, the truck is equipped with a high-capacity fire monitor, delivering an 80 L/s flow, capable of reaching over 85 meters for water and 80 meters for foam. This feature is ideal for tackling fires from a safe distance. The monitor supports remote control operation with 0°–340° horizontal rotation, enabling firefighters to target flames accurately and safely without leaving the vehicle.

The SCANIA 16000L water foam fire truck stands out for its robust construction, high pumping performance, and advanced control systems. Its combination of large-capacity tanks, powerful engine, and remote-control precision makes it perfectly suited for industrial complexes, airports, oil refineries, and large-scale municipal firefighting operations. With CSCTRUCK Fire Rescue Truck’s proven engineering and SCANIA’s reliable chassis, this model delivers outstanding strength, safety, and efficiency in modern firefighting missions.



FEATURES



1. High-Capacity Firefighting System – Equipped with a 100 L/s @ 10.3 bar water pump and a powerful fire monitor delivering 80 L/s, achieving an effective shooting range of over 85 m for water and 80 m for foam, ensuring rapid and long-distance fire suppression.
2. Large Dual-Agent Tank – Integrates a 12,000 L water tank and a 4,000 L foam tank, allowing for versatile firefighting performance against both liquid and solid fuel fires.
3. Robust SCANIA Chassis – Built on a reliable SCANIA 6×4 drive chassis with a 331 kW engine, providing strong power output, excellent traction, and superior road adaptability under full-load conditions.
4. Efficient Pumping and Suction Performance – Features a 7m suction height capability, enabling fast water intake from static sources such as lakes, ponds, or hydrants during emergency operations.
5. Advanced Control System – Equipped with a remote-control fire monitor offering 0°–340° horizontal rotation and precise angle adjustment, enhancing operational safety and firefighting efficiency from a distance.



SPECIFICATION



1. The Whole SCANIA 16000L Water Foam Fire Truck

No.	Main Items	Technical Parameters
1.1	Model	CSCWFFT016
1.2	Dimensions(LxWxH)	10,910×2,500×3,680mm
1.3	Full Load Weight	33,000kgs
1.4	Number of the Crew	2+4 Firemen (including driver)
1.5	Max. Speed	85–90 km/h
1.6	Water and Foam Capacity	12,000L Water & 4,000L Foam. PP composite material liquid tank (Never Rusts)
1.7	Water Pump Flow Rate	100L/s @ 10 bar
1.8	Roof Fire Monitor	80L/s flow rate, 85 meters shoot distance
1.9	Painting	U.S. PPG brand, Red color.

---

2. Superstructure of the SCANIA 16000L Water Foam Fire Truck

2.1 Aluminum Compartment

No.	Main Items	Technical Parameters
2.1.1	Material	All made of high-strength aluminum alloy profiles
2.1.2	Structure	All-aluminum alloy welded frame; outer skin made of bonded aluminum alloy plates
2.1.3	Roof Guard	Aluminum alloy construction with strobe warning lights, exterior lights, and interior LED roof lights
2.1.4	Ladder Frame	Multifunctional ladder frame set on the top.

2.2 Electrical System

No.	Main Items	Technical Parameters
2.2.1	Warning Light	Long row warning lights on the top; control devices installed in the cab
2.2.2	Equipment Box Lights	LED white lighting strips on both sides; switch linked to rolling door
2.2.3	Strobe Lights	Installed on the upper part for warning
2.2.4	Exterior Lighting	LED lights are provided in the upper compartment
2.2.5	Roof Lighting	LED lights inside the top of the carriage
2.2.6	Side Indicator Light	Built-in yellow indicator lights are installed on the pedals.

---

3. Water Pump, Roof Monitor, and Liquid Tank

3.1 Centrifugal Water Pump

No.	Main Items	Technical Parameters
3.1.1	Brand	Optional
3.1.2	Model	Optional
3.1.3	Flow Rate	100L/s @ 10.3 bar
3.1.4	Vacuum Pump	Electric vacuum pump
3.1.5	Priming Manner	Automatic
3.1.6	Suction Height	7 meters
3.1.7	Priming Time	≤60 seconds
3.1.8	Location	Rear-mounted

3.2 Roof Fire Monitor

No.	Main Items	Technical Parameters
3.2.1	Brand	Optional
3.2.2	Model	Optional
3.2.3	Flow Rate	80 Liters/Second
3.2.4	Shoot Range	Water ≥85 meters, Foam ≥80 meters
3.2.5	Location	On top of the tank
3.2.6	Control Manner	Remote Control
3.2.7	Horizontal Rotation	0°–340°
3.2.8	Pitch Rotation	-15°–60°

3.3 Water and Foam Tank

No.	Main Items	Technical Parameters
3.3.1	Capacity	12,000 Liters of Water, 4,000 Liters of Foam
3.3.2	Material	PP composite material (Never Rust)
3.3.3	Structure	2 tank manholes; 1 overflow/pressure relief device; 2 liquid level indicators; 1 foam tank drain outlet with valve; 1 water tank drain outlet with valve.
