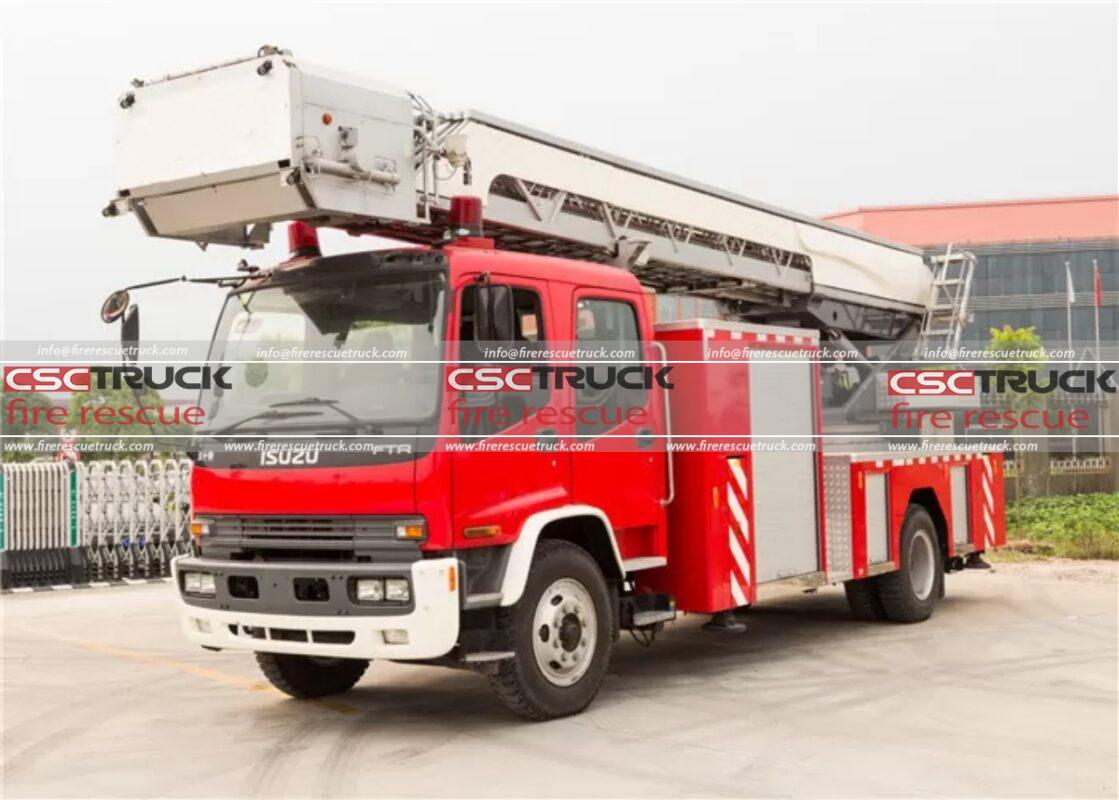

ISUZU 30M Ladder Fire Truck

What is a Fire Truck with a Ladder Called?

A fire truck with a ladder is commonly referred to as a ladder truck or aerial apparatus. This specialized vehicle is designed to support fire suppression, rescue operations, and other emergency responses where gaining access to elevated areas is crucial. The terms ladder truck and aerial apparatus are often interchangeably used, but they encompass a range of vehicle types that vary in their configuration, ladder length, and purpose. This article delves into what defines a fire truck with a ladder, the different types available, and the key features that make these vehicles essential in firefighting.

Defining the Ladder Truck

Ladder trucks are a subcategory of fire apparatus that are equipped with ladders to reach high places. They typically include an extendable ladder that can be raised, lowered, or rotated. This feature is crucial for reaching windows, roofs, and upper floors of buildings to rescue trapped occupants, ventilate structures, and provide elevated streams of water during firefighting operations.
Ladder trucks can vary significantly in their design and capabilities. For instance, some ladder trucks are equipped with a turntable, which allows the ladder to rotate 360 degrees. This makes it easier to position the ladder and gain access to multiple sides of a structure without having to reposition the entire vehicle. These vehicles are often called turntable ladders.
Another common type is the platform truck, which has a basket or platform at the end of the ladder. This provides a safer and more stable working area for firefighters, allowing them to perform rescues or operate water nozzles from an elevated position.
ISUZU 30M Ladder Fire Truck (2)

Types of Ladder Trucks

Several different types of ladder trucks are used based on the needs of the fire department and the situations they are expected to encounter. The most common types include:
1. Straight Ladder Truck: This is a basic form of a ladder truck that consists of an extendable ladder mounted on a truck chassis. It lacks a platform at the end of the ladder, which makes it lighter and more maneuverable. These are often used in urban settings where the need to reach higher levels of buildings is common.
2. Tower Ladder (Platform Truck): Tower ladders come equipped with a bucket or platform at the end of the ladder. This bucket can hold multiple firefighters and is used to access windows, and rooftops, or to create a stable working area at height. Tower ladders provide more safety and flexibility, especially for rescues and when operating equipment at high elevations.
3. Quint (Quintuple Combination Pumper): A quint serves five major functions—it has a pump, water tank, fire hose, aerial ladder, and ground ladders. This makes it a hybrid between a standard fire engine and a ladder truck, providing versatility in smaller fire departments that might need a single vehicle to perform multiple tasks.
4. Tiller Truck (Tractor-Drawn Aerial): Tiller trucks have a unique design where the ladder is mounted on a trailer that is pulled by a separate cab unit. This setup allows for enhanced maneuverability in tight spaces since both the cab and the trailer can be independently steered. Tiller trucks are often used in dense urban environments where navigating narrow streets and making tight turns are necessary.
5. Articulating Boom Ladder (Snorkel Truck): Articulating boom ladders feature multiple sections connected by joints, allowing them to bend or articulate. This design is advantageous for reaching areas that are not accessible with a straight ladder. These trucks are often used for rescues and situations requiring elevated water streams in confined spaces.

Key Components of a Ladder Truck

Ladder trucks are equipped with various components that make them uniquely suited for their roles in firefighting and rescue. The main features of a ladder truck include:
1. Aerial Ladder: The ladder is the defining feature of a ladder truck. It can extend vertically and horizontally to reach different levels of a building. Some ladders have additional features such as built-in water nozzles, lighting, and tool storage.
2. Turntable: The turntable is a rotating platform that allows the ladder to swivel 360 degrees. This is essential for positioning the ladder precisely and for reaching multiple areas without having to move the entire vehicle.
3. Outriggers: Outriggers are stabilizing legs that extend from the sides of the ladder truck to provide stability when the ladder is in use. They prevent the truck from tipping over and ensure that the ladder can safely support the weight of firefighters and equipment.
4. Waterway and Nozzles: Many ladder trucks have integrated water pipes and nozzles that allow them to direct water streams from the top of the ladder. This capability is crucial for reaching fires on upper floors or for providing an elevated master stream during fire suppression.
5. Cab and Crew Area: Ladder trucks are often larger than standard fire engines, allowing them to accommodate more personnel and equipment. The cab area includes seating for firefighters, controls for the aerial apparatus, and storage for firefighting gear.
ISUZU 30M Ladder Fire Truck (3)

Uses and Applications

Ladder trucks are invaluable in a variety of firefighting and rescue scenarios. Their primary function is to provide access to elevated areas, but they are also used for several other purposes:
– Rescue Operations: Ladder trucks are used to reach and rescue people trapped on the upper floors of buildings or rooftops. The ladder or platform allows for safe evacuation and the ability to reach windows or balconies.
– Ventilation: Proper ventilation is crucial in firefighting to release hot gases and smoke from a burning building. Ladder trucks are used to break windows or cut holes in the roof to improve ventilation, making it safer for interior crews to operate.
– Elevated Fire Attack: When fires are located above ground level, ladder trucks provide a way to deliver water from an elevated position. This is especially useful in buildings with multiple floors or industrial settings.
– Aerial Observation and Lighting: Ladder trucks can also be used to provide a vantage point for incident command. The elevated position allows for better visibility of the scene. Many ladder trucks are equipped with lights to illuminate large areas during nighttime operations.

Conclusion

A fire truck with a ladder is generally known as a ladder truck or aerial apparatus, though there are several different types and configurations designed for specific roles in firefighting and rescue. From straight ladder trucks to articulating boom ladders, each type is built to support fire departments in handling various emergencies. The versatility, reach, and advanced features of ladder trucks make them indispensable tools for ensuring the safety and effectiveness of firefighting operations.
ISUZU 30M Ladder Fire Truck (4)
