BRIEF
The SITRAK 32M aerial platform fire truck, crafted by CSCTRUCK Fire Rescue Truck, is designed for reliable and efficient firefighting operations. Built on a durable Sinotruk SITRAK chassis with a 4×2 drive configuration, this fire truck combines strength and agility, making it ideal for urban firefighting scenarios. With a maximum load capacity of 20,000 kilograms, it can carry essential firefighting equipment and personnel, reaching speeds of up to 90 km/h.

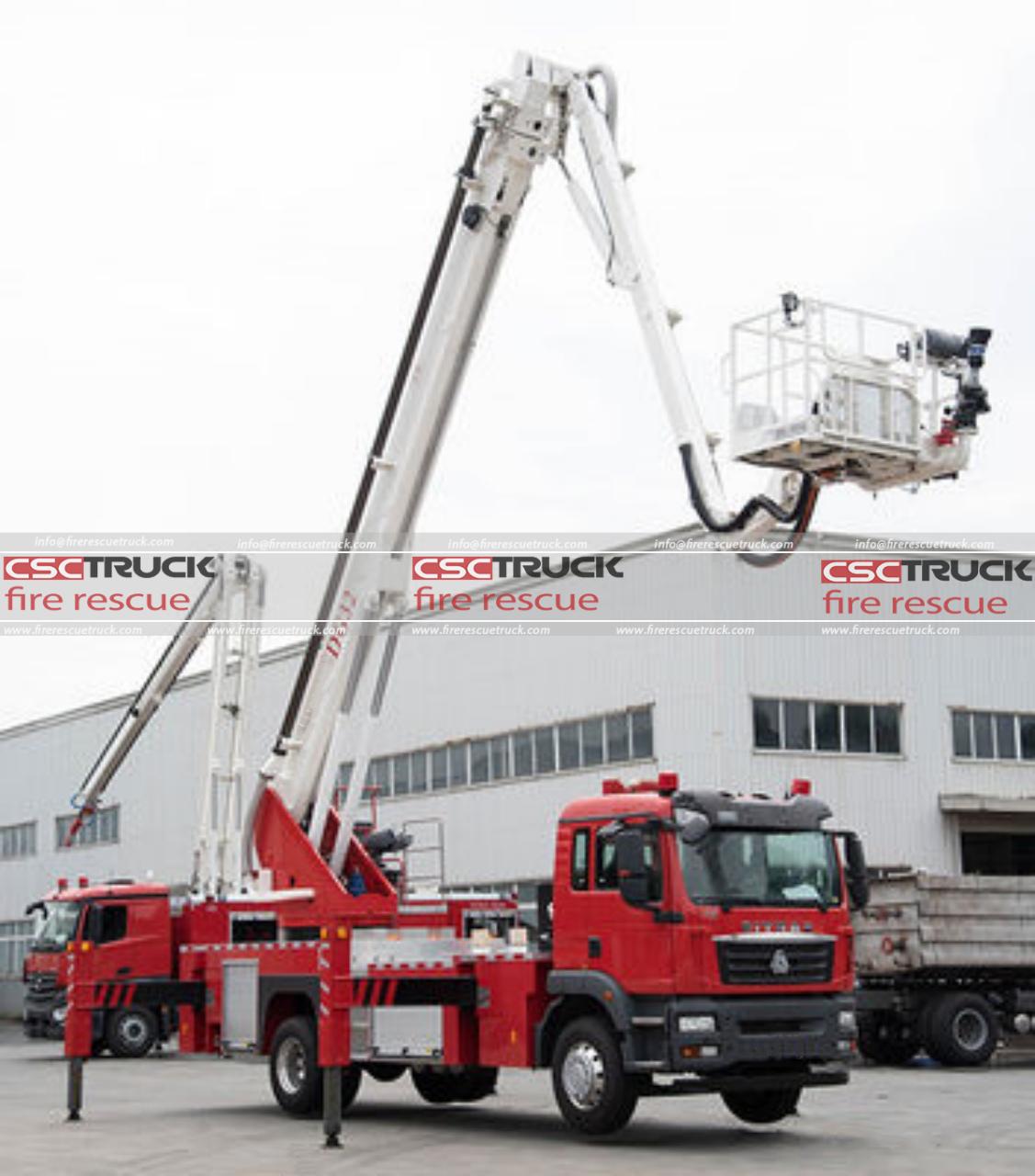

One of the standout features of this model is its aerial platform, which extends up to 32 meters, allowing firefighters to access high-rise buildings with ease. This high reach enables effective fire control and rescue operations in multi-story structures. The fire truck is equipped with a powerful fire monitor that delivers an impressive flow rate of 80 liters per second, ensuring a continuous and robust water supply during firefighting efforts. The water jet can reach distances exceeding 70 meters, making it suitable for tackling fires from a safe distance.
Additionally, the SITRAK 32M fire truck features a corrosion-resistant PP composite material tank, ensuring durability and longevity. This advanced material choice minimizes maintenance needs while ensuring the tank remains in excellent condition under challenging operational environments. Altogether, the SITRAK 32M aerial platform fire truck offers a well-balanced combination of performance, safety, and dependability, providing firefighters with the essential tools to manage emergencies effectively.
FEATURES
1. High Aerial Reach: Equipped with a 32-meter aerial platform, allowing firefighters to reach high elevations, suitable for high-rise rescue and firefighting.
2. Powerful Fire Monitor: Features an 80 liters per second(L/s) fire monitor with a water shoot range exceeding 70 meters, ensuring effective fire suppression from a safe distance.
3. Robust Chassis and Drive: Built on a Sinotruk SITRAK chassis with a 4×2 drive type, providing reliable maneuverability and stability for urban firefighting operations.
4. Heavy Load Capacity: Designed with a full loading weight of 20,000 kg, allowing it to carry essential firefighting equipment, water, and foam necessary for various emergency situations.
5. Durable Water Tank: Includes a tank made from PP (polypropylene) composite material, offering durability, corrosion resistance, and a lightweight structure for efficient firefighting operations.
SPECIFICATION
No. | Main Items | Technical Parameters |
1.1 | Model | CSCAPFT032 |
1.2 | Overall Dimensions(LxWxH) | 11,500×2,500×3,900mm |
1.3 | Full Load Weight | 20,000kgs |
1.4 | Number of the Crew | 2(include driver) |
1.5 | Max. Speed | 90km/h |
1.6 | Capacity | Optional |
1.7 | Fire pump flow rate | Optional |
1.8 | Fire monitor | 80L/s flow rate, 70m shoot range |
1.9 | Max. working height | 32m |
2. Chassis
No. | Main Items | Technical Parameters |
2.1 | Manufacturer | SINOTRUK |
2.2 | Model | Optional |
2.3 | Drive Type | 4X2 |
2.4 | Wheelbase | Optional |
2.5 | Engine model | Optional (using German MAN engine technology) |
2.6 | Engine type | Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
2.7 | Rated power | 203kW |
2.8 | Gearbox form | Manual gearbox, 9 forward gears + 1 reverse gear |
2.9 | PTO | Full power sandwich type, with an additional cooling device |
2.10 | Fuel tank capacity | 200L aluminum alloy round fuel tank |
3. Superstructure of the Aerial Fire Truck
3.1 Cabin
- Structure: Single row cabin with 2 doors.
- Seats: 1+1, with a 3-point safety belt.
3.2 Standardized Sub-frame
- Material: High-strength rectangular tube made of special steel.
- Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.
3.3 Compartment
- Material: High-strength aluminum alloy profiles (Never Rust).
- Structure: Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear.
3.4 Roller Shutter Door
- Material: Aluminum alloy profiles with anodized surface.
- Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, 2-point fixed seat, LED light, and sensors.
3.5 Foot Pedals
- Material: High-quality aluminum alloy.
- Structure: 50cm width, bearing more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment.
3.6 Superstructure Electric Appliance
- Warning Light and Siren: 2 warning lights and a siren are mounted above the cabin. The controller is installed in the driver’s cabin.
- Strobe Light: Mounted on both sides of the compartment.
- External Lighting: LED lights are mounted on both sides of the compartment.
- Roof Lighting: LED lights are mounted on the inside of the roof.
- Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.
