BRIEF

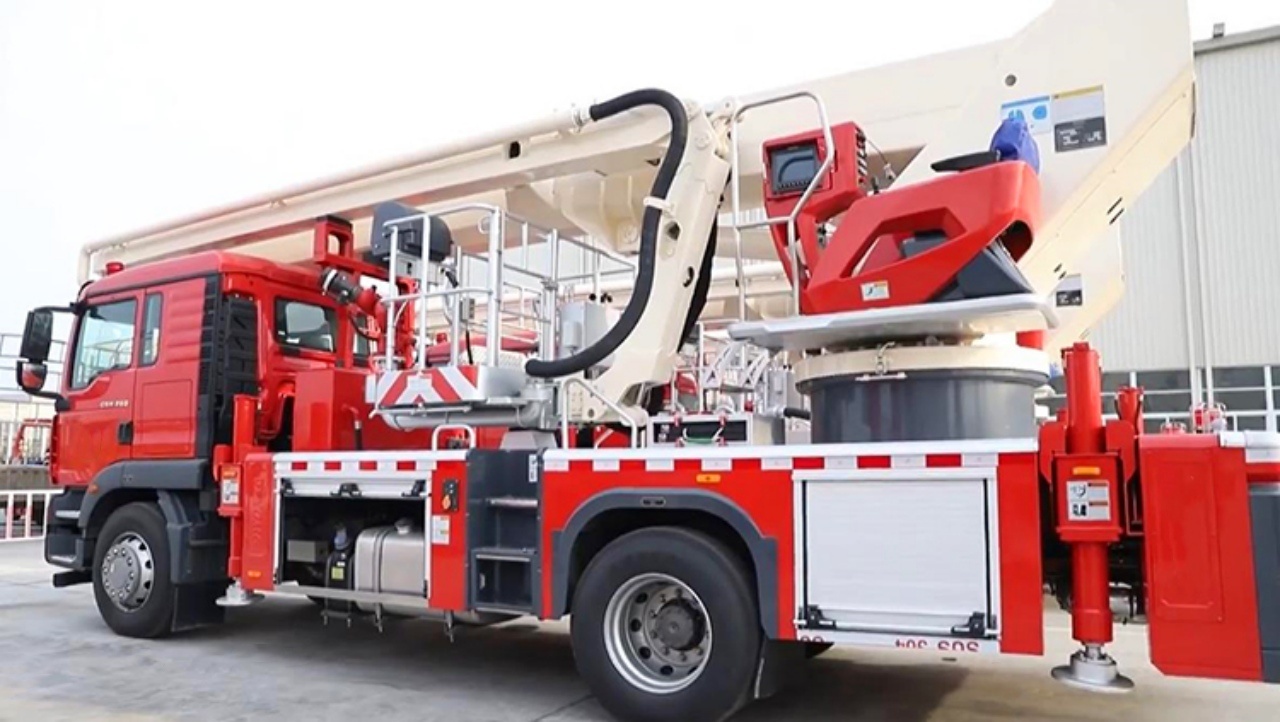

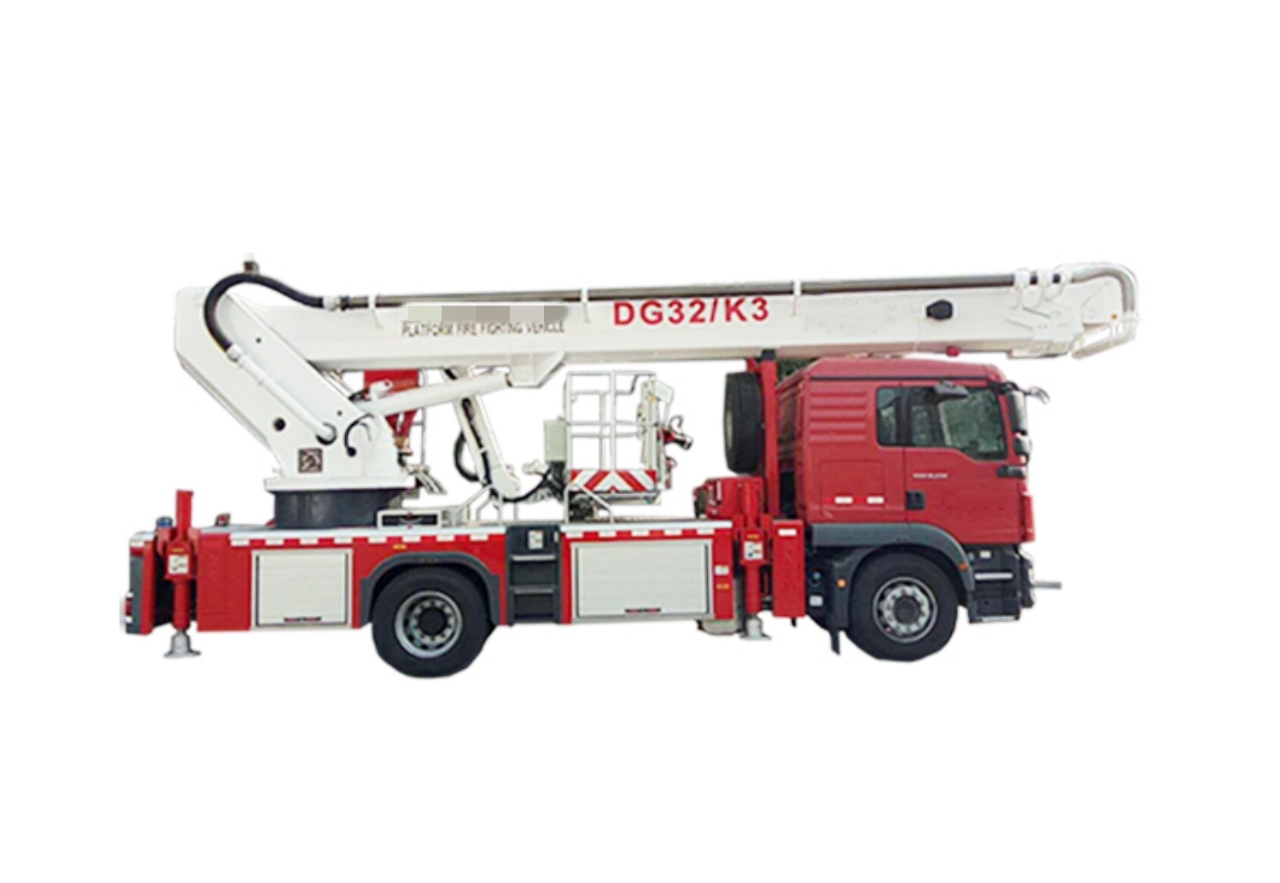

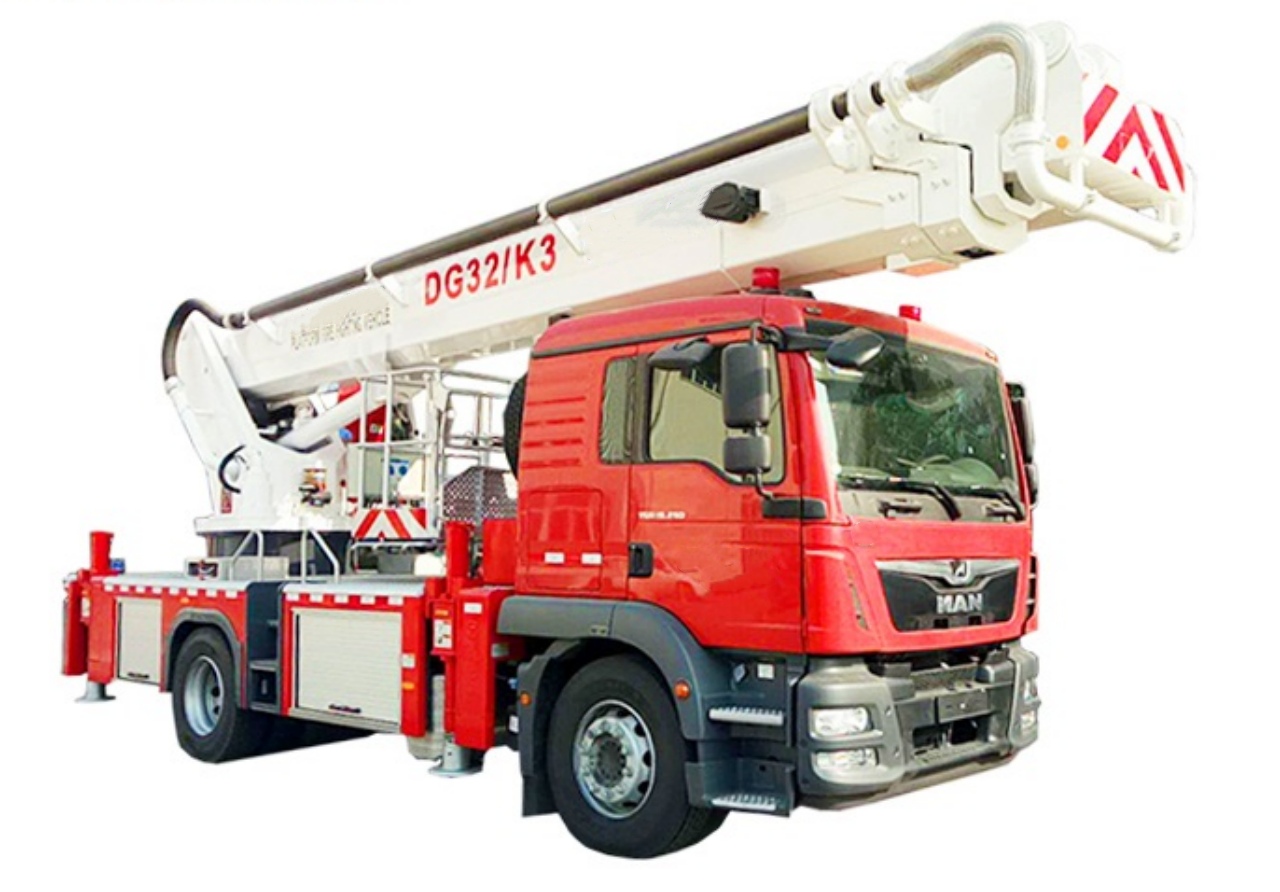

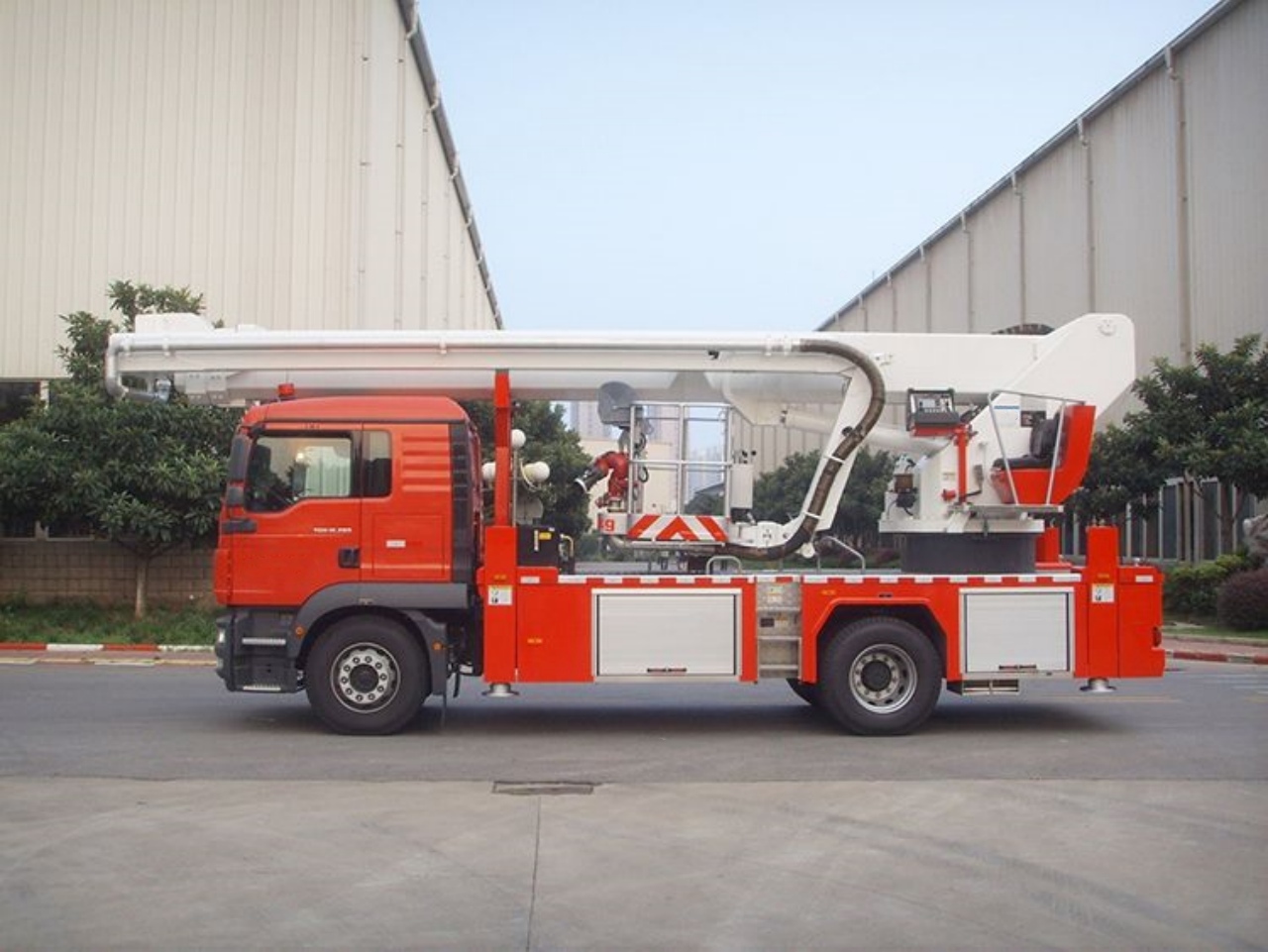

The MAN 32M aerial platform fire truck, manufactured by CSCTRUCK Fire Rescue Truck, is a sophisticated vehicle designed to meet the demanding requirements of firefighting and rescue operations. With a maximum working height of 32 meters and an impressive maximum operating radius of 18-20 meters, this truck enables firefighters to access elevated locations swiftly and effectively.

Equipped with a sturdy MAN chassis and a 4X2 drive type, the truck combines reliability with maneuverability, essential for navigating urban and suburban environments. Its engine boasts a power range of 251-350 horsepower, ensuring ample performance to support firefighting tasks efficiently.

In compliance with EURO V emission standards, the MAN 32M minimizes environmental impact while delivering powerful performance. It can achieve speeds exceeding 90 km/h, allowing rapid response to emergencies across various terrains.

The truck features a platform capable of supporting up to 500 kg, providing a stable and secure base for firefighting personnel during operations at height. For firefighting capabilities, it is equipped with a water monitor that delivers a rated flow of over 80 liters per second and reaches distances of more than 80 meters, enabling effective firefighting even in challenging conditions.

Overall, the MAN 32M aerial platform fire truck by CSCTRUCK Fire Rescue Truck represents a fusion of advanced engineering and firefighting expertise. It stands as a crucial asset in modern firefighting fleets, enhancing operational capabilities and ensuring the safety and efficiency of firefighting and rescue missions.

FEATURES

1. High Aerial Performance:
   • Maximum Working Height: 32 meters.
   • Maximum Operating Radius: 18-20 meters.
2. Robust Load Capacity:
   • Platform Rated Load: 500 kg, suitable for rescue operations with multiple personnel or heavy equipment.
3. Powerful and Efficient Chassis:
   • Built on a MAN chassis with a 4X2 drive type, delivering a 251-350 hp engine and compliant with the EURO V emission standard.
4. Enhanced Firefighting Capability:
   • Equipped with a water monitor rated at >80 L/s flow and a reach of >80 meters, enabling efficient firefighting at height and distance.
5. High Mobility and Speed:
   • Capable of achieving a maximum speed of over 90 km/h, ensuring rapid response to emergencies.

SPECIFICATION
