BRIEF

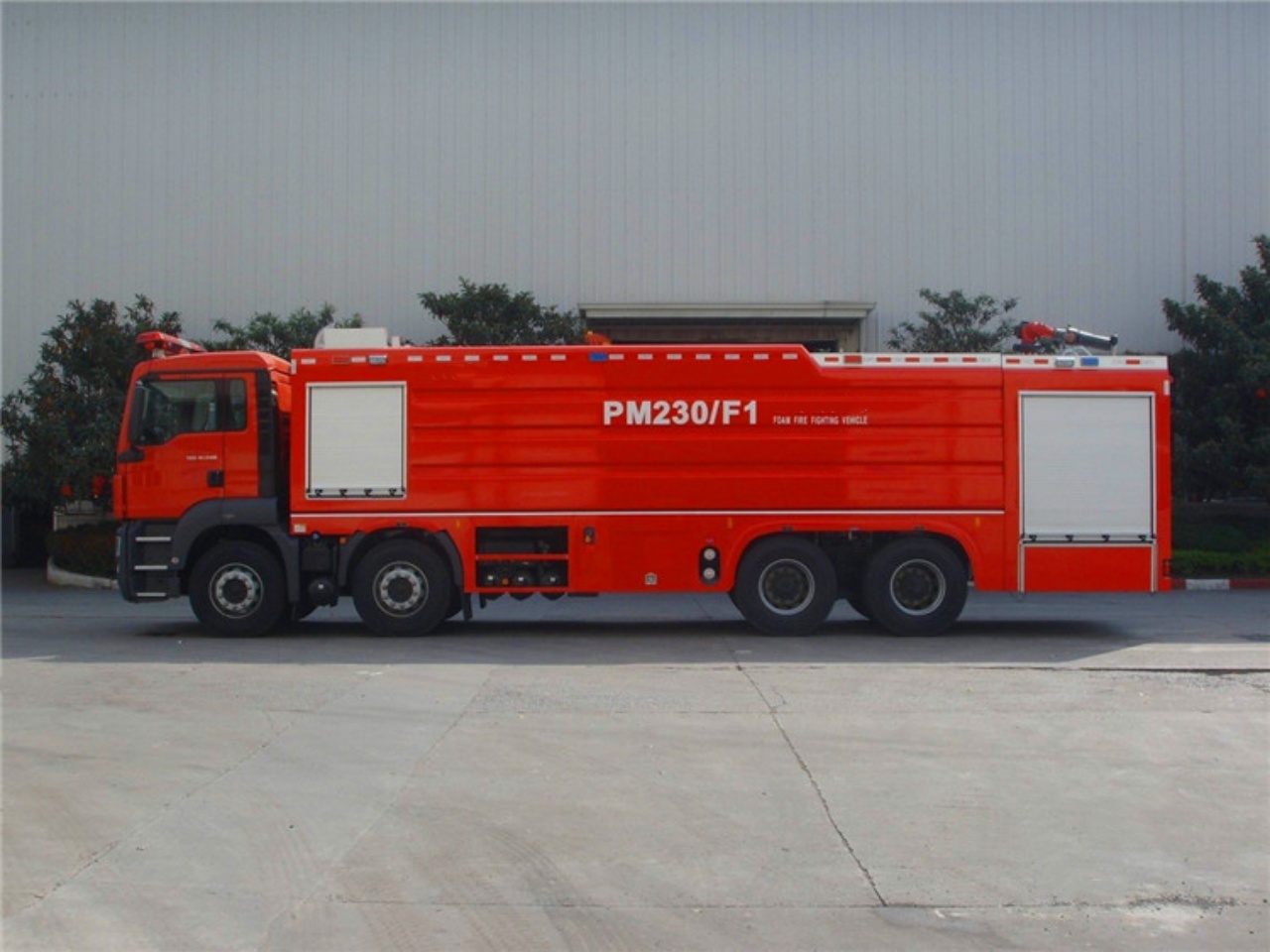

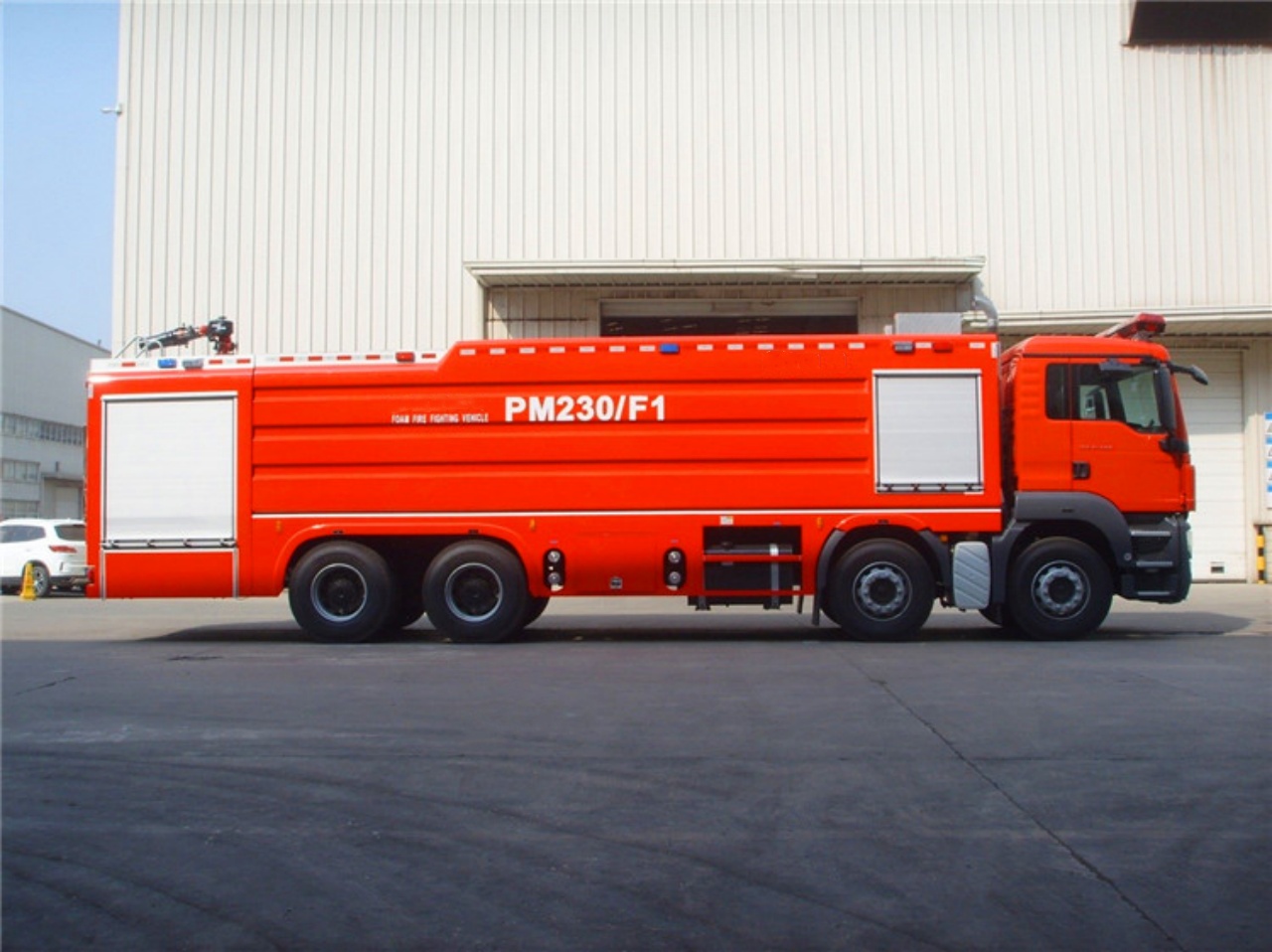

The MAN 23Ton foam fire engine by CSCTRUCK Fire Rescue Truck represents a pinnacle in modern firefighting technology and engineering. Built on the robust MAN/TGS 41.540 chassis with an 8×4 drive type, this vehicle is designed for exceptional maneuverability and reliability during critical emergency responses. Its impressive 397 kW engine power delivers remarkable performance and adheres to the stringent EURO V emission standards, ensuring environmental considerations are met without compromising operational capability.

The engine is equipped with a massive dual-capacity tank system holding 18,500 Kg of water and 4,100 Kg of foam, capable of tackling large-scale fire incidents. The high-capacity water and foam storage enables a versatile response to both conventional fires and those requiring specialized foam suppression techniques. This robust capacity is further enhanced by a pump system rated at a flow of at least 150 L/s and a pressure of 1.0 MPa, which ensures a consistent and forceful discharge of firefighting agents.

The foam fire engine’s full loading weight of 39,700 Kg is a testament to its substantial build quality, offering stability even under strenuous operational conditions. With a maximum driving speed of no less than 85 km/h, rapid response times are achievable, which is critical in emergency situations where every second counts. Additional features include a water absorption depth of up to 7 m and a diversion time of 100 seconds or less, ensuring the engine can adapt quickly to changing firefighting scenarios.

Furthermore, the integrated monitor system, boasting a flow rate of at least 150 L/s, a pressure of 0.85 MPa, and a firing range of 90 m or more, provides precision in the application of water and foam. This comprehensive suite of advanced features makes the MAN 23Ton foam fire engine an indispensable asset for modern fire rescue operations, combining power, efficiency, and environmental responsibility in 1 superior firefighting platform.

FEATURES

1. High-Capacity Firefighting Resources
   • Water & Foam Tanks: Equipped with an 18,500 kg water tank and a 4,100 kg foam tank, this engine can carry ample extinguishing agents to tackle large-scale fires.
2. Robust Chassis and Drive Configuration
   • Chassis & Drive: Built on a MAN/TGS 41.540 chassis with an 8×4 drive type, the engine is designed for stability and off-road performance, ensuring it can navigate challenging terrains during emergency responses.
3. Powerful Performance and Speed
   • Engine & Speed: With a powerful 397 kW engine conforming to the EURO V emission standard, it achieves a maximum driving speed of ≥85 km/h while carrying a full load of up to 39,700 kg, combining heavy-duty capability with swift mobility.
4. Advanced Pumping Capabilities
   • Pump Performance: The integrated pump delivers a rated flow of ≥150 L/s at 1.0 MPa pressure, and the water monitor matches this flow with a pressure of 0.85 MPa, boasting a firing range of ≥90 m. This ensures effective and far-reaching water delivery during firefighting operations.
5. Rapid Deployment and Operational Efficiency
   • Response Features: With a diversion time of ≤100 s and a water absorption capability of up to 7m depth, the engine is engineered for quick response and efficient operation in various emergency scenarios.

SPECIFICATION
