BRIEF

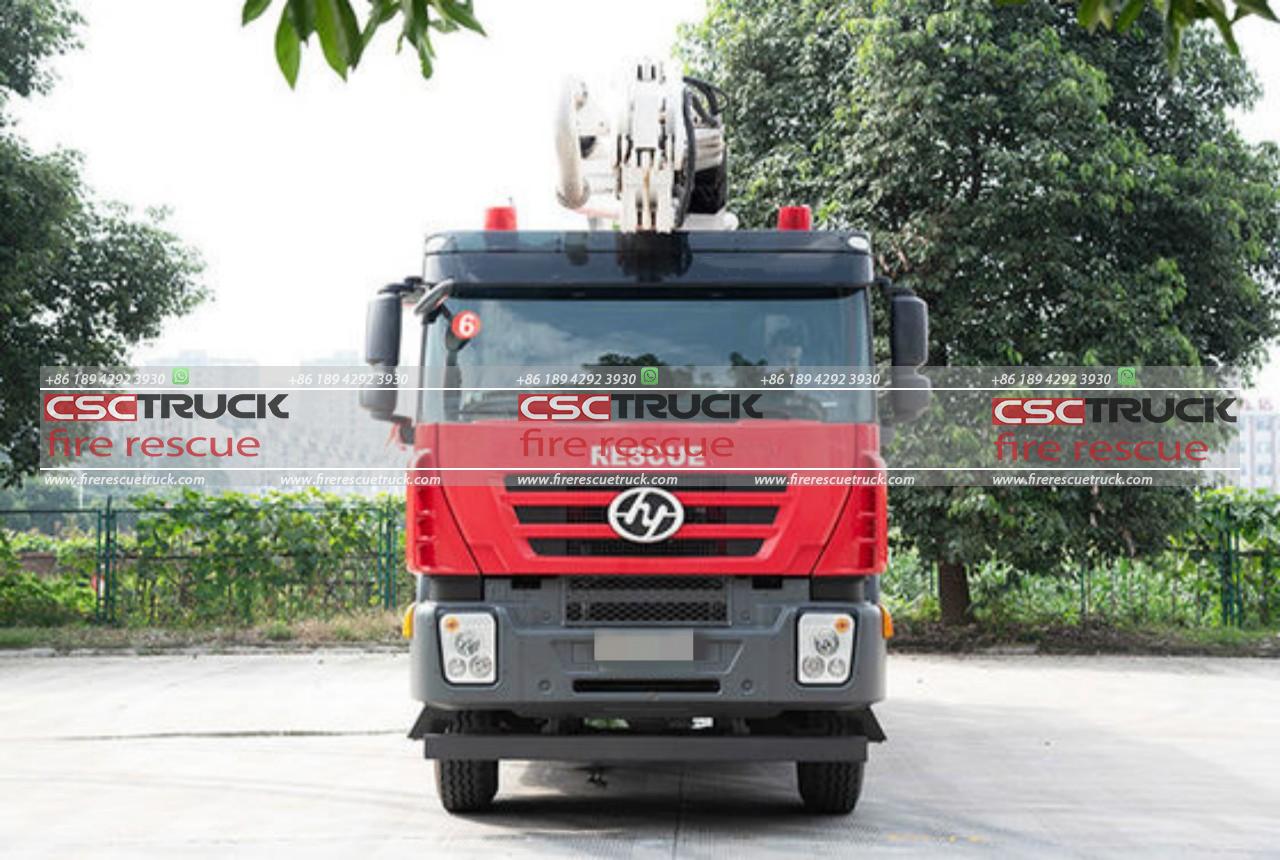

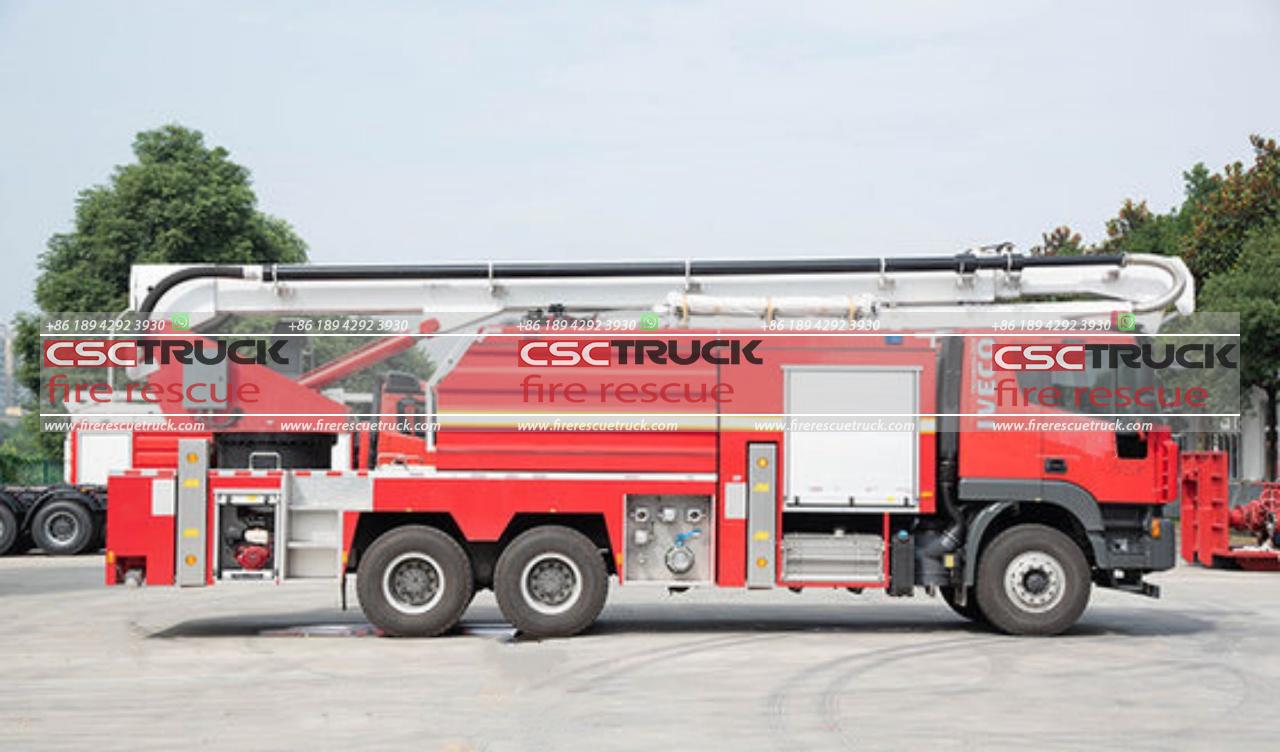

The IVECO 32M foam tower fire truck, produced by CSCTRUCK Fire Rescue Truck, is a high-capacity, specialized vehicle designed for complex firefighting and rescue operations. With a maximum working height of 32 meters, this fire truck is well-suited for high-rise firefighting tasks. It features a substantial 3,500-liter water tank and a 2,500-liter foam tank, providing ample firefighting resources for prolonged interventions.
The IVECO 32M foam tower fire truck is built on the robust SAIC-IVECO HONGYAN 6×4 chassis, delivering a high level of stability and reliability in challenging environments. With a full load weight of 29,450 kg, this truck combines power and mobility, reaching a maximum speed of 90 km/h. Its 287-kilowatt engine provides the necessary power for both rapid deployment and efficient operation on the field.
Equipped with an advanced fire pump, the fire truck boasts a flow rate of 100 liters per second at 10 bars of pressure, ensuring a steady and powerful water supply. Additionally, its fire monitor, with a flow rate of 5,700 liters per minute and a shooting range of over 70 meters, enables firefighters to target distant flames effectively. The use of PP (polypropylene) composite materials for the tank enhances durability, making it resistant to corrosion and impact damage, which is essential in intense firefighting environments. This IVECO fire truck is an ideal solution for demanding urban and industrial fire emergencies, combining power, reach, and resilience.
FEATURES
1. High-Performance Fire Pump and Monitor: Equipped with a fire pump that provides a flow rate of 100L/s at 10 bar and a powerful fire monitor capable of delivering 5,700L/min with a shooting range of at least 70meters, ideal for effective firefighting from a distance.
2. Large Water and Foam Capacity: The truck features a 3,500L water tank and a 2,500L foam tank, made from durable PP composite material, allowing for extended firefighting operations with a mix of water and foam agents.
3. Impressive Working Height: With a maximum working height of 32 meters, this foam tower can reach upper floors and tall structures, making it suitable for tackling fires in high-rise buildings and industrial settings.
4. Robust Chassis and Drive Type: Built on an SAIC-IVECO HONGYAN chassis with a 6×4 drive type, this truck offers durability and stability, capable of handling the demanding terrains typically encountered during rescue operations.
5. Powerful Engine and High Load Capacity: The vehicle has a 287kW engine that enables it to reach a maximum speed of 90 km/h. With a full load weight of 29,450 kg, it is designed to carry all necessary firefighting equipment while maintaining optimal performance on the road.
SPECIFICATION
| No. | Main Items | Technical Parameters |
| 1 | Model | CSCFTFT032 |
| 2 | Overall Dimensions(LxWxH) | 10,750×2,530×4,000mm |
| 3 | Full Load Weight | 29,450 Kg |
| 4 | Number of the Crew | 2(including driver) |
| 5 | Max. Speed | 90km/h |
| 6 | Capacity | 3,500L Water & 2,500L Foam. PP composite material liquid tank. |
| 7 | Fire pump flow rate | 100L/s@10bar |
| 8 | Fire monitor | 5700L/min. flow rate (adjustable), 70m shoot range. |
| 9 | Max. working height | 32 meters |
Chassis of The Fire Truck
1 Brand: SAIC-IVECO HONGYAN
2 Model: Optional
3 Drive Type: 6×4
4 Wheelbase: 5,000mm+1,400mm
5 Engine model: Optional
6 Engine type: Inline 6-cylinder, turbocharged, inter-cooled diesel engine
7 Engine Power: 287kW
8 Gearbox type: Manual gearbox
9 PTO: Full power sandwich type
10 Fuel tank capacity: 200 Liters
Aluminum Superstructure/Upper body
| No. | Main Items | Main Technical Parameters |
| 1 | Standardized Sub-frame | |
| 1.1 | Material | High-strength rectangular tube made of special steel |
| 1.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats. |
| 2 | Aluminum Compartment | |
| 2.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 2.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 3 | Aluminum Roller Shutter Door | |
| 3.1 | Material | Aluminum alloy profiles with anodized surface |
| 3.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 4 | Aluminum Foot Pedals | |
| 4.1 | Material | High-quality aluminum alloy |
| 4.2 | Structure | 50cm width, bears more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment. |
| 5 | Upperbody Electric Appliance | |
| 5.1 | Warning Light and Siren | 2 warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 5.2 | Strobe Lights | Mounted on both sides of the compartment |
| 5.3 | External Lighting | LED lights are mounted on both sides of the compartment |
| 5.4 | Roof Lighting | LED lights are mounted on the inside of the roof |
| 5.5 | Side Indicator Lights | The inline yellow warning light is mounted on the side of the compartment and the pedals. |
Water Pump / Fire Monitor / Liquid Tank
1 Water Pump
- Flow Rate: 100L/[email protected]
- Vacuum Pump: Electric
- Priming Type: Automatic
- Suction Height: 7 meters
- Priming Time: ≤80 seconds
- Location: In the Rear Pump Room
2 Roof Fire Monitor on Boom
- Flow Rate: 950-5,700 L/min
- Shoot Range: Water ≥ 70 meters, Foam ≥ 60 meters
- Location: On the top of the boom
- Control Manner: Remote control
- Horizontal Rotation: 0°~355°
- Pitch Rotation: -45°~120°
3 Water and Foam Tanks
- Capacity: Water 3,500 Liters and Foam 2,500 Liters
- Materials: PP composite material and Never in Rust
- Structure: 2 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlet with Valve; 1 Water tank Drain Outlet with Valve.
