BRIEF

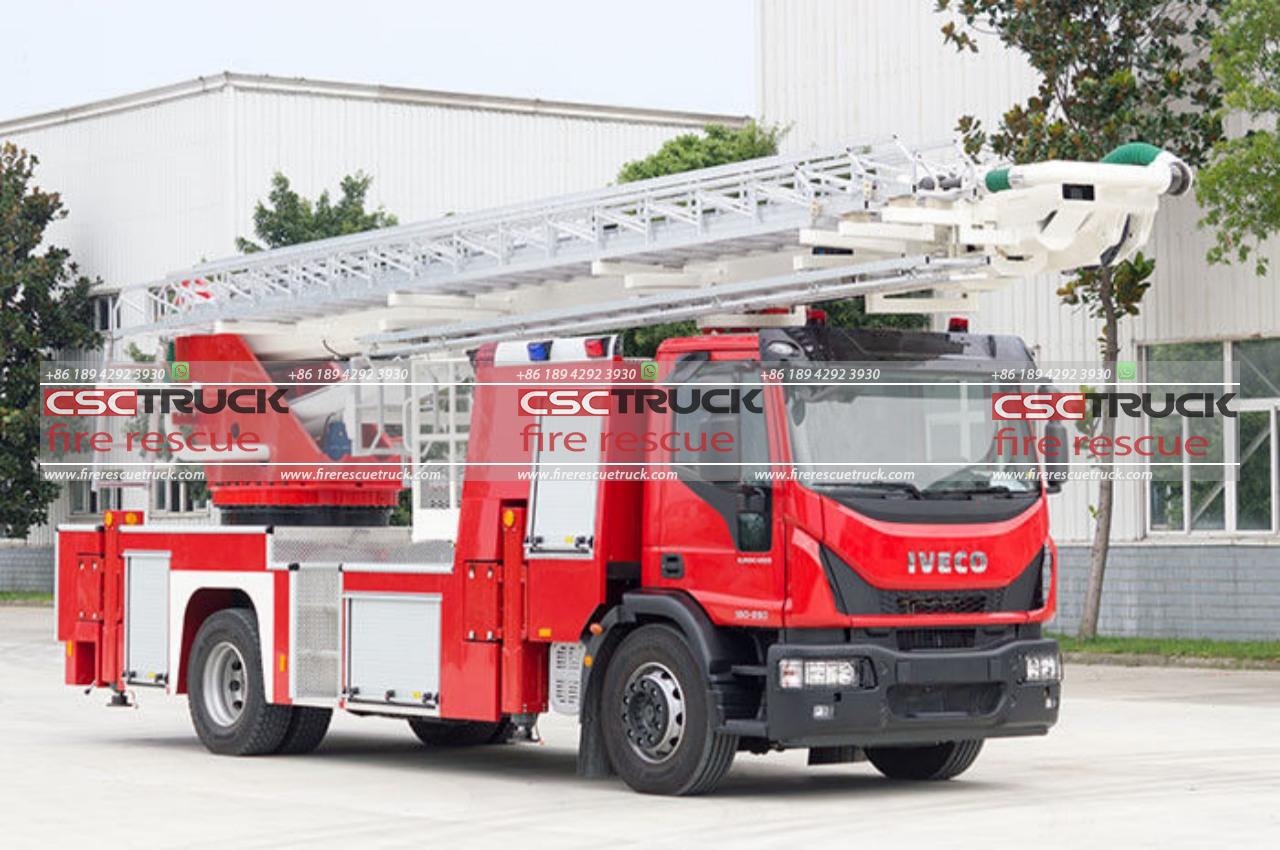

The IVECO 32M aerial platform fire truck by CSCTRUCK Fire Rescue Truck is a high-performance fire rescue vehicle designed for effective firefighting and rescue operations. Built on an IVECO chassis, this 4×2 drive-type truck offers reliable maneuverability and stability, even in challenging environments. With a full load weight of 18,000 kg and a maximum speed of 90 km/h, it balances strength and speed, allowing firefighters to respond quickly to emergency scenes.
One of the fire truck‘s standout features is its 32-meter maximum working height, providing a significant reach for accessing high-rise buildings or other elevated locations. Powered by a robust 206kW engine, the vehicle has ample power to handle both road travel and the demands of heavy equipment operation. Its aerial platform and fire monitor, which delivers an impressive flow rate of 80 liters per second with a shooting range of over 70 meters, are designed to tackle large fires from a safe distance.
The IVECO 32M aerial platform fire truck’s water tank is made from PP composite material, known for its durability and corrosion resistance, which ensures longevity and resilience against the harsh conditions often encountered in firefighting. This advanced design from CSCTRUCK Fire Rescue Truck combines reliability, power, and efficiency, making the IVECO 32M aerial platform an ideal choice for fire departments aiming to enhance their capabilities in urban and industrial firefighting and rescue missions.
FEATURES
1. High-Performance Aerial Platform: The fire truck offers a maximum working height of 32 meters, allowing firefighters to reach significant heights, making it suitable for high-rise fire and rescue operations.
2. Powerful Chassis and Drive: Built on a durable IVECO chassis with a 4×2 drive type, the truck combines stability and maneuverability, essential for navigating various terrains in emergencies.
3. Strong Engine Capability: Equipped with a 206kW engine, this fire truck delivers a maximum speed of 90km/h, ensuring quick response times to emergency sites.
4. Efficient Firefighting System: The truck’s fire monitor has an impressive flow rate of 80 liters per second and a shooting range of 70 meters or more, enabling effective fire suppression from a safe distance.
5. Durable Water Tank: The onboard water tank, made from PP composite material, is designed for durability and corrosion resistance, ideal for holding and transporting firefighting water securely.
SPECIFICATION
No. | Main Items | Technical Parameters |
2.1 | Model | CSCAPFT032 |
2.2 | Overall Dimensions(LxWxH) | 9,750×2,500×3,750mm |
2.3 | Full Load Weight | 18,000kgs |
2.4 | Number of the Crew | 2 (include driver) |
2.5 | Max. Speed | 90km/h |
2.6 | Capacity | Optional |
2.7 | Fire pump flow rate | Optional |
2.8 | Fire monitor | 80L/s flow rate and 70m shoot range |
2.9 | Max. working height | 32 meters |
IVECO Chassis
No. | Main Items | Technical Parameters |
3.1 | Manufacturer | IVECO |
3.2 | Model | Optional |
3.3 | Drive Type | 4×2 |
3.4 | Wheelbase | Optional |
3.5 | Engine model | Optional |
3.6 | Engine type | Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
3.7 | Rated power | 206kW |
3.8 | Gearbox form | Manual |
3.9 | PTO | Full power sandwich type |
3.10 | Fuel tank capacity | 200L aluminum fuel tank |
Aluminum Superstructure of the Aerial Fire Truck
1 Standardized Sub-frame
- Material: High-strength rectangular tube made of special steel.
- Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.
2 Compartment
- Material: High-strength aluminum alloy profiles (Never Rust).
- Structure: Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear.
3 Roller Shutter Door
- Material: Aluminum alloy profiles with anodized surface.
- Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light, and sensors.
4 Foot Pedals
- Material: High-quality aluminum alloy.
- Structure: 50cm width, bearing more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment.
5 Superstructure Electric Appliance
- Warning Light and Siren: 2 warning lights and a siren are mounted above the cabin. The controller is installed in the driver’s cabin.
- Strobe Light: Mounted on both sides of the compartment.
- External Lighting: LED lights are mounted on both sides of the compartment.
- Roof Lighting: LED lights are mounted on the inside of the roof.
- Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.
