BRIEF

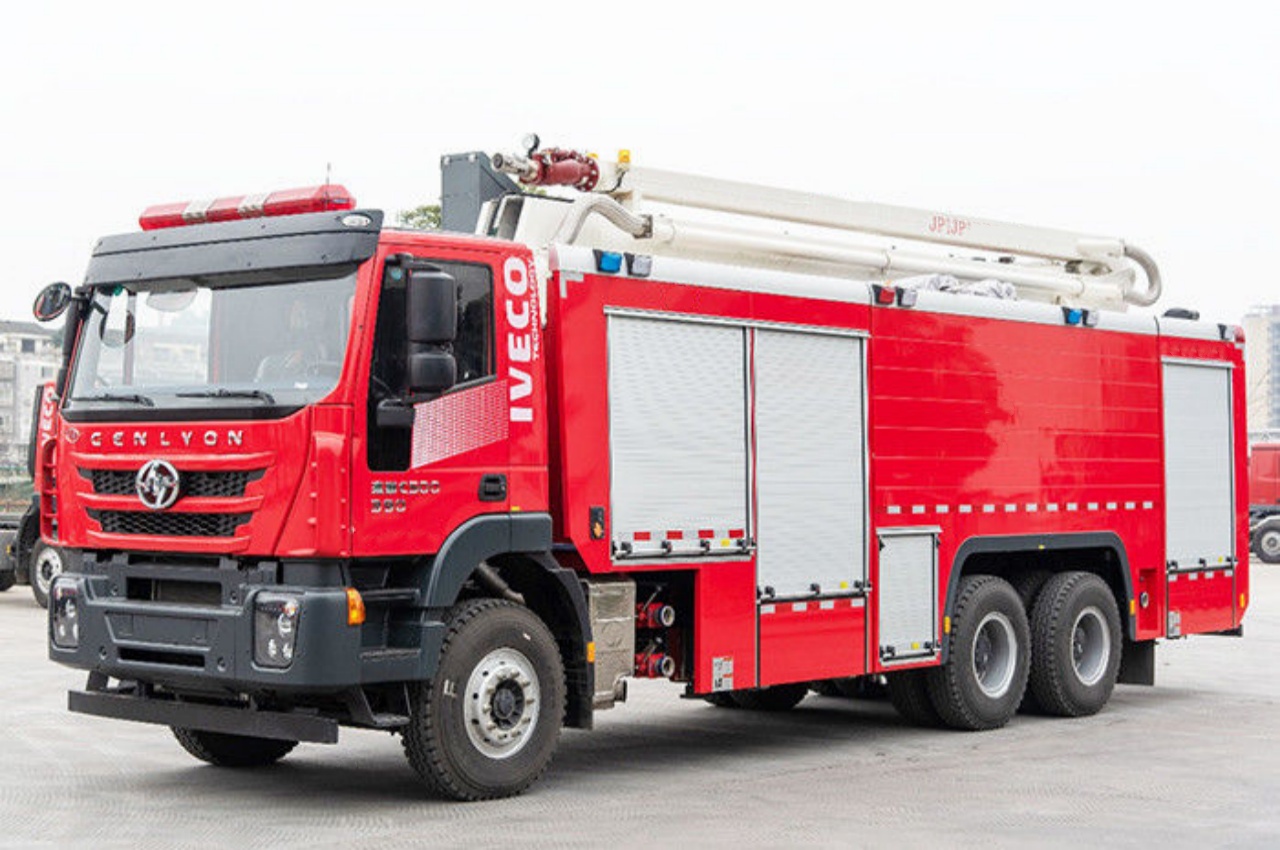

The IVECO 12,000-liter squirt fire truck by CSCTRUCK Fire Rescue Truck is a robust and high-performing emergency response vehicle. Built on the reliable SAIC-IVECO HONGYAN chassis, this 6×4 drive fire truck is engineered for maximum efficiency and durability in firefighting operations. It is equipped with a 287kW engine that provides ample power to achieve a top speed of 90km/h, ensuring quick response times.
The fire truck features a 10,000-liter water tank and a 2,000-liter foam tank, both constructed from durable PP composite material for longevity and corrosion resistance. Designed for heavy-duty performance, the truck boasts a maximum fully loaded weight of 31,800kg. Its firefighting capabilities are supported by a high-capacity fire pump with a 100L/s flow rate at 10 bar pressure and a 7-meter suction height, allowing it to draw water effectively from various sources.
A standout feature is the roof-mounted fire monitor, which offers adjustable flow rates ranging from 950 to 5,700 L/min. The water stream can reach distances of ≥70 meters, while foam extends up to ≥60 meters, enabling precise and powerful firefighting capabilities over large areas. This makes the truck particularly effective for combating industrial fires, wildfires, and urban emergencies.
Overall, the IVECO 12,000-liter squirt fire truck is a highly capable and versatile firefighting vehicle, blending powerful performance, innovative design, and advanced materials to meet the rigorous demands of modern firefighting and rescue operations.
FEATURES
- High Capacity Tanks: Equipped with a 10,000L water tank and a 2,000L foam tank, constructed from durable PP composite material for excellent corrosion resistance and longevity.
- Robust Performance: Powered by a 287kW engine on a SAIC-IVECO HONGYAN chassis with a 6×4 drive type, offering a maximum speed of 90 km/h and supporting a full loading weight of 31,800 kg.
- Advanced Fire Pump: Features a fire pump with a rated flow rate of 100L/s at 10 bar, capable of handling demanding firefighting tasks efficiently, and a suction height of 7 meters.
- Versatile Roof Fire Monitor: Adjustable flow rate ranging from 950L/min to 5,700L/min, with a shooting range of ≥70m for water and ≥60m for foam, providing superior coverage in firefighting scenarios.
- Specialized Design: Built with a focus on functionality and reliability, this fire truck ensures exceptional performance for firefighting and rescue operations in urban and industrial settings.
SPECIFICATION
The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model No. | CSCSFT012 |
| 1.2 | Overall Dimensions(LxWxH) | 10,740×2,500×3,860mm |
| 1.3 | Full Load Weight | 31,800kgs |
| 1.4 | Number of the Crew | 1+1(include driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 10,000L Water & 2,000L Foam. PP composite material liquid tank. |
| 1.7 | Fire pump flow rate | 100L/s@10bar |
| 1.8 | Fire monitor | 5,700L/min. flow rate, 70m shoot range. |
| 1.9 | Max. working height | 18m |
2. Chassis
3. Superstructure
| No. | Main Items | Technical Parameters |
| 3.1 | Standardized Sub-frame | |
| 3.1.1 | Material | High-strength rectangular tube made of special steel |
| 3.1.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats. |
| 3.2 | Compartment | |
| 3.2.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 3.2.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 3.3 | Roller Shutter Door | |
| 3.3.1 | Material | Aluminum alloy profiles with anodized surface |
| 3.3.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, LED light, and sensors. |
| 3.4 | Foot Pedals | |
| 3.4.1 | Material | High-quality aluminum alloy |
| 3.4.2 | Structure | 50cm width, bears more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment. |
| 3.5 | Superstructure Electric Appliance | |
| 3.5.1 | Warning Light and Siren | Long-row warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 3.5.2 | Strobe Light | Mounted on both sides of the compartment. |
| 3.5.3 | External Lighting | LED lights are mounted on both sides of the compartment. |
| 3.5.4 | Roof Lighting | LED lights are mounted on the inside of the roof. |
| 3.5.5 | Side Indicator Light | The inline yellow warning light is mounted on the side of the compartment and pedals. |
4. Fire Fighting System
- Rated Flow Rate: 100L/s@10bar.
- Vacuum Pump: Electric vacuum pump.
- Priming Manner: Automatic.
- Suction Height: 7m.
- Priming Time: ≤80s.
- Location: Rear-mounted.
- Flow Rate: 950-5,700L/min.
- Shoot Range: Water ≥ 70m, Foam ≥ 60m.
- Location: On the top of the boom.
- Control Manner: Remote control.
- Horizontal Rotation Angle: 0°~355°.
- Pitch Rotation Angle: -45°~120°.
- Capacity: Water 10,000 Liters + Foam 2,000 Liters.
- Material: PP composite material and Never Rust.
- Structure: 2 Tank Manholes; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlet with Valves; 1 Water tank Drain Outlet with Valves.
