BRIEF

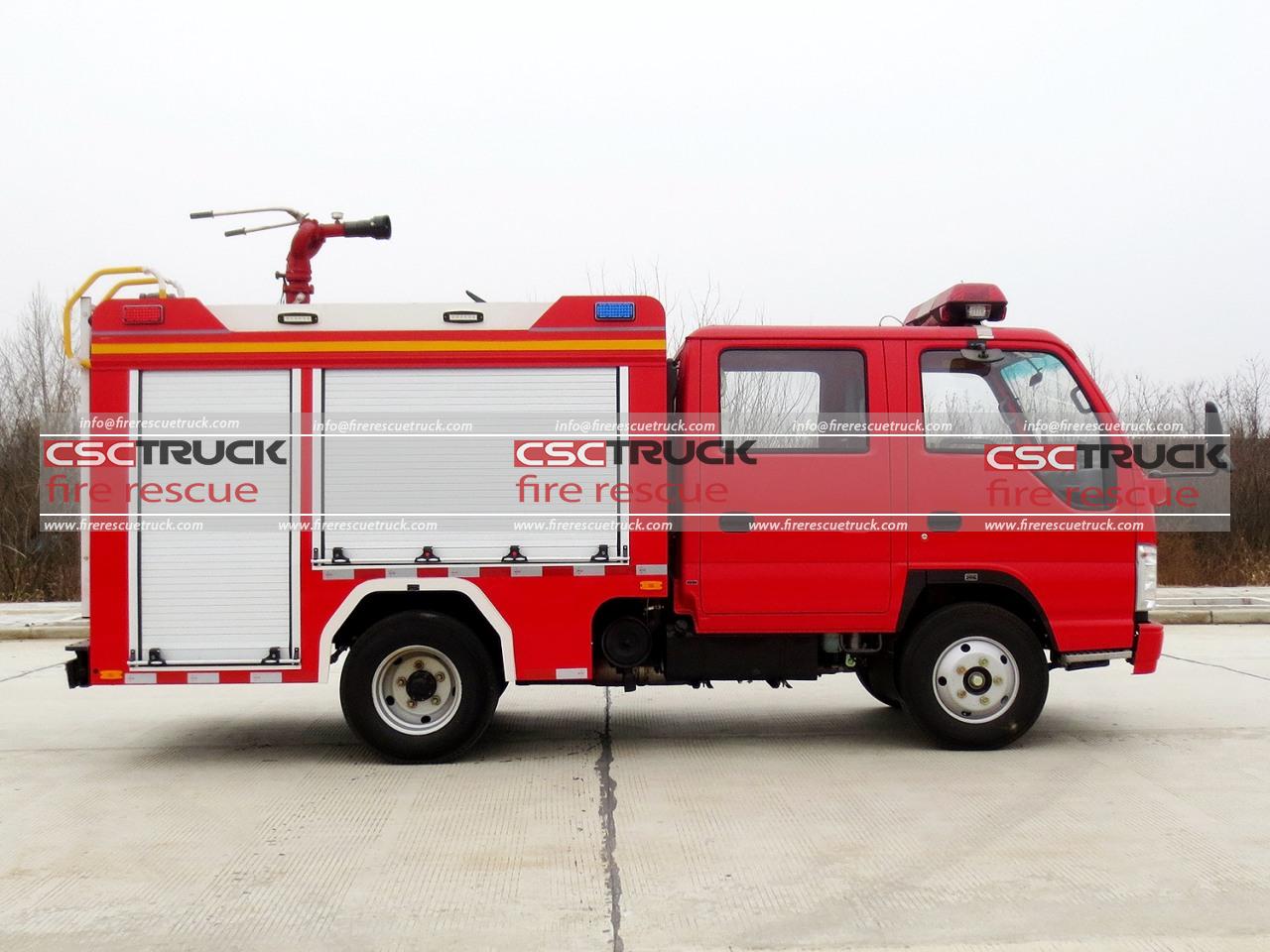

The ISUZU ELF 2CBM water tender fire truck produced by CSCTRUCK Fire Rescue Truck is a compact yet highly efficient firefighting vehicle designed for rapid emergency response, especially in urban areas, small communities, industrial zones, and narrow road environments. Built on the durable ISUZU ELF chassis, this tanker fire truck combines reliability, agility, and superior performance in demanding firefighting operations.
Equipped with a 1.5 CBM water tank, the truck provides sufficient water storage for initial firefighting response or small-scale fire suppression tasks. It adopts a 4×2 drive type for stable and efficient road handling, ensuring easy maneuverability even in tight spaces. Powering the vehicle is the robust ISUZU 4KH1CN6LB engine, producing 88 kW (120 HP), which enables the truck to reach a maximum speed of 95 km/h, ensuring a quick arrival at emergency scenes. Complying with the EURO VI emission standard, it delivers high performance with low emissions, making it environmentally friendly and compliant with modern regulations.
The fire truck is fitted with a CB10/30 fire pump and a PS30 fire monitor, providing a fire flow rate of 30 L/s and a fire range of at least 55 meters. This configuration ensures powerful water delivery and effective fire suppression over a wide area. The system is designed for ease of operation and reliability under pressure, supporting firefighters in rapid deployment and efficient firefighting efforts.
Overall, the ISUZU ELF 2CBM water tender fire truck from CSCTRUCK Fire Rescue Truck is a well-balanced firefighting solution that offers exceptional performance, quick response capabilities, and environmental efficiency—making it an ideal choice for both municipal fire departments and industrial emergency services.
FEATURES
- High-Performance Engine:
Powered by the ISUZU 4KH1CN6LB engine with an output of 88kW (120HP), the truck delivers reliable performance and efficiency. It meets the EURO VI emission standard, ensuring eco-friendly operation with reduced emissions. - Efficient Firefighting System:
Equipped with a CB10/30 fire pump and a PS30 fire monitor, the truck provides a strong firefighting capability. It delivers a fire flow rate of 30 liters per second with a powerful spray range of ≥55 meters, suitable for rapid fire suppression. - Durable and Compact Chassis:
Built on the proven ISUZU ELF chassis with a 4×2 drive configuration, the vehicle offers excellent maneuverability and stability, making it ideal for urban and community firefighting operations. - Optimized Water Tank Design:
The 1.5 CBM water tank is designed with corrosion-resistant materials and efficient space utilization, ensuring sufficient water supply while maintaining a compact body size for easy navigation in narrow streets. - Reliable Speed and Safety:
With a maximum driving speed of 95 km/h, the ISUZU ELF 2CBM fire truck allows quick response to emergency sites. Its advanced braking and control systems ensure safe and stable operation during high-speed or emergency maneuvers.
SPECIFICATION
1. General Parameters
| Item | Specification |
|---|---|
| Vehicle Model | CSCWTFT002 |
| Overall Dimensions(LxWxH) | 5,490 × 1,960 × 2,940 mm |
| Gross Weight | 4,360 kg |
| Cabin Capacity | 2 + 3 persons |
2. Chassis Parameters
| Item | Specification |
|---|---|
| Chassis Manufacturer | Qingling Motors Co., Ltd. |
| Chassis Model | QL1040BUFWY |
| Engine Model | 4KH1CN6LB |
| Engine Power | 88 kW (120 HP) |
| Engine Displacement | 2999 ml |
| Maximum Speed | 95 km/h |
| Tire Model | 7.00R16 8PR |
| Tire Quantity | 6 + 1 |
| Drive Type | 4×2 |
| Transmission | Manual |
| Wheelbase | 2,765 mm |
| Emission Standard | EURO VI |
3. Firefighting System Parameters
| Item | Specification |
|---|---|
| Tank Capacity | 1.5 m³ |
| Power Take-off | Full power PTO, forced water-cooling |
| Fire Pump Model | CB10/30 |
| Fire Monitor Model | PS30 |
| Water Flow Rate | 30 L/s |
| Fire Monitor Range | ≥55 m |
4. Descriptions
| Category | Details |
|---|---|
| Cabin | Flat head, four doors, original double row (optional rear air seat with breathing apparatus brackets); power steering, clutch booster, electric windows, central lock, air conditioning, and optional engine flameout switch. |
| Water Tank | Made of high-quality carbon steel (Q235) welded structure; optional stainless steel (304) or PP plastic material; internal anti-corrosion and rust-proof epoxy coating; tank connected to chassis by flexible links; equipped with water inlet, overflow, drain, and residual outlets. |

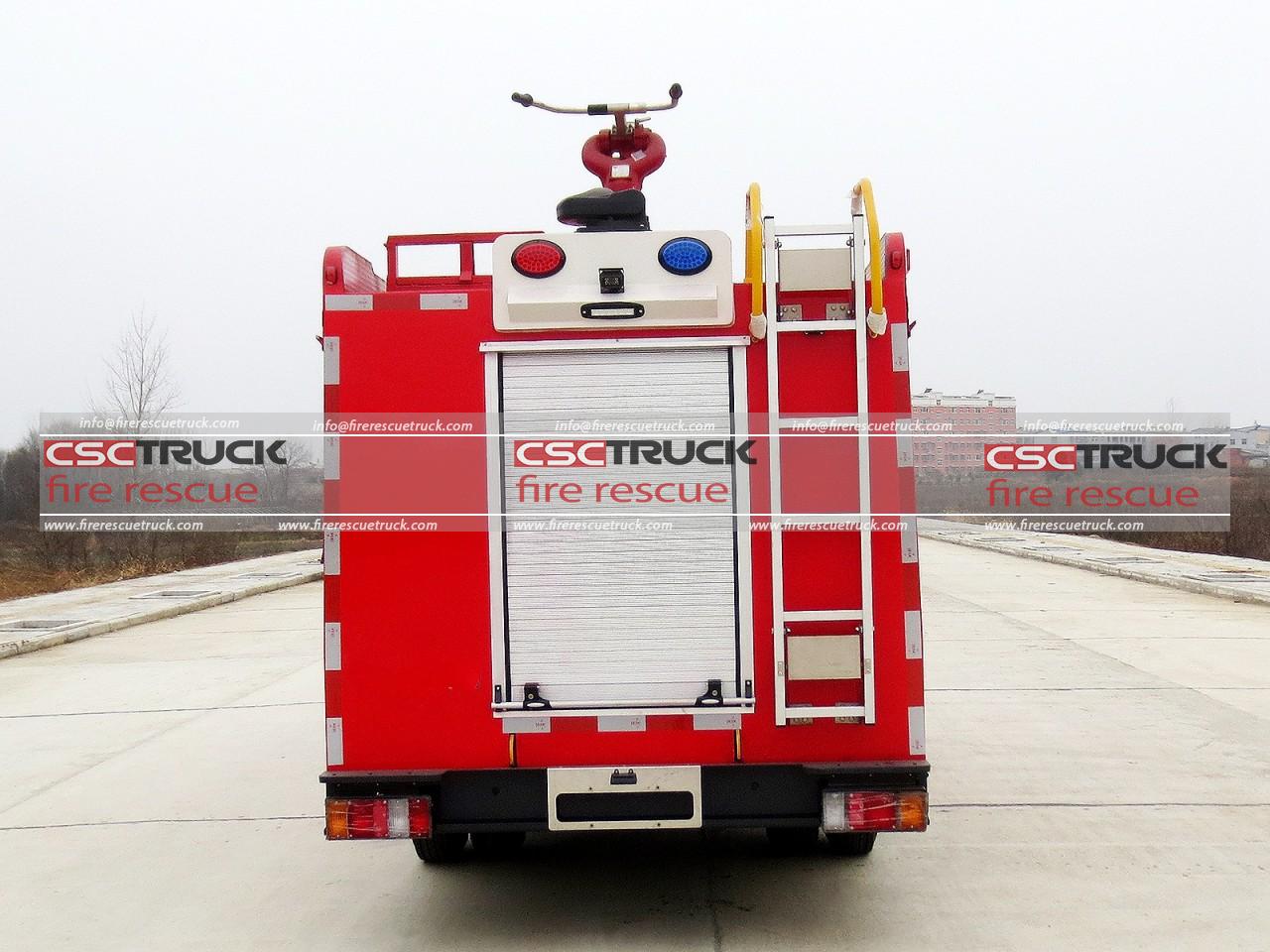

| Equipment Compartment | Main frame made of high-quality square steel; compartments located at the rear; both sides equipped with aluminum roller shutters and interior lighting. |
| Electrical System | Roof equipped with long red/blue warning light, 100W siren with integrated controller; 35W LED working lights; vehicle side warning lights; blue/red strobe lights at the front and rear; cabin equipped with intercom, illumination, and control indicators. |
5. Standard Firefighting Equipment List
| No. | Item | Specification | Quantity | Unit | Remarks |
|---|---|---|---|---|---|
| 1 | Suction Hose | 125×4M | 2 | pcs | Threaded |
| 2 | Strainer | FLF125 | 1 | pc | Internal thread |
| 3 | Water Divider | FII80/65×3-1.6 | 1 | pc | Internal thread |
| 4 | Collector | JII125/65×2-1.0 | 1 | pc | Internal thread |
| 5 | Hose | 13-65-20 | 6 | rolls | Low-pressure, internal thread |
| 6 | Hose | 13-80-20 | 6 | roll | Low-pressure, internal thread |
| 7 | Adapter | KJ65/80 | 2 | pcs | Internal thread |
| 8 | Hose Wrap | DT-SB | 4 | pcs | – |
| 9 | Hose Hook | – | 4 | pcs | – |
| 10 | Aboveground Hydrant Wrench | QT-DS1, L≈400 | 1 | pc | – |
| 11 | Underground Hydrant Wrench | L≈860 | 1 | pc | – |
| 12 | Suction Hose Wrench | FS100 | 2 | pcs | – |
| 13 | Straight Jet Nozzle | QZQ3.5/7.5; 65 | 1 | pc | Low-pressure, internal thread |
| 14 | Straight Jet Nozzle | QZK3.5/7.5; 65 | 1 | pc | Low-pressure, internal thread |
| 15 | Fire Bucket | – | 1 | pc | – |
| 16 | Fire Extinguisher | 3 kg | 1 | pc | – |
| 17 | Fire Axe | KX390; GF-285 | 1 | pc | – |
| 18 | Rubber Hammer | – | 1 | pc | – |
| 19 | Rechargeable Flashlight | – | 1 | pc | – |
