BRIEF
The ISUZU 3000 liters water foam small fire truck, produced by CSCTRUCK Fire Rescue Truck, is a compact and efficient vehicle designed for rapid fire response. Built on the reliable ISUZU QL1100A8KAY chassis with a 4×2 drive configuration, this truck is equipped to handle various firefighting tasks. It features a 2,000-liter water tank and a 1,000-liter foam tank, offering substantial fire suppression capabilities.
Powered by the 4HK1-TC51 engine, the fire truck delivers 141kW of rated power, ensuring strong performance even in demanding situations. Its rated load weight of 9,680kg allows it to carry the necessary equipment while maintaining a maximum driving speed of 90km/h, ensuring timely responses to emergencies.
The truck is equipped with a CB10/40G fire pump, which provides a rated flow rate of 40 liters per second at 10 bar pressure, making it capable of delivering a significant water stream. Additionally, the PL32 fire monitor offers a flow rate of 32 liters per second at 10 bar, enhancing its firefighting reach. The tanks are made from PP composite material, ensuring durability and resistance to corrosion.
This ISUZU fire truck is designed for flexibility, making it suitable for both urban and rural firefighting operations where quick response and maneuverability are crucial. It provides an ideal balance of size, power, and fire suppression capability.
FEATURES
1. Water and Foam Capacity: The truck is equipped with a 2,000-liter water tank and a 1,000-liter foam tank, designed for firefighting applications involving both water and foam.
2. Chassis and Drive Type: Built on the ISUZU QL1100A8KAY chassis with a 4×2 drive type, providing a stable and reliable base for fire rescue operations.
3. Engine and Power: Powered by the 4HK1-TC51 engine, which delivers a rated power of 141kW (approximately 189 horsepower), allowing the vehicle to reach a top speed of 90 km/h.
4. Fire Pump and Flow Rate: The truck is equipped with a CB10/40G fire pump, delivering a flow rate of 40 liters per second at 10 bar pressure, ensuring high-capacity water and foam delivery during firefighting operations.
5. Fire Monitor and Construction: Fitted with the PL32 fire monitor, capable of providing a 32 liters per second flow rate at 10 bar pressure. Additionally, the truck features a durable PP composite material tank for enhanced durability and resistance to corrosion.
SPECIFICATION
1. The Small Fire Truck
| No. | Main Items | Technical Parameters |
| 1.1 | Model | CSCWFFT030 |
| 1.2 | Dimension | 6,840mm*2,200mm*3,200mm |
| 1.3 | Rated Load Weight | 9,680 KG |
| 1.4 | Number of the Crew | 2+3 (include driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 2,000L Water & 1,000L Foam. PP composite material liquid tank |
| 1.7 | Flow rate | 40L/s@10bar |
| 1.8 | Fire monitor | 32L/s flow rate with 65m shoot range |
| 1.9 | Painting | The red color of U.S. PPG |
2. Chassis of the Small Fire Truck
| No. | Main Items | Technical Parameters |
| 2.1 | Manufacturer | ISUZU |
| 2.2 | Model | QL1100A8KAY |
| 2.3 | Drive Type | 4×2 |
| 2.4 | Wheelbase | 3,815mm |
| 2.5 | Engine model | 4HK1-TC51 |
| 2.6 | Engine type | Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
| 2.7 | Rated power | 141kW |
| 2.8 | Gearbox form | Manual gearbox, 6 forward gears + 1 reverse gear |
| 2.9 | PTO | Full power sandwich type |
| 2.10 | Fuel tank capacity | 100L |
3. Superstructure
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Double row cabin with 4 doors |
| 3.1.2 | Seats | 2+3, with a 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats |
| 3.3 | Compartment | |
| 3.3.1 | Material | High-strength aluminum alloy profiles (Never Rust) |

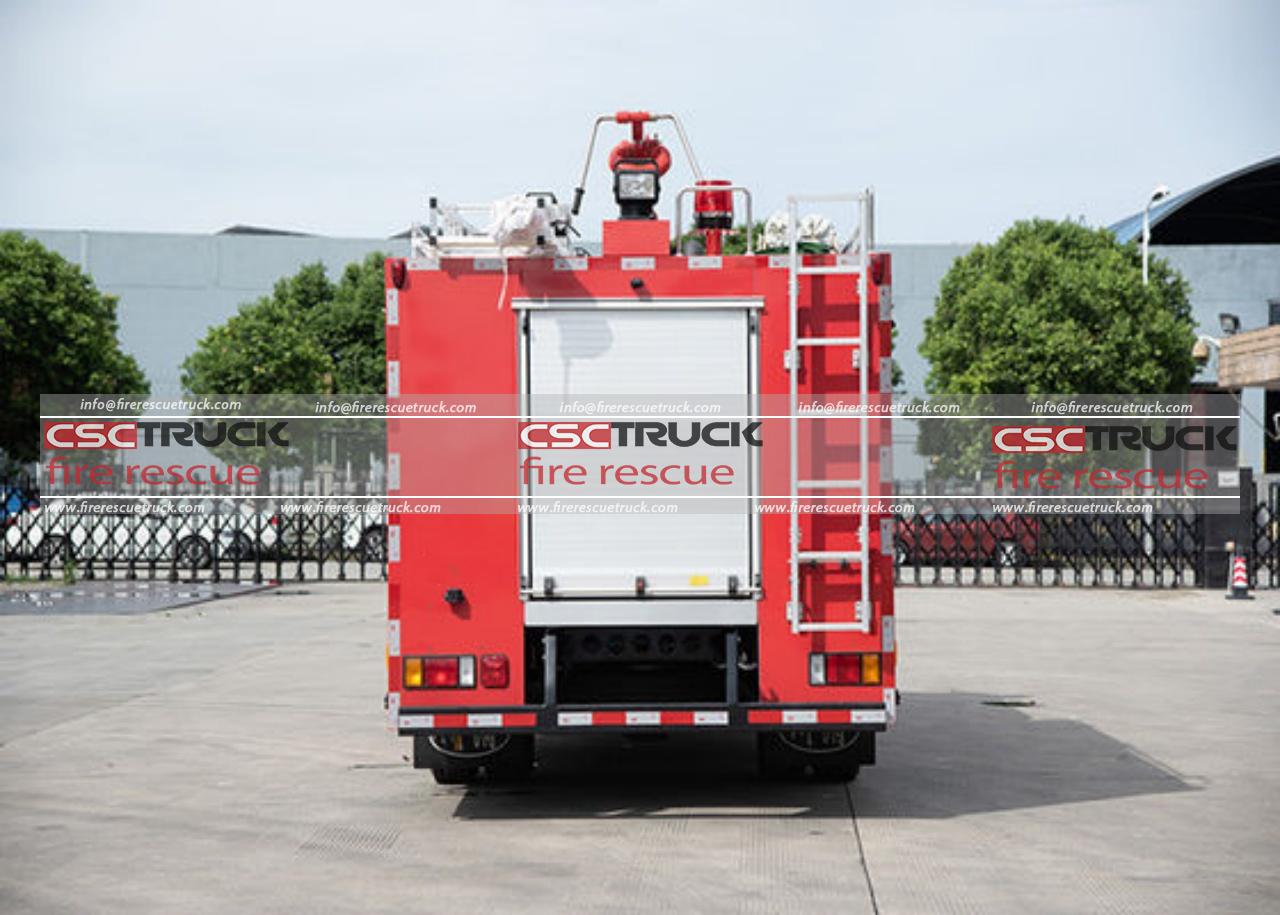

| 3.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear |

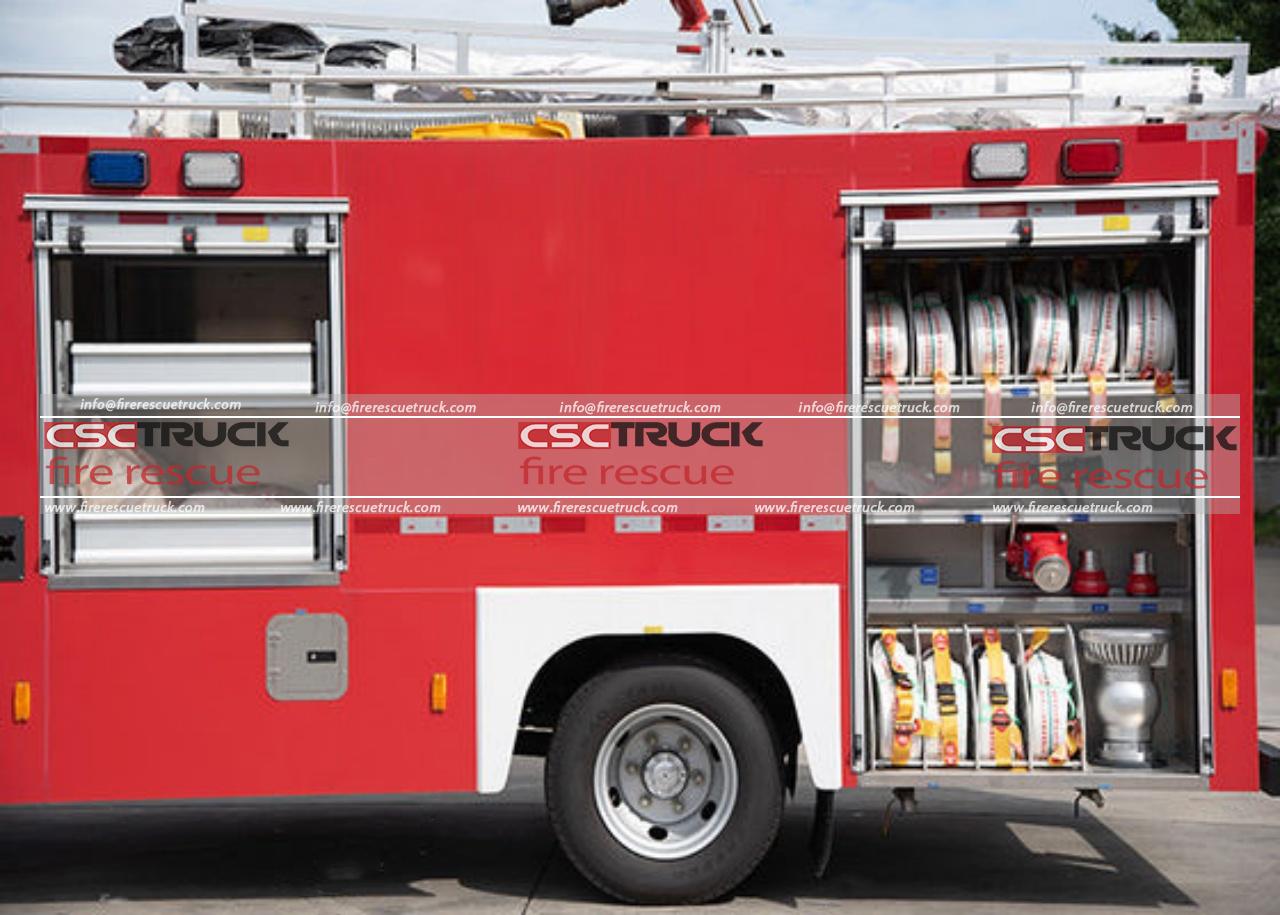

| 3.4 | Roller Shutter Door | |
| 3.4.1 | Material | Aluminum alloy profiles with anodized surface |
| 3.4.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a 2-point fixed seat, an LED light, and sensors. |
| 3.5 | Foot Pedals | |
| 3.5.1 | Material | High-quality aluminum alloy |
| 3.5.2 | Structure | 50cm width, bears more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment. |
| 3.6 | Superstructure Electric Appliance | |
| 3.6.1 | Warning Light and Siren | Long-row warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 3.6.2 | Strobe Light | Mounted on both sides of the compartment |
| 3.6.3 | External Lighting | LED lights are mounted on both sides of the compartment |
| 3.6.4 | Roof Lighting | LED lights are mounted on the inside of the roof |
| 3.6.5 | Side Indicator Light | The inline yellow warning light is mounted on the side of the compartment and the pedals |
| 3.7 | Fire Pump | |
| 3.7.1 | Brand | CSCTRUCK |
| 3.7.2 | Model | CB10/40G |
| 3.7.3 | Rated Flow Rate | 40L/s @ 10bar |
| 3.7.4 | Vacuum Pump | Water ring vacuum pump |
| 3.7.5 | Priming Manner | Automatic |
| 3.7.6 | Suction Height | 7m |
| 3.7.7 | Priming Time | ≤35s |
| 3.7.8 | Location | Rear-mounted |
| 3.8 | Fire Monitor | |
| 3.8.1 | Brand | CSCTRUCK |
| 3.8.2 | Model | PL32 |
| 3.8.2 | Flow Rate | 32L/s @ 10bar |
| 3.8.3 | Shoot Range | Water ≥ 50 m, Foam ≥ 45 m |
| 3.8.4 | Location | On the top of the tank |
| 3.8.5 | Control Manner | Manual |
| 3.8.6 | Horizontal Rotation Angle | 0°~360° |
| 3.8.7 | Pitch Rotation Angle | -15°~60° |
| 3.9 | Liquid Tank | |
| 3.9.1 | Capacity | Water 2,000L, Foam 1,000L |
| 3.9.2 | Material | PP composite material |
| 3.9.3 | Structure | Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
| 3.10 | Fire Fighting Control System | |
| 3.10.1 | Structure | Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level |
| 3.10.2 | Location | Rear pump room |
