BRIEF

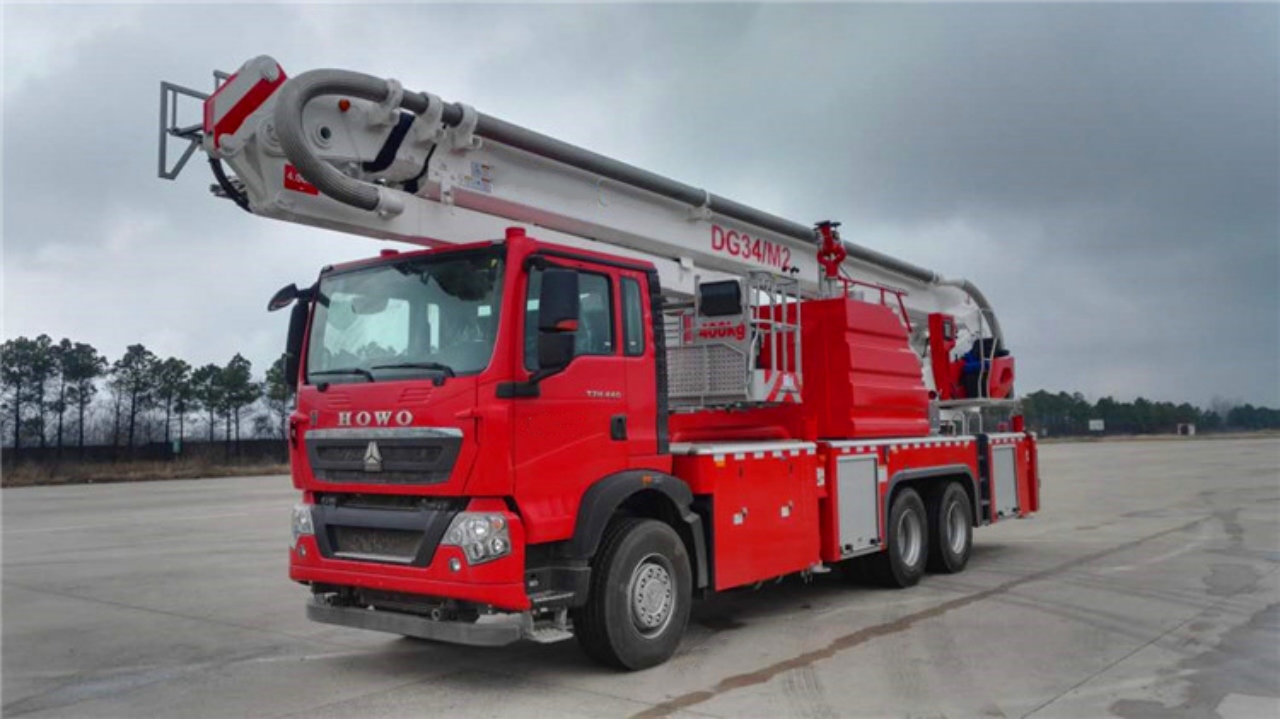

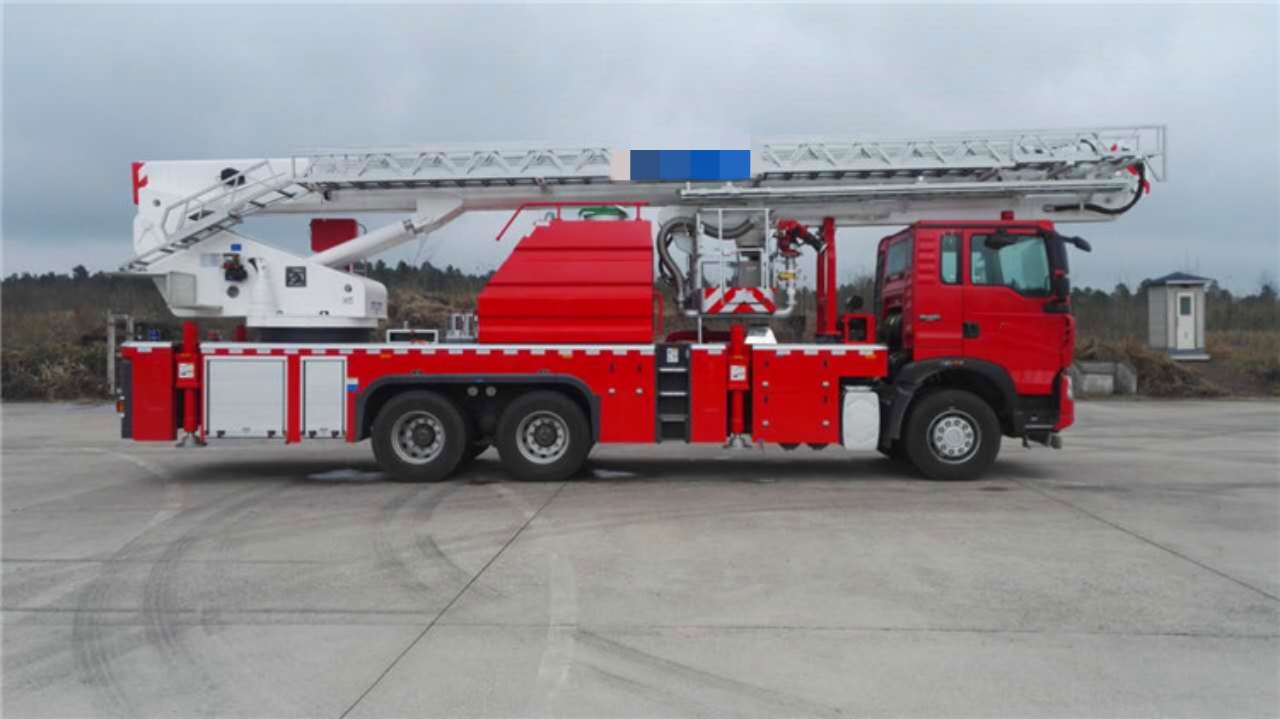

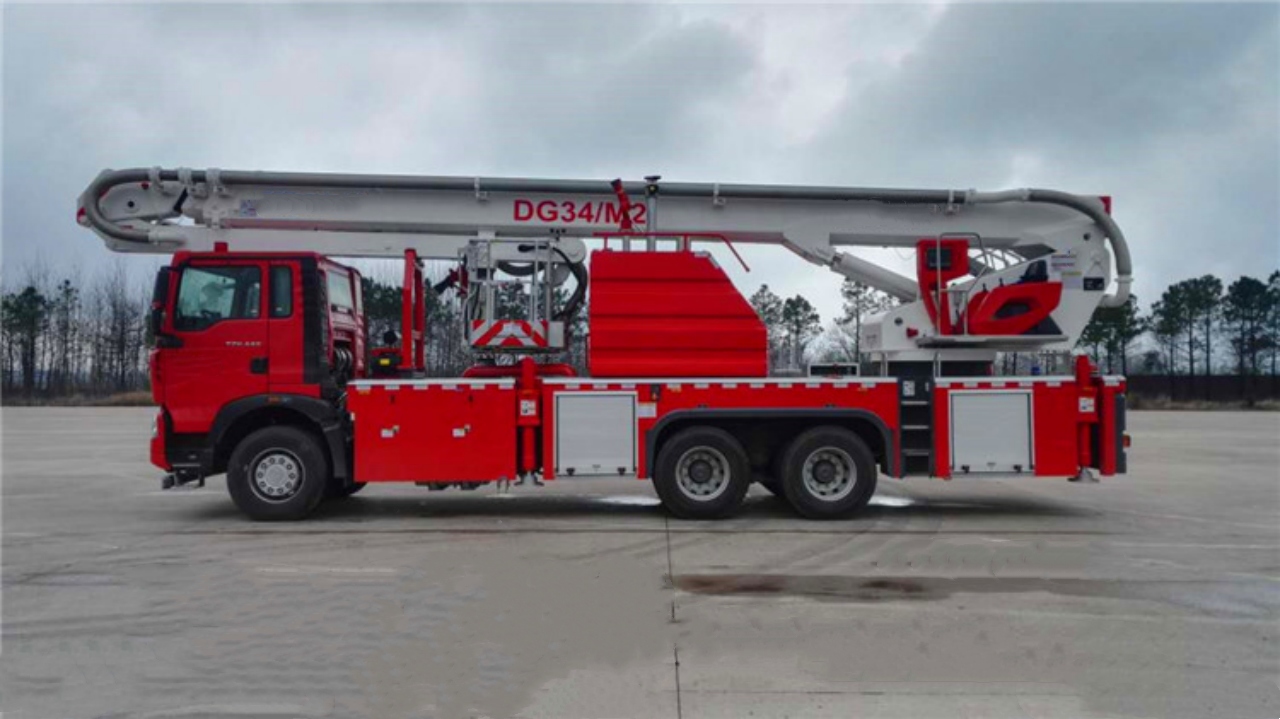

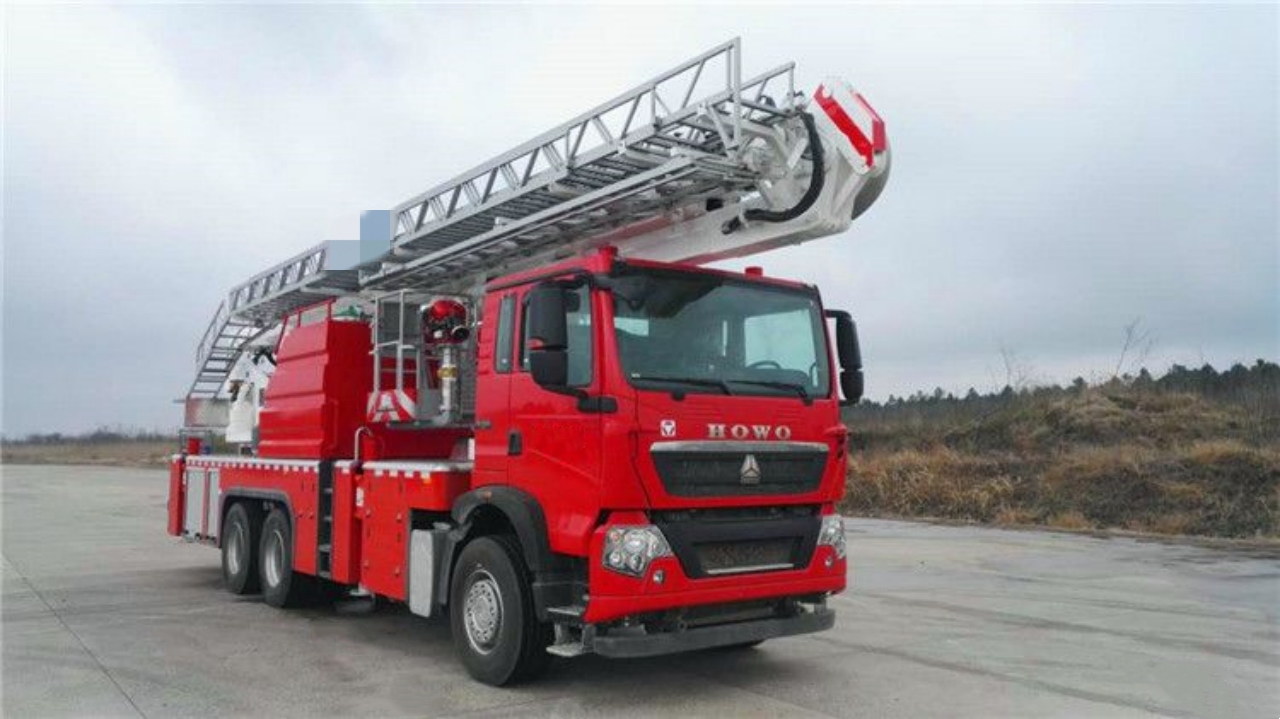

The HOWO 34M aerial platform fire truck by CSCTRUCK Fire Rescue Truck represents a pinnacle in firefighting technology, meticulously designed to meet the demands of modern fire rescue operations. Standing tall with a maximum working height of 34 meters and an expansive 21-meter operating radius, this vehicle ensures access to elevated points crucial for effective firefighting and rescue missions.

Mounted on a robust HOWO chassis with a 6×4 drive configuration, it boasts a powerful engine delivering 351 to 450 horsepower. It complies with EURO V emission standards for reduced environmental impact. With a maximum speed exceeding 90 km/h, it swiftly navigates emergency routes to reach incidents promptly.

This fire truck has a substantial 5,500 kg water tank capacity and ensures sustained firefighting capability in challenging scenarios. The PSKD80 firefighting gun, capable of delivering a rated flow of 50 L/s (±8%) at pressures up to 0.8 MPa, provides formidable firefighting power with a range extending beyond 65 meters. This, combined with a fire pump capable of delivering ≥50 L/s at ≥1.4 MPa, underscores its efficacy in extinguishing fires swiftly and efficiently.

Operational versatility is enhanced by a work platform capable of supporting up to 400 kg and rotating at speeds between 0.5 and 1.5 revolutions per minute (r/min) for precise positioning during rescue operations. Whether combating urban blazes or conducting high-altitude rescues, the HOWO 34M excels in ensuring firefighter safety and operational success.

In summary, the HOWO 34M aerial platform fire truck by CSCTRUCK Fire Rescue Truck stands as a testament to engineering excellence in fire rescue vehicles. It blends advanced firefighting capabilities with robust design and operational efficiency, making it a critical asset in the arsenal of any modern firefighting force.

FEATURES

1. High Reach and Operating Radius:
   • Maximum working height of 34 meters and a maximum operating radius of 21 meters, providing excellent access to tall structures and hard-to-reach areas during firefighting and rescue operations.
2. Powerful Firefighting Capabilities:
   • Equipped with a PSKD80 firefighting gun with a rated flow of 50 L/s (±8%), a rated pressure of ≤0.8 MPa, and a range of ≥65 meters, ensuring effective fire suppression even from a distance.
3. Large Water Tank and Pump Capacity:
   • Features a 5,500 kg water tank and a fire pump with a rated flow of ≥50 L/s and a rated pressure of ≥1.4 MPa, enabling prolonged firefighting operations without frequent refills.
4. Robust Chassis and Drive System:
   • Built on a HOWO chassis with a 6×4 drive type, a powerful 351-450 hp engine, and compliant with EURO V emission standards, ensuring reliable performance, eco-friendliness, and a maximum driving speed of ≥90 km/h.
5. Safe and Efficient Work Platform:
   • The work platform has a load capacity of 400 kg, suitable for carrying personnel and equipment, with a maximum slewing speed of 0.5~1.5 r/min, ensuring precise and stable operation during critical missions.

SPECIFICATION
