BRIEF

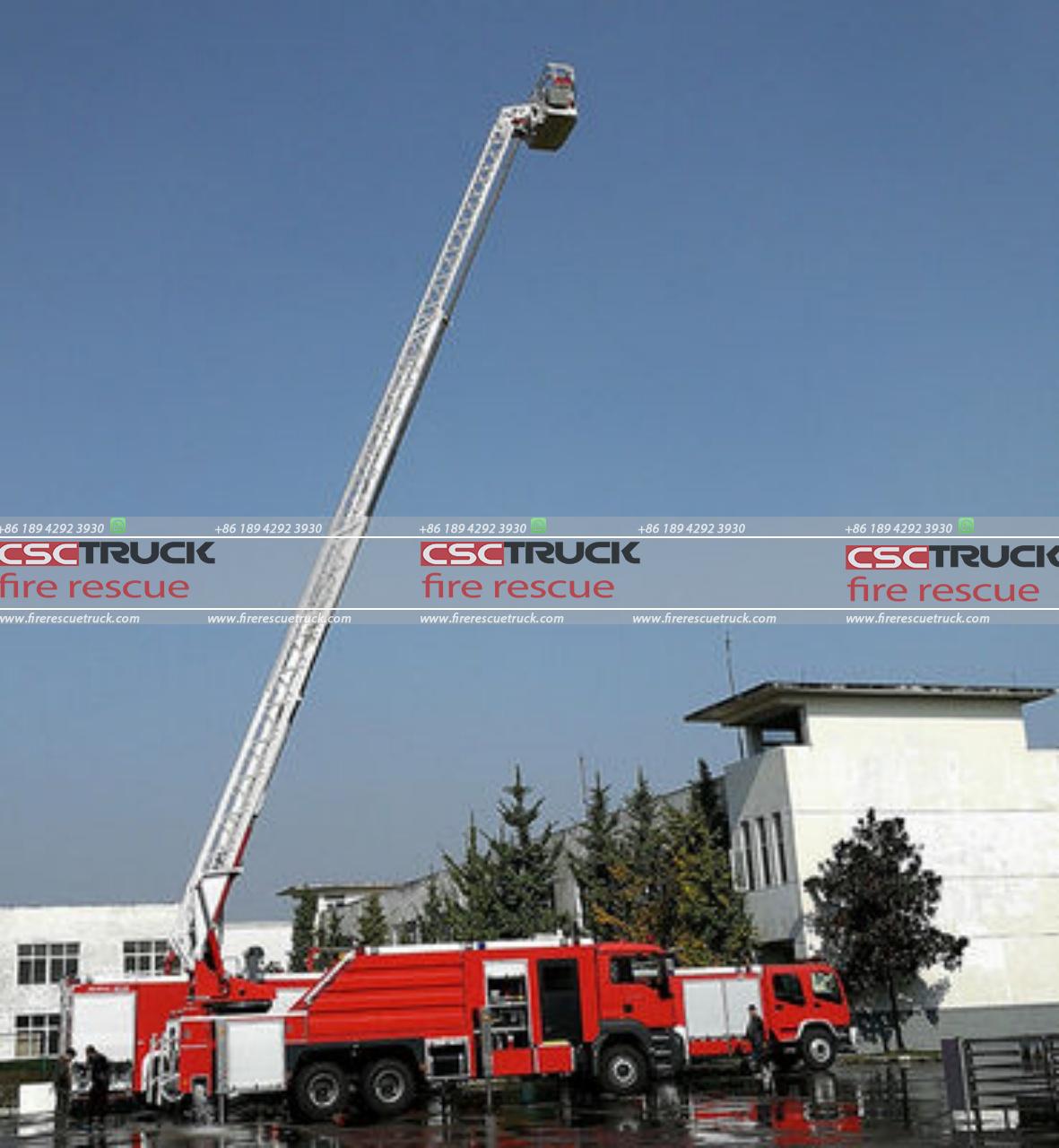

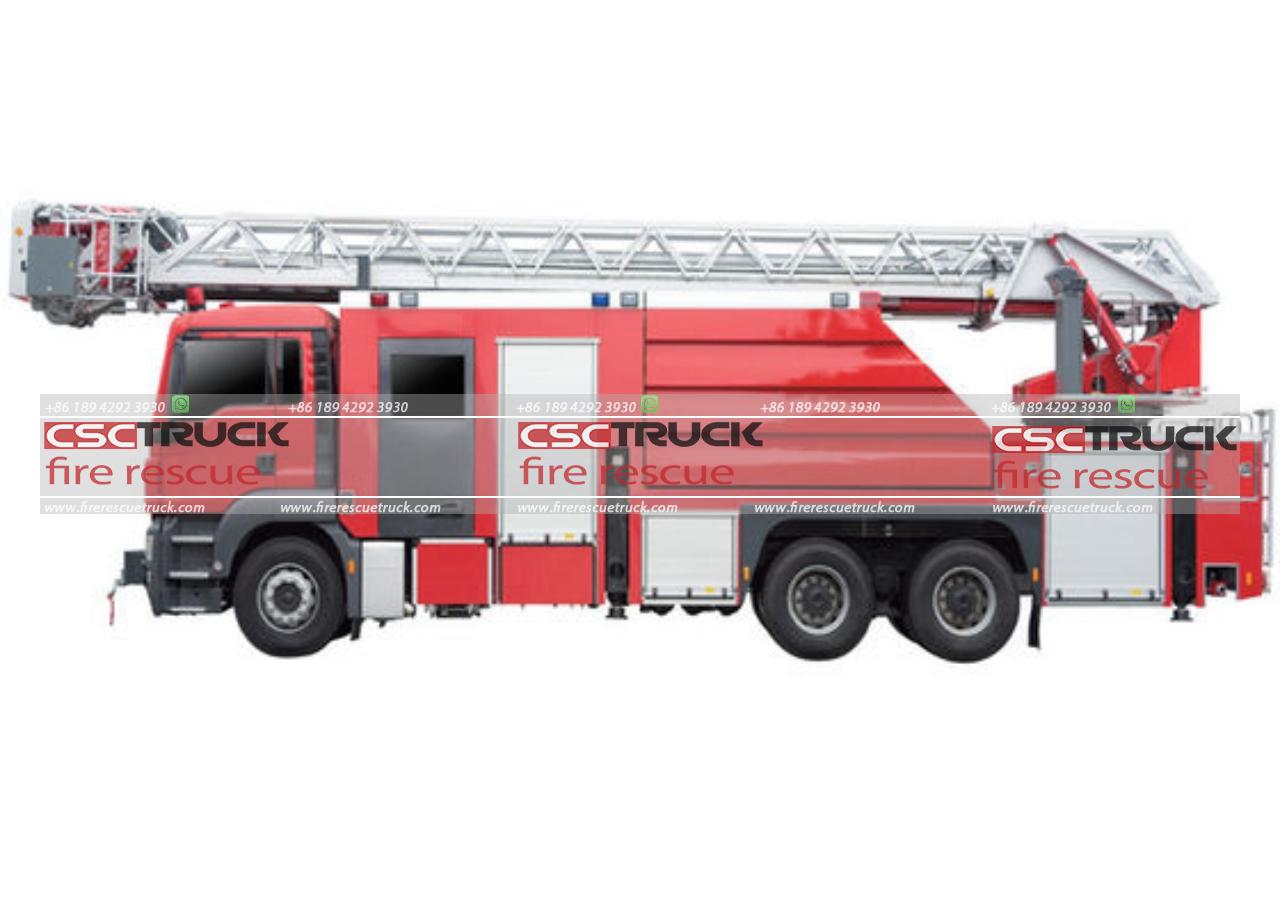

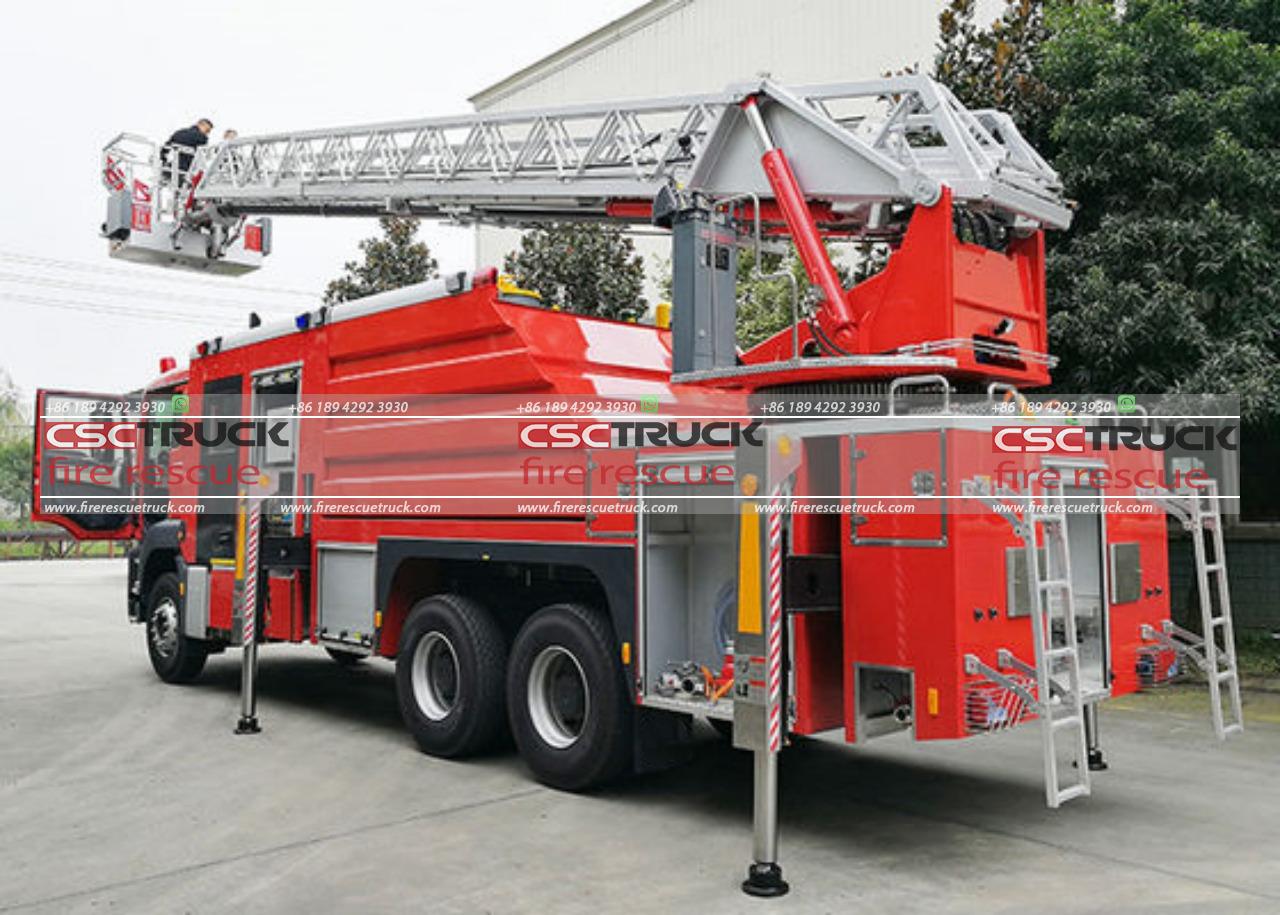

The HOWO 32M aerial ladder fire fighting truck, produced by CSCTRUCK Fire Rescue Truck, is a versatile and powerful emergency response vehicle designed for high-rise firefighting and rescue operations. It offers stability and mobility in urban and rural environments, built on a sturdy Sinotruk HOWO chassis with a 6×4 drive type. This truck has an impressive maximum working height of 32 meters, allowing it to reach high elevations during rescue missions.
The HOWO 32M aerial ladder fire fighting truck is ready for sustained firefighting. It is equipped with a 4,000-liter water tank and a 1,000-liter foam tank made of durable PP composite material. Its fire pump delivers a high flow rate of 100 liters per second at 10 bars, ensuring a rapid supply of water and foam. The truck’s fire monitor can release up to 5,700 liters per minute, with a shooting range of at least 70 meters, enabling effective coverage of extensive fire zones from a safe distance.
With a total loaded weight of 34,000 kg, the HOWO 32M aerial ladder fire fighting truck remains manageable, achieving a maximum speed of 90 km/h. Powered by a robust 327kW engine, the HOWO 32M is capable of swift responses, even with full load conditions. Its design and features make it a valuable asset for fire departments, particularly in areas with high-rise buildings, due to its reach, tank capacity, and powerful firefighting capabilities.
FEATURES
1. High Reach with Aerial Ladder: The truck features a 32-meter aerial ladder, allowing it to reach tall buildings and perform high-elevation rescues, making it highly effective for urban firefighting.
2. Robust Water and Foam Storage Capacity: Equipped with a 4,000-liter water tank and a 1,000-liter foam tank, it offers sufficient resources for extensive firefighting operations.
3. Powerful Fire Pump and Monitor: The fire pump has a flow rate of 100 liters per second at 10 bar, while the fire monitor can discharge 5,700 liters per minute, with a shooting range of at least 70 meters, ensuring long-distance firefighting capability.
4. Durable and Lightweight Tank Material: The water and foam tanks are made of PP composite material, known for their durability, corrosion resistance, and lightweight properties, enhancing the truck’s longevity and operational efficiency.
5. High-Performance Chassis and Engine: Built on a Sinotruk HOWO chassis with a 6×4 drive type, it boasts a powerful 327kW engine, reaching a top speed of 90km/h. This ensures reliability, speed, and control even in challenging terrains.
SPECIFICATION
| No. | Main Items | Technical Parameters |
| 1 | Model | CSCALFFT032 |
| 2 | Overall Dimensions(LxWxH) | 12,000×2,500×4,000mm |
| 3 | Full Load Weight | 34,000kgs |
| 4 | Number of the Crew | 1+1(include driver) |
| 5 | Max. Speed | 90km/h |
| 6 | Capacity | 4,000L Water&1,000L Foam. PP composite material liquid tank |
| 7 | Fire pump flow rate | 100L/s@10bar |
| 8 | Fire monitor | 5,700L/min. flow rate, 70m shoot range |
| 9 | Max. working height | 32m |
2. Aluminum Superstructure
2.1 Cabin
- Structure: Single row cabin with 2 doors.
- Seats: 1+1, with a 3-point safety belt.
2.2 Standardized Sub-frame
- Material: High-strength rectangular tube made of special steel.
- Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.
2.3 Compartment
- Material: High-strength aluminum alloy profiles (Never Rust).

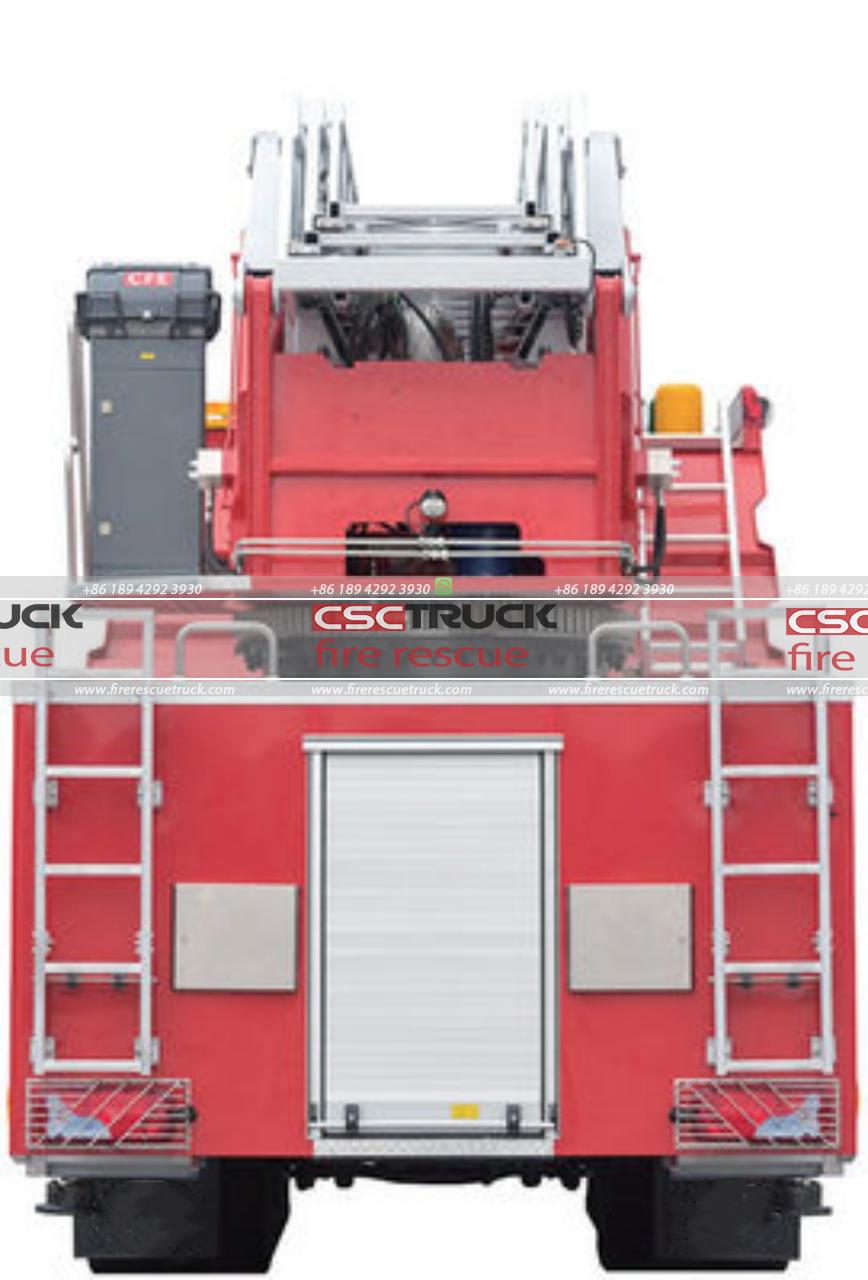

- Structure: Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear.
2.4 Roller Shutter Door
- Material: Aluminum alloy profiles with anodized surface.
- Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light, and sensors.
2.5 Foot Pedals
- Material: High-quality aluminum alloy.
- Structure: 50cm width, bearing more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment.
3. Fire Fighting System
| No. | Main Items | Technical Parameters |
| 3.1 | Fire Pump | |
| 3.1.1 | Brand | CSCTRUCK |
| 3.1.2 | Model | CB10/100 |
| 3.1.3 | Rated Flow Rate | 100L/s@10bar |
| 3.1.4 | Vacuum Pump | Electric vacuum pump |
| 3.1.5 | Priming Manner | Automatic |
| 3.1.6 | Suction Height | 7m |
| 3.1.7 | Priming Time | ≤80s |
| 3.1.8 | Location | Rear-mounted |
| 3.2 | Fire Monitor | |
| 3.2.1 | Brand | Optional |
| 3.2.2 | Model | Optional |
| 3.2.2 | Flow Rate | 950-5,700L/min. |
| 3.2.3 | Shoot Range | Water ≥ 70 m, Foam ≥ 60 m |
| 3.2.4 | Location | On the top of the boom |
| 3.2.5 | Control Manner | Remote control |
| 3.2.6 | Horizontal Rotation Angle | 0°~355° |
| 3.2.7 | Pitch Rotation Angle | -45°~120° |
| 3.3 | Liquid Tank | |
| 3.3.1 | Capacity | Water 4,000L, Foam 1,000L |
| 3.3.2 | Material | PP composite material and Never Rust. |
| 3.3.3 | Structure | 2 Tank Manholes; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlet with Valves; 1 Water tank Drain Outlet with Valves. |
| 3.4 | Control Panel | |
| 3.4.1 | Structure | Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level. |
| 3.4.2 | Location | Rear pump room. |
