BRIEF

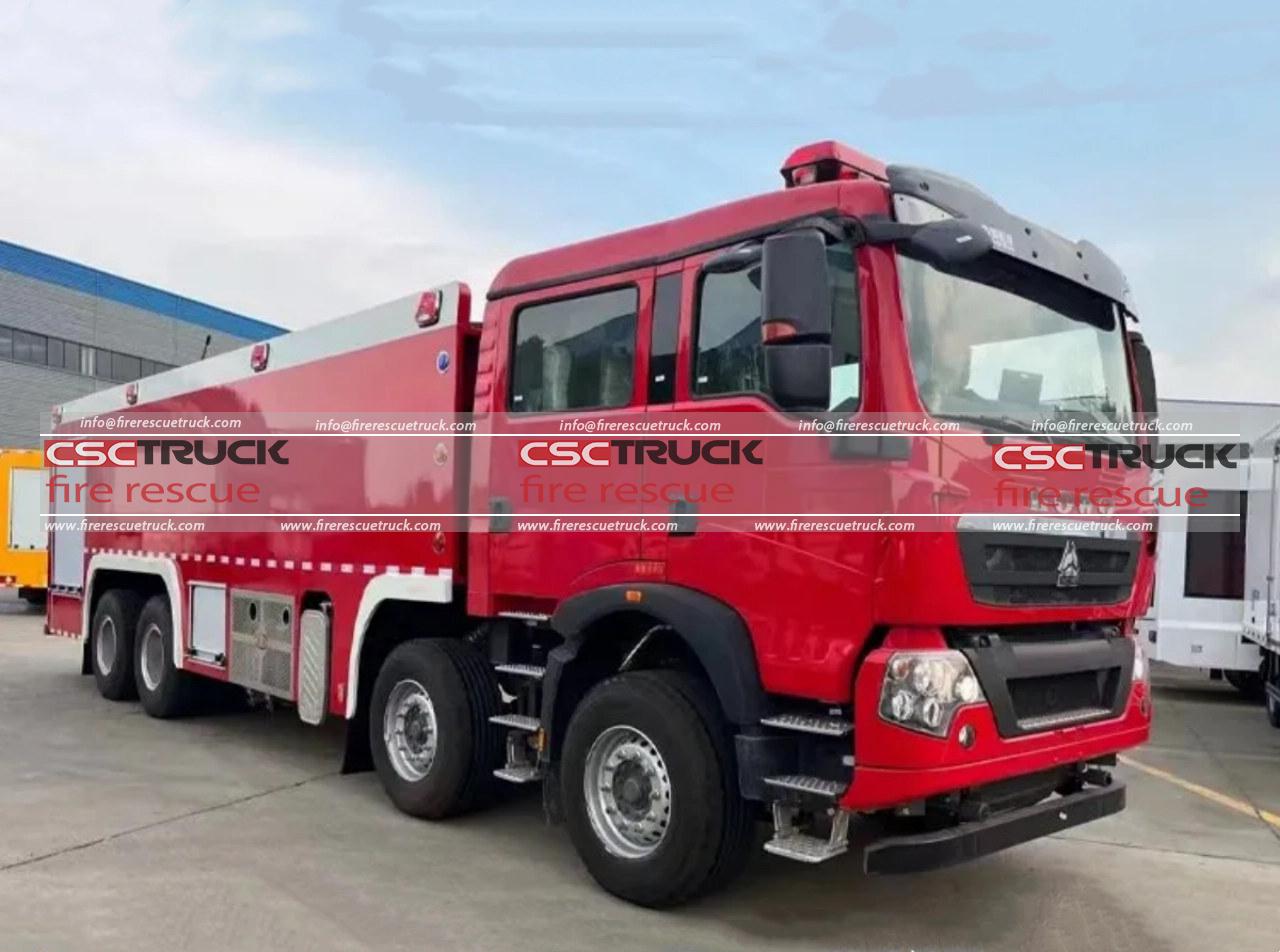

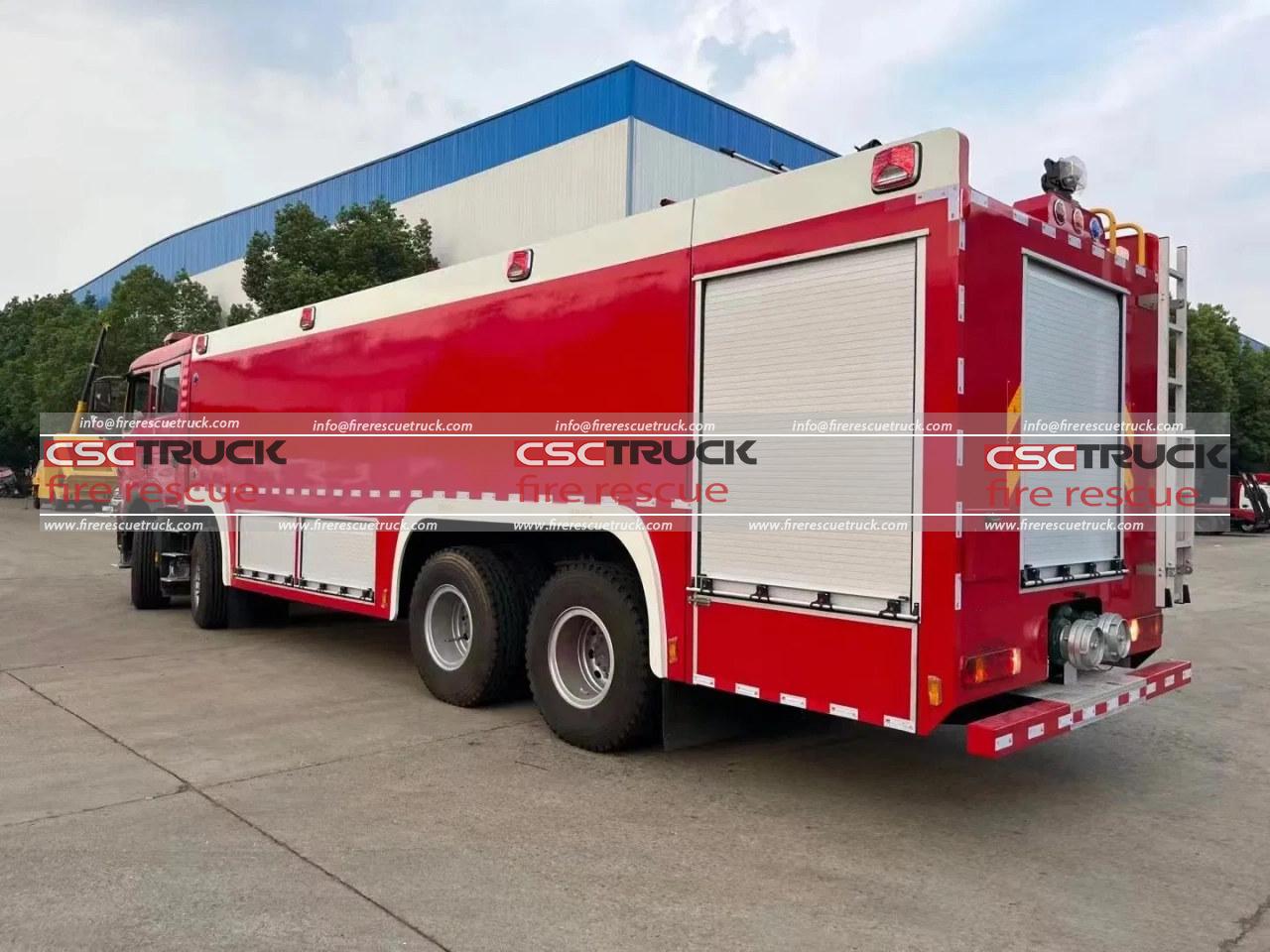

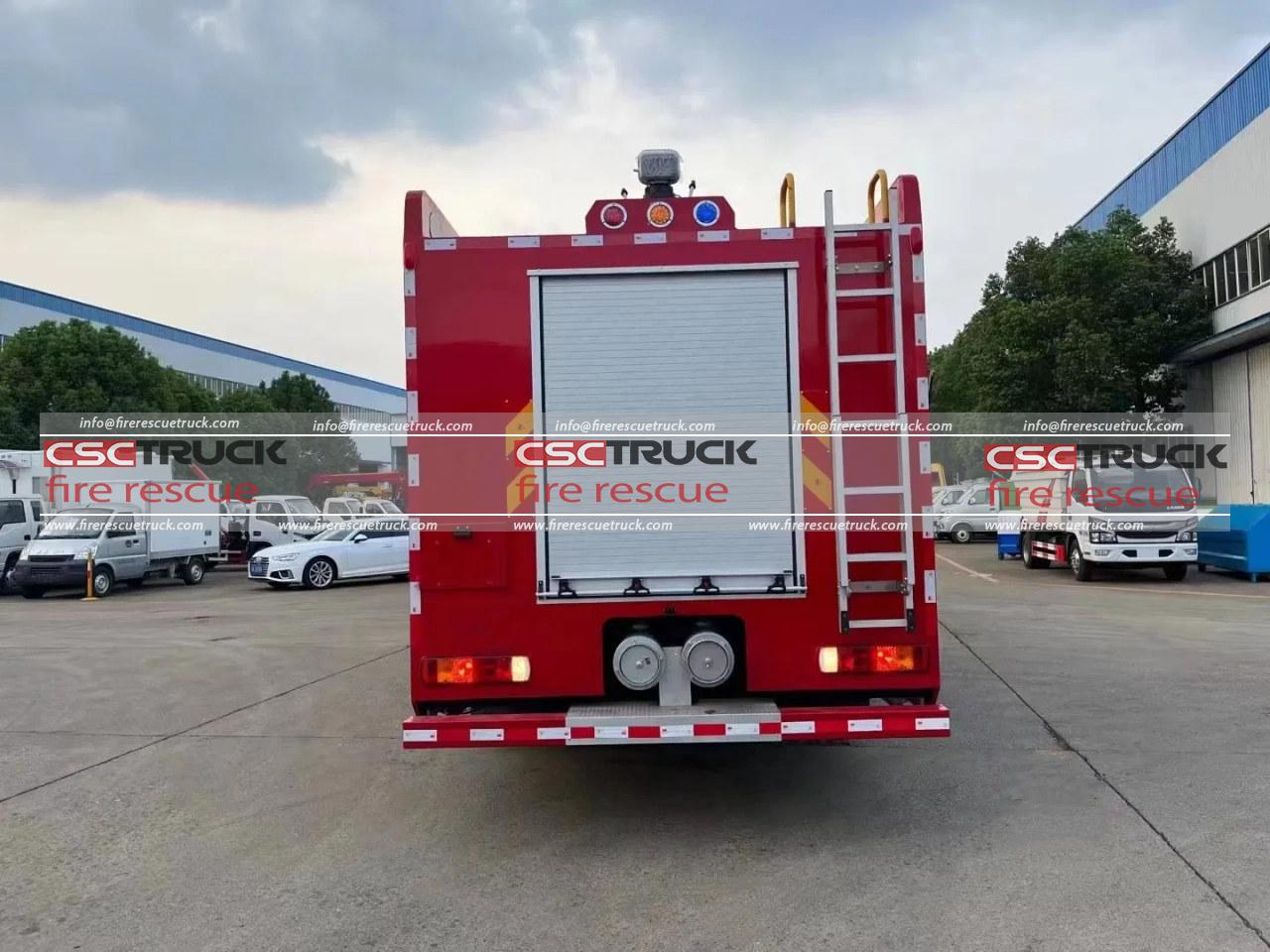

The HOWO 25 CBM pumper fire fighting truck, produced by CSCTRUCK Fire Rescue Truck, is a high-capacity emergency response vehicle designed for efficient fire suppression operations. Built on the HOWO/ZZ5447TXFV466MF5 chassis, this truck features an 8×4 drive configuration, ensuring superior stability and load-bearing capability.
Powered by the MC11.46-61 engine, the truck delivers 463 horsepower and meets the Euro 4 emission standard, balancing power and environmental compliance.
The firefighting system consists of a CB10/100 fire pump capable of delivering 100 liters per second (L/s) at a pressure of 1.0 MPa, ensuring rapid water discharge for effective fire suppression. The pump has a suction depth of 7 meters, allowing water intake from external sources.
The HOWO 25 CBM pumper fire fighting truck has a PS30W fire monitor, offering a flow rate of 20 L/s at 0.8 MPa pressure. The monitor has an extensive range of ≥45 meters, with a horizontal rotation of 360° and a pitch range of -35° to 70°, providing flexibility in directing water or foam onto the fire.
For firefighting agents, the vehicle includes a 20 CBM water tanker and a 5 CBM foam tanker, making it suitable for combating both standard and fuel-based fires.
With its robust design, high pump efficiency, and versatile fire monitor, the HOWO 25 CBM pumper fire fighting truck is an ideal solution for municipal and industrial fire departments, ensuring rapid response and effective fire suppression capabilities.
FEATURES
- Large Water and Foam Tank Capacity – Equipped with a 20 CBM (20,000 liters) water tank and a 5 CBM (5,000 liters) foam tank, allowing extended firefighting operations without frequent refilling.
- Powerful Fire Pump System – Features a CB10/100 fire pump with a 100L/s flow rate at 1.0 MPa pressure and a 7m suction depth, ensuring high-efficiency water delivery during firefighting operations.
- High-Performance Fire Monitor – Utilizes a PS30W fire monitor with a 20L/s flow rate, 0.8 MPa pressure, and a ≥45m range, providing excellent fire suppression capabilities with 360° horizontal and -35° to 70° pitch rotation angles for precise targeting.
- Robust Chassis and Engine – Built on a HOWO ZZ5447TXFV466MF5 chassis with an 8×4 drive type, powered by an MC11.46-61 engine delivering 463hp and complying with the Euro 4 emission standard for reliable performance.
- Versatile and Durable Design – Designed for both urban and industrial firefighting scenarios, with a sturdy structure, advanced control systems, and a well-balanced weight distribution for enhanced maneuverability and operational efficiency.
SPECIFICATION
Vehicle Description |
||
Overall dimensions(LxWxH) | 11,990×2,550×3,560(mm) | |
GVW | 42,450kg | |
Curb weight | 17,200kg | |
Chassis brand | Heavy Duty Truck | |
Traction type | 8*4 left/right hand drive | |
Chassis Description |
||
Chassis model | ZZ5447TXFV466MF5 | |
Cab | Structure: flat-head, original double-row seat four-door passenger compartment. Seat setting: 2 persons in the front row and 4 persons in the back row. |
|
Wheelbase | 1,950+4,600+1,400mm | |
Tire specification | 385/65R22.5/315/80R22.5 18PR | |
Tire quantity | 12 | |
Engine | Engine model | MC11.46-61 |
Emission level | Euro 4 (EGR) | |
Displacement/output | 10,518ml/338kW | |
Horse power | 463hp | |
Gear box | Model | / |
Number of gears | 12 forward gears& 1 reverse | |
Brake system | Type | Drum |
Service brake | Dual-circuit compressed air brake | |
Park brake | Power spring brake acting on rear wheel | |
Auxiliary brake | WEVB | |
Axle | Front | 2.5T |
Rear | 4.8T | |
Suspension | Front | 7- Leaf spring with shock absorber |
Rear | 9+6-Leaf spring | |
Fuel tanker | Type | Steel fuel tanker |
Capacity | 400L | |
Up-parts Description |
||
Tanker capacity | Water tanker | 20 CBM |
Foam tanker | 5 CBM | |
Standard configuration | 1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual control. |
|
Fire pump |
Model | CB10/100, normal pressure pump |
Flow | 100L/s | |
Pressure | 1.0Mpa | |
Suction depth | 7m | |
Fire monitor | Model | PS30W |
Flow | 20L/S | |
Pressure | 0.8Mpa | |
Range | ≥45m | |
Rotation angle | Horizontal 360° Pitch -35°~70° |
|
Other configuration | Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. Other equipment. |
