BRIEF

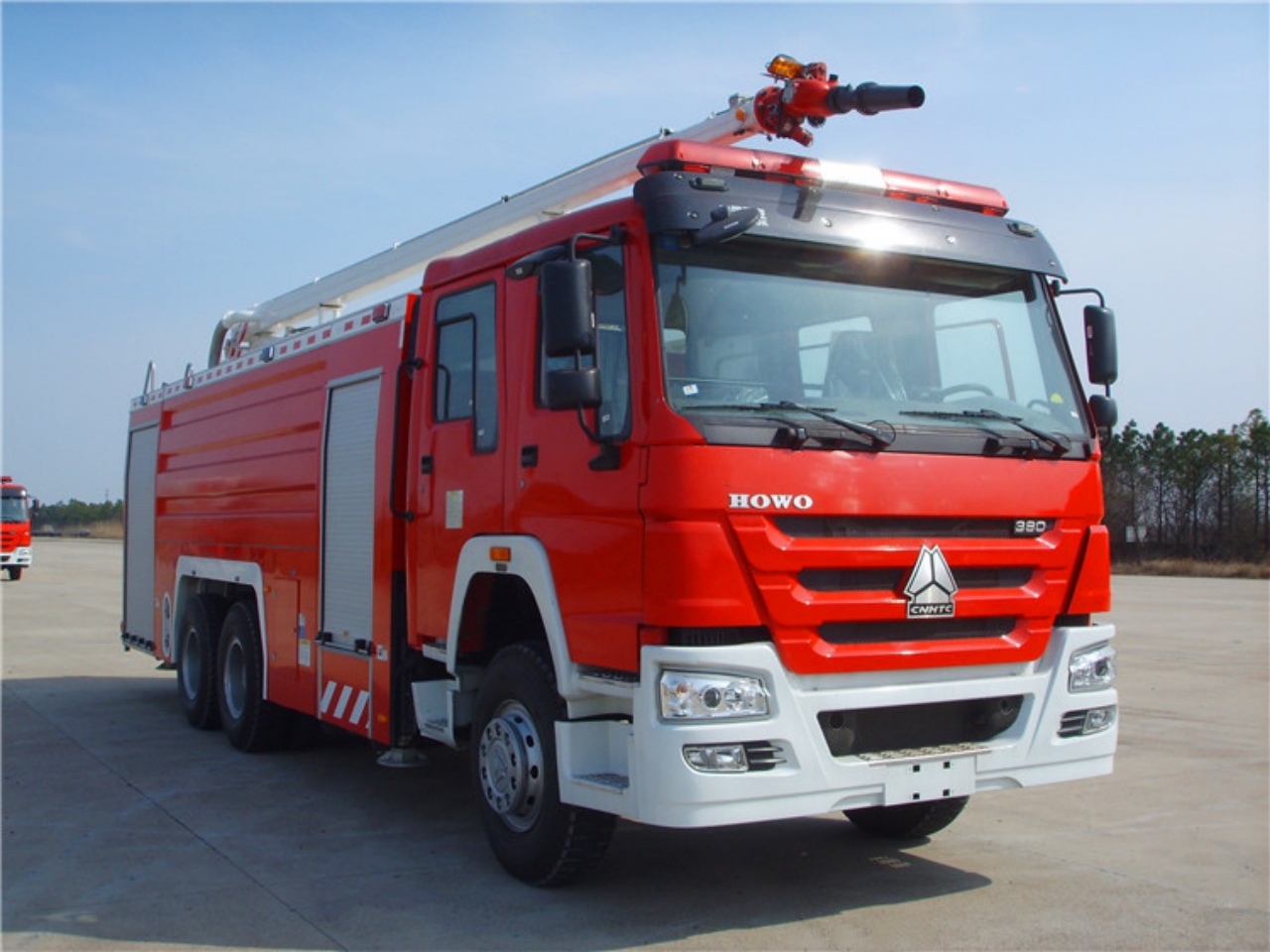

The HOWO 20M water foam fire and truck, manufactured by CSCTRUCK Fire Rescue Truck, is a high-performance firefighting vehicle designed to handle a wide range of emergency scenarios. Built on a robust HOWO chassis with a 6×4 drive type, the truck combines power, versatility, and advanced firefighting capabilities to deliver exceptional performance in challenging environments.

The water foam fire and truck is equipped with a dual-tank system, featuring a water tank capacity of 7,000 liters and a foam tank capacity of 3,000 liters, providing sufficient firefighting resources for prolonged operations. Its 20-meter maximum working height and 12-meter maximum working radius ensure flexibility and reach in combating fires in high-rise buildings or expansive areas. Powered by an engine delivering 351–450 horsepower and compliant with Euro 4 emission standards, the truck can reach speeds of up to 90 km/h, allowing rapid deployment to emergency sites.

The firefighting equipment includes a high-capacity fire pump rated at ≥50 L/s with a pressure of ≥1.4 MPa, ensuring efficient water and foam delivery. The PLKD64 fire monitor, with a rated flow of 50 L/s and a pressure of ≤0.9 MPa, provides a shooting range of ≥60 meters, enabling effective firefighting from a safe distance. The boom rotates at a speed of 0.5 to 1.5 rotations per minute, ensuring precise positioning for optimal fire suppression.

This water foam fire and truck is an excellent choice for fire departments and rescue operations, combining advanced engineering, reliable performance, and cutting-edge firefighting technology to meet the demands of modern firefighting challenges.

FEATURES

1. High Tank Capacity: Equipped with a 7,000L water tank and a 3,000L foam tank, making it suitable for large-scale firefighting operations.
2. Impressive Performance: Features a fire pump with a rated flow of ≥50 L/s and a rated pressure of ≥1.4 MPa, capable of handling high-pressure firefighting needs.
3. Advanced Fire Monitor: The PLKD64 fire monitor delivers a rated flow of 50 L/s, a rated pressure of ≤0.9 MPa, and a shooting range of ≥60m, ensuring effective firefighting from a safe distance.
4. Boom Functionality: The 20m maximum working height and 12m maximum working radius of the boom, combined with a rotation speed of 0.5~1.5r/min, enable flexible and precise aerial operations.
5. Reliable Chassis and Engine: Built on a HOWO 6X4 chassis with a powerful 351-450hp engine, Euro 4 emission standard, and a maximum speed of ≥90km/h for efficient response times.

SPECIFICATION
