BRIEF



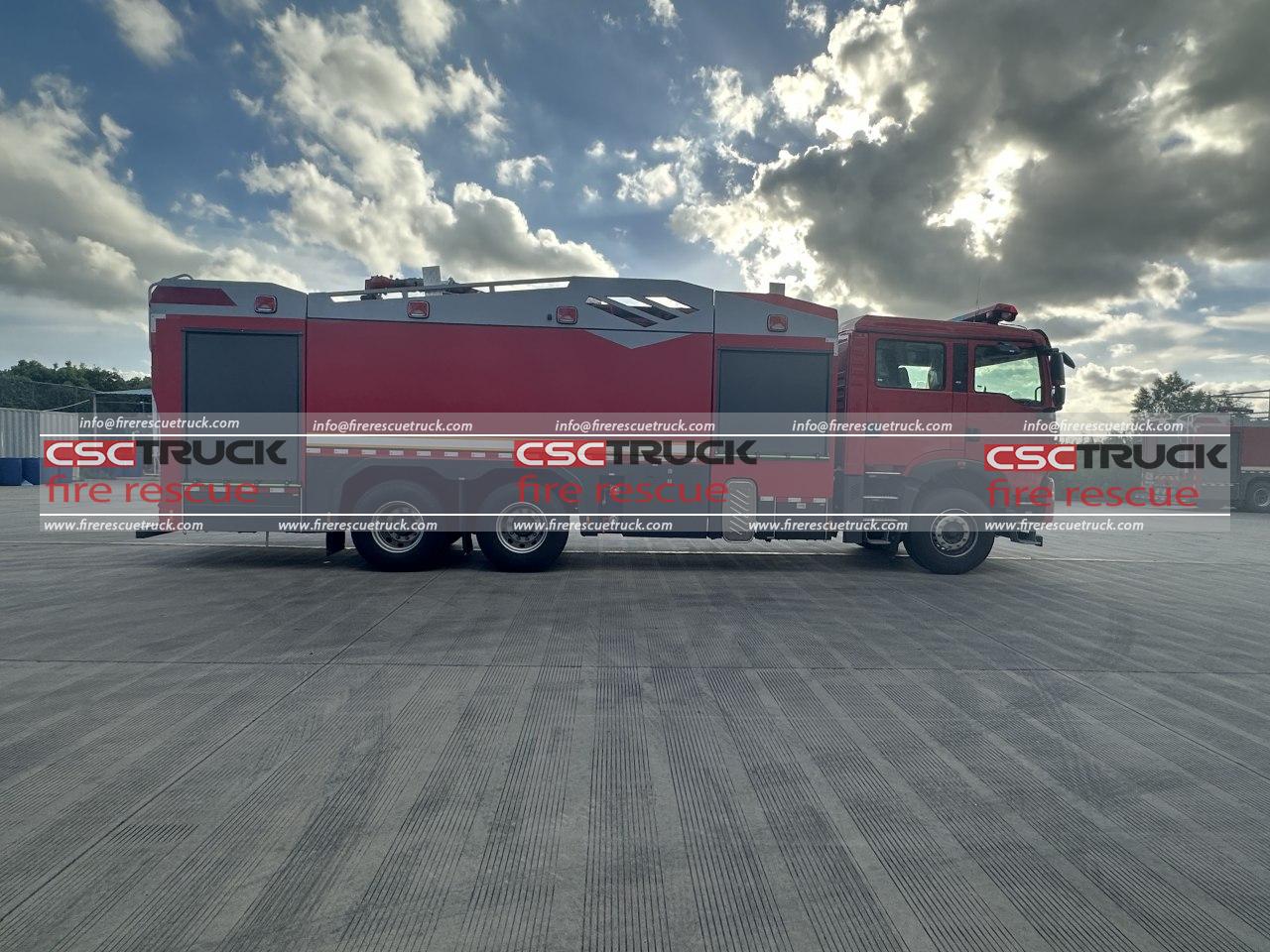

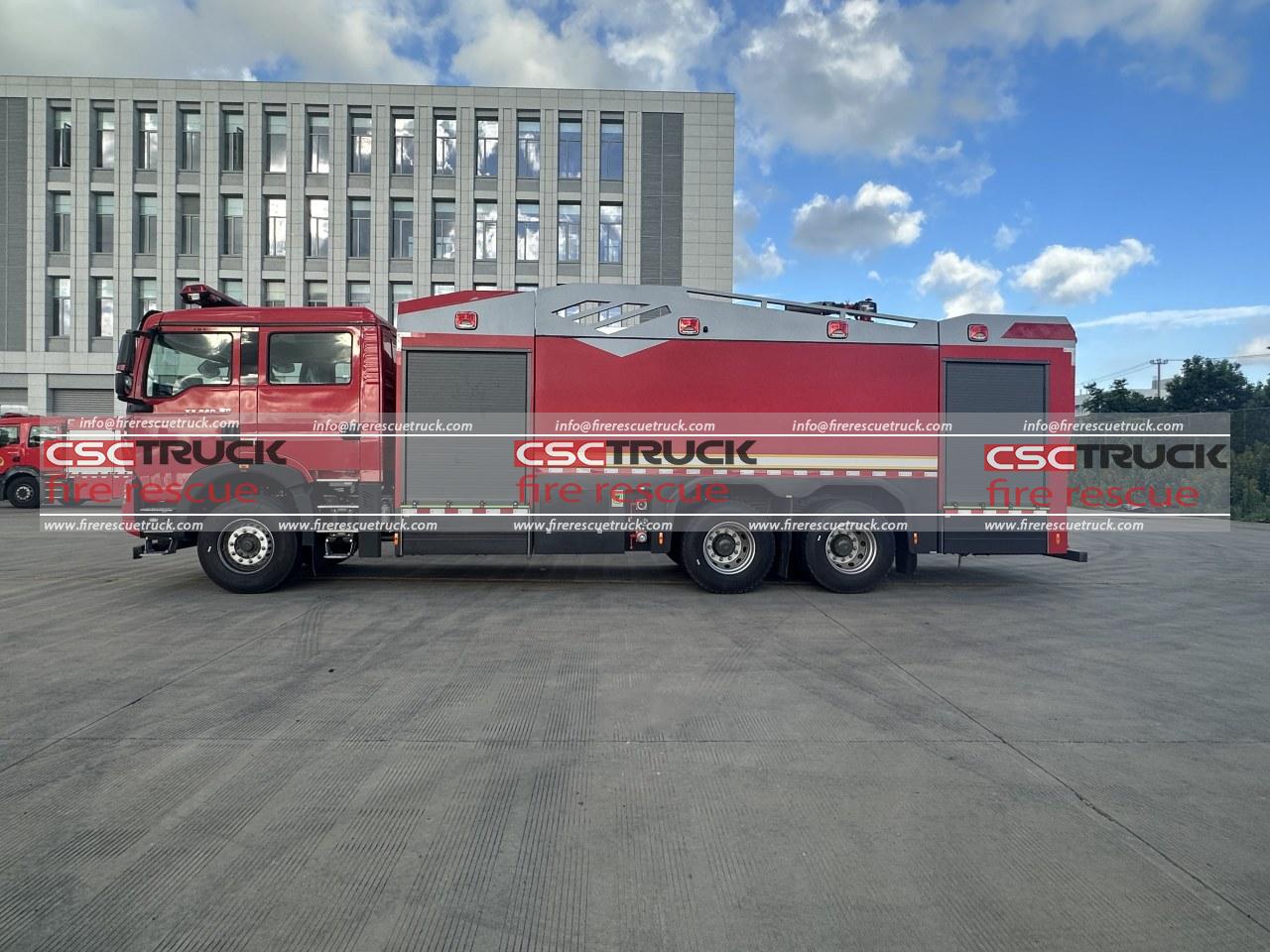

The HOWO 15,000L water foam fire engine, manufactured by CSCTRUCK Fire Rescue Truck, is a robust and efficient firefighting vehicle designed to tackle a wide range of fire emergencies. Built on the durable HOWO/ZZ1257V4647B1 chassis model, this 6×4 drive fire engine is powered by the WP12.400E201 engine, delivering 400 horsepower with a Euro 3 emission standard, making it suitable for high-performance applications while maintaining environmental compliance.

This fire engine is equipped with a dual tank system, comprising a 12,000-liter carbon steel water tank and a 3,000-liter 304 stainless steel foam tank, ensuring versatility and capacity for both water and foam-based firefighting. Its advanced CB10/60 fire pump operates at 60 liters per second at a normal pressure of 1.0 MPa, with a flow rate of 3,520±50 revolutions per minute. This makes it highly effective in pumping large volumes of water or foam rapidly to the fire site.

The PL48 fire monitor, integrated into the system, boasts a rated flow of 48 liters per second and a rated pressure of 0.8 MPa, with an impressive shooting range of 75 meters for water and 70 meters for foam. These specifications ensure that the engine can handle fires in both urban and industrial settings, reaching high or distant targets effectively.

The HOWO fire engine‘s combination of high capacity, reliable performance, and advanced firefighting equipment makes it an essential tool for fire departments and emergency services requiring a powerful and adaptable response vehicle.



FEATURES



1. Tank Capacity and Material Construction:
   • Water Tank: 12,000 liters, made from durable carbon steel.
   • Foam Tank: 3,000 liters, constructed with 304 stainless steel for corrosion resistance.
2. Chassis and Drive System:
   • Chassis Model: HOWO/ZZ1257V4647B1.
   • Drive Type: 6×4, ensuring robust off-road and on-road performance.
3. Powerful Engine:
   • Engine Model: WP12.400E201.
   • Power Output: 400 horsepower.
   • Emission Standard: Compliant with Euro 3 regulations.
4. Advanced Fire Pump System:
   • Model: CB10/60, delivering a flow rate of 60L/s at 1.0MPa normal pressure.
   • Pump Speed: Operates at 3,520±50 rpm for efficient water delivery.
5. High-Performance Fire Monitor:
   • Model: PL48, with a rated flow of 48L/s and a pressure of 0.8MPa.
   • Shooting Range: Reaches up to 75 meters with water and 70 meters with foam.



SPECIFICATION



Technical Specification
Truck	Make/Model Line	HOWO	6X4 LHD
	Chassis Model	HOWO	ZZ1257V4647B1
	Engine Model//emission	HOWO	WP12.400E201/ Euro 3
	Horsepower	400hp
	Front /Rear loading	9.5T+16*2T
	Tire Size	12.00R20
	Wheelbase	4600+1350mm
	red color, 6 persons allowed, air conditioning, power assist, radio, MP3, etc.
Cabin	Mode	Double cab
	People	2+4 person
	Material	High-quality Q235 carbon steel
	The seats	The seats in the rear section should be made in the form of a locker with mounts for breathing apparatus for firefighters in the quantity of 4 units and 4 units of reserve tanks and equipped with safety belts for all members of the truck crew. The seat cushions of the TCC should be folded to ensure access to lockers under the seats.

Water tanker	Capacity	12,000Liters
	Shape	round Cylindrical
	Material	Carbon steel
	Thickness	shell: 5mm
	Reinforcing ribs	Installed on the surface of the sewer tanker to increase the strength of the tank
	Tank Testing	The tank is hydrostatically tested.
Foam tanker	Capacity	3000Liters
	Shape	round Cylindrical
	Material	304 stainless steel
	Thickness	shell: 5mm
	Reinforcing ribs	installed on the surface of the sewer tanker to increase the strength of the tank
	Tank Testing	The tank is hydrostatically tested.

Liquid tanks
Pump drive system:
Power take-off (PTO) System:
Installation method:		Sandwich type
Cooling mode:		Circulating water cooling
Transmission shaft:
High-balance precision transmission shaft, using a special middle support connection.

Water outlet ports and suction inlets (304 stainless steel)
Fire Pump	Make/Model	CB10/60
	Origin	China
	Normal Pressure	60L/[email protected]
	Outlet Pressure	1.00MPa
	Rated RPM	3520±50r/min
	Axial Power	106kw

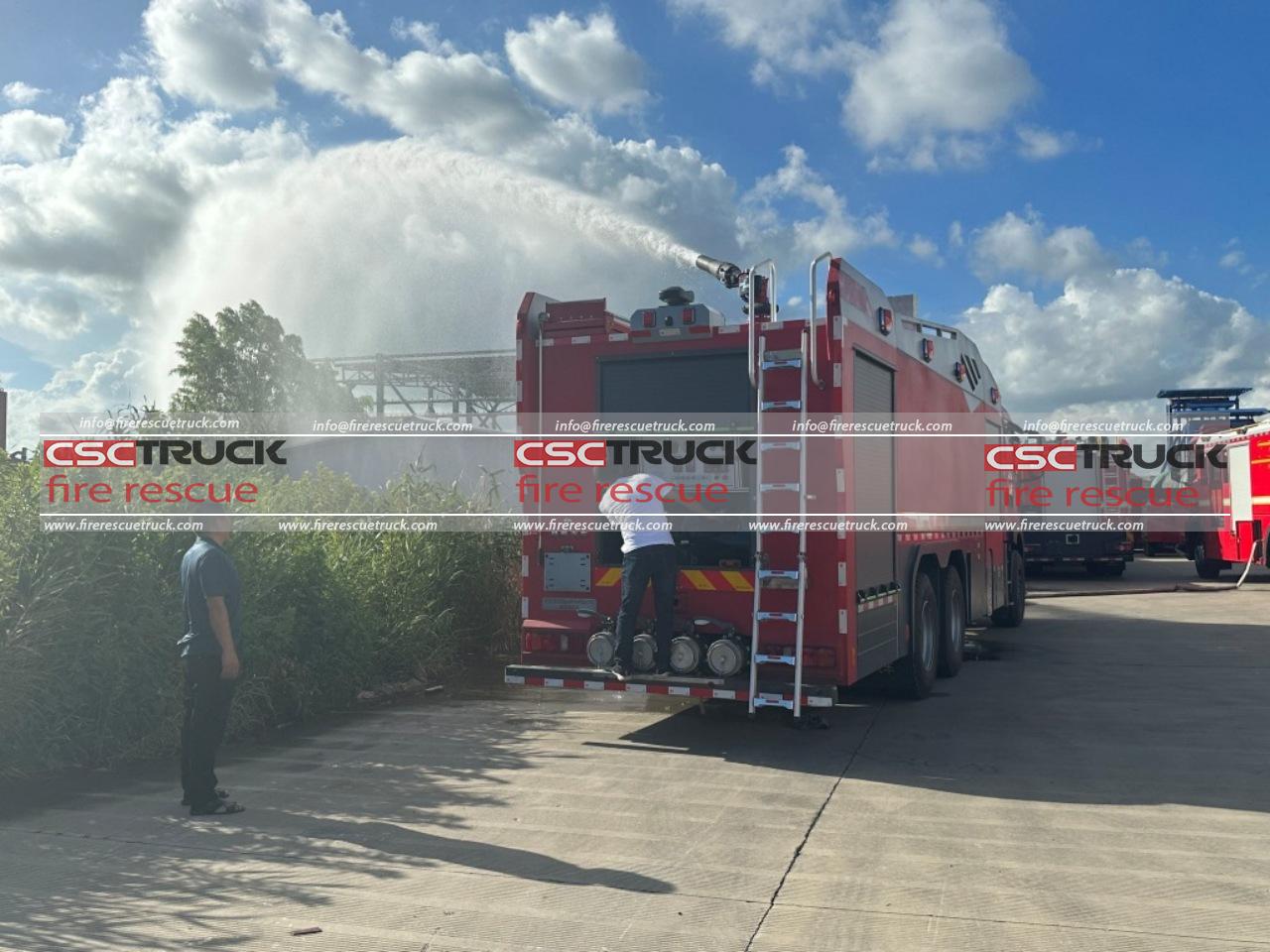

Fire Monitor	Make/Model	PL48
	Monitor Type	Manual
	Rated flowing	48L/s
	Rated pressure	0.8mpa
	Origin	China
	Range	Water≥75m
		Foam≥70m
	Horizontal rotation	0°-360°

Pipe system	Material	High-quality steel pipe
	Pipe Line inlet	1 unit DN100 inlet behind pump room
	Filling pipe	1 unit DN65 port at each side of the water tank (2 units)
		1 unit DN65 pump filling water tank.
	Pipe Line outlet	1 unit DN65 at each side of the pump room (2 units), with valve
	Cooling pipe	Cooling pipe and control valve for PTO
Equipment box and pump room:
Material :	The equipment box, pump room, and inner frame are made of high-strength carbon steel.

Structure:

The framework is the welded structure of all carbon steel frames where equipment boxes are in the front and the pump room is at the back. The outer skin is aluminum alloy plate bonding technology. Interior trim panels and base plates are made of carbon steel.

Storage compartments for equipment with suitable fixing facilities with sliding drawers and fixed shelves to safely and easily retain equipment.

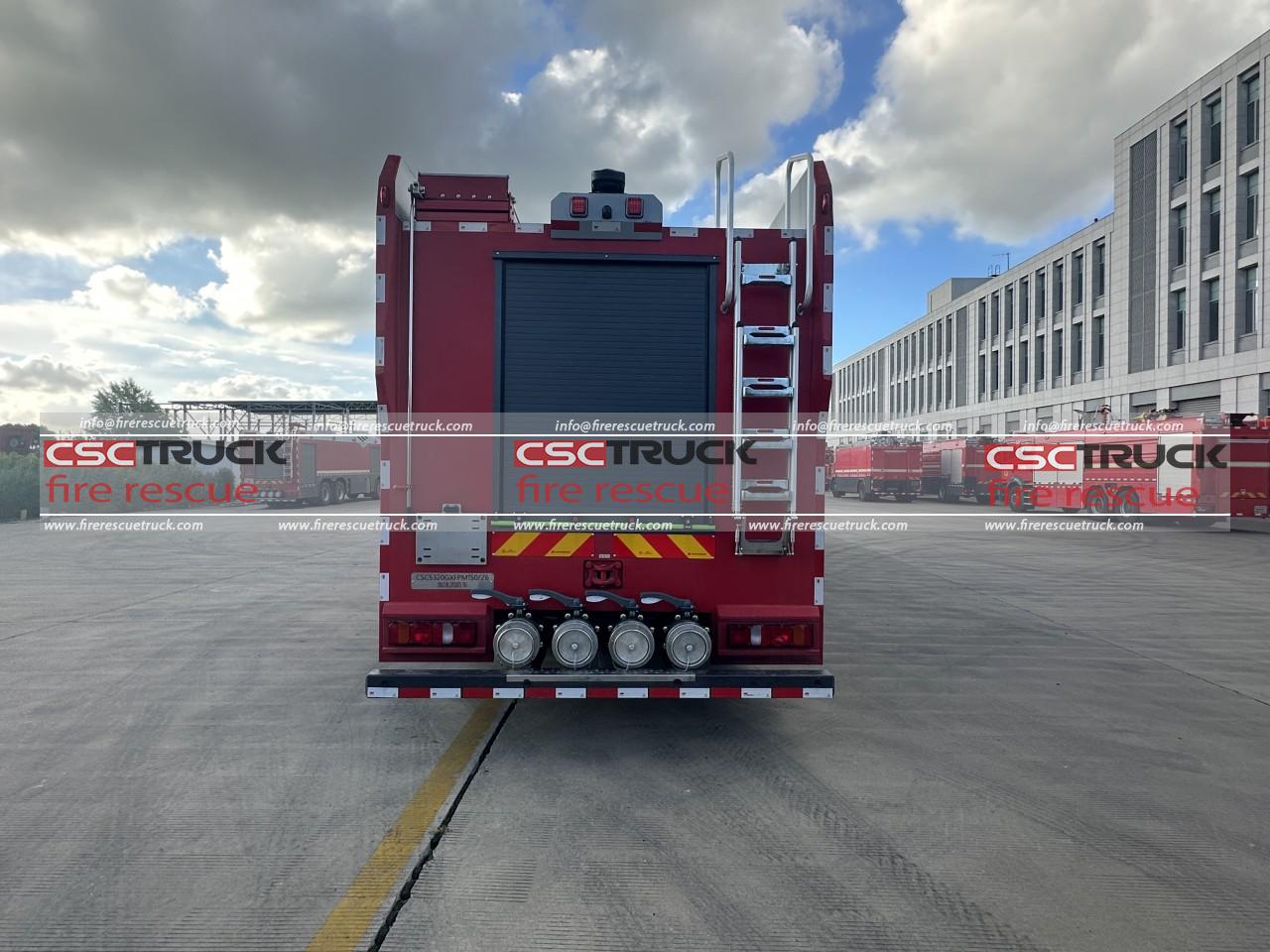

The pump compartment is located at the rear of the vehicle.

It is closed by a roller shutter or a steel plate at the rear. Roller shutter doors:

Anodized roof-roll type shutters with strips as well as lift bars

Each shutter is provided with automatic illumination when the Shutter is opened.

lockers with automatic inside illumination just for reference
Electrical equipment
Auxiliary lighting	The firemen’s room, pump room, and equipment box are respectively provided with lights, operating instrument panel is provided with lighting and indicators.

Strobe light	Red and blue strobe lights are installed on both sides of the body.
Warning device	A long row of all-red alarm lights mounted on the roof of the cab.
	An alarm with a control box in front of the driver.
Projector	Install a 35W projector at the rear of the upper structure.
Painting	The exterior and interior of the tank are spray painted with high-quality paint.

Accessories
No.	Item					QTY
1	Suction Pipe					2
2	Water Filter					1
3	Water separator					1
4	Water collector					1
5	Suction Pipe Spanner					2
6	Overground Hydrant Spanner					1
7	Underground Hydrant Spanner					1
8	Fire hose					6
9	Fire hose					2
10	Fire hose					1
11	Reducer union					1
12	Hose bandage					4
13	Hose strap					4
14	Water-stream nozzle					1
15	Diffuser nozzle					1
16	Flowering water nozzle					1
17	Air foam nozzle					1
18	Outer pipette assembly					1
19	Shovel					1
20	Crowbar					1
21	Fire axe					1
22	Fire hammer					1
23	Portable ladder					1
24	Extinguisher					1

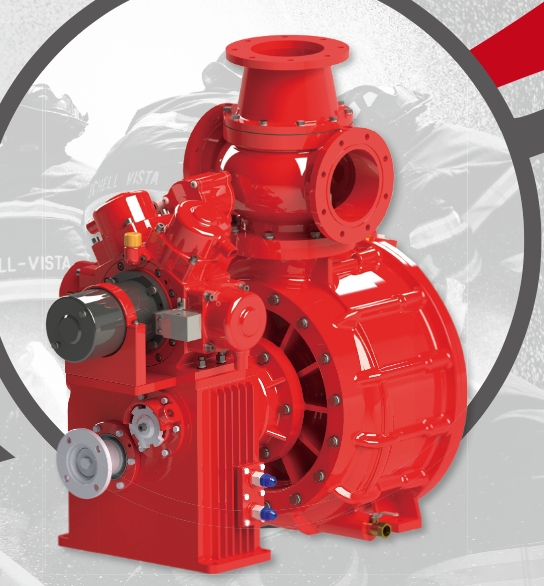

                                     Pump room                                                                    Fire pump
