BRIEF

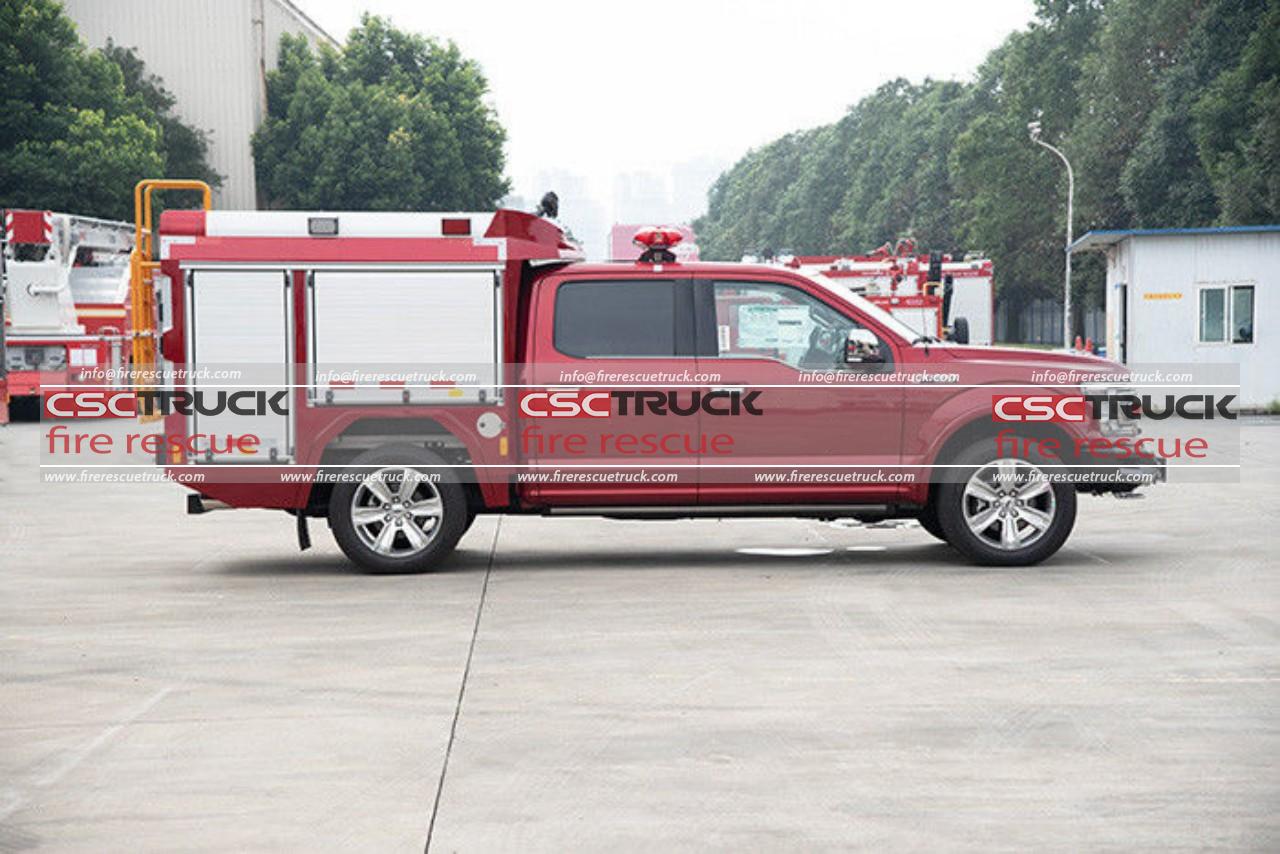

The Ford 150 4WD rapid intervention vehicle, produced by CSCTRUCK Fire Rescue Truck, is a high-performance emergency response unit built for speed, agility, and dependability in critical rescue missions. Engineered on the durable Ford 150 chassis, this rescue fire truck combines advanced automotive engineering with specialized firefighting capabilities to ensure rapid deployment in urban, rural, and off-road environments.
Equipped with a V6 engine delivering an impressive 280 kW of power, the Ford 150 RIV achieves a maximum speed of 175 km/h, making it one of the fastest responders in its class. Its 4×4 drive system ensures exceptional traction and stability across all terrains—whether navigating rough mountain roads, sandy coastal areas, or flooded streets. Meeting the stringent Euro 6 emission standard, the vehicle not only offers superior performance but also adheres to modern environmental regulations.
For rescue and recovery operations, the vehicle features a robust K8000XF front winch with a rated tension of 3,629 kg, enabling it to handle demanding towing and pulling tasks with ease. This feature enhances operational flexibility, allowing the team to clear obstacles, recover vehicles, or access difficult-to-reach areas during emergencies.
CSCTRUCK Fire Rescue Truck’s precision engineering ensures that every component—from the reinforced body structure to the high-output lighting system—is optimized for durability, efficiency, and quick action. The compact yet powerful Ford 150 rapid intervention vehicle is ideal for initial firefighting response, rescue missions, and emergency medical support, where every second counts.
In summary, this model embodies speed, strength, and smart design, making it a trusted partner for modern fire departments seeking rapid and reliable intervention capabilities.
FEATURES
- High-Performance Powertrain – Equipped with a robust V6 engine delivering 280 kW of power, the vehicle provides strong acceleration and dependable performance for rapid emergency response in varied terrains.
- All-Terrain 4×4 Drive System – The 4-wheel-drive configuration ensures excellent traction and stability, enabling the vehicle to operate effectively on off-road, rugged, or slippery surfaces during rescue missions.
- Advanced Environmental Compliance – Built to meet the Euro 6 emission standard, the vehicle combines powerful output with reduced emissions, supporting eco-friendly and efficient operation.
- Heavy-Duty Front Winch System – Fitted with a K8000XF front winch rated at 3,629 kg tension, it offers superior pulling and recovery capability, essential for clearing debris or towing in emergency scenarios.
- High-Speed Emergency Response – With a maximum speed of 175 km/h, the Ford 150 rapid intervention vehicle allows firefighters or rescue teams to reach critical situations swiftly, reducing response time in life-saving operations.
SPECIFICATION
1. Chassis |
|
| 1.1 | Chassis: Ford 150 4×4 |
| 1.2 | Engine:
2.1 Engine power: 280Kw 2.2 Engine model: V6 2.3 Number of cylinders: 6 2.4 Emission Standard: Euro 6 2.5 Transmission (type): 10-speed automatic 2.7 Torque (Nm): 672 2.7 Fuel tank capacity (L): 136 2.8 Fuel type: diesel |
| 1.3 | Drive Manner: 4×4 |
| 1.4 | Max. Speed(km/h): 175 |
| 1.5 | Cabin:
5.1 Structure doors, original double row cabin 5.2 Seats:2＋3 |
| 1.6 | Wheelbase(mm): 3,685 |
| 1.7 | Number of wheels: 4 |
| 1.8 | DimensionS(LxWxH): 5,907*2,083*1,954cm |
| 1.9 | Standard configuration: ABS/EBD/EBA/ASR/ESP, 360-degree panoramic image, reversing radar, keyless start system, keyless entry function, tire pressure alarm, uphill assistance, steep slope descent, electric adjustment of the main and passenger seats, Dual airbags, electric windows, electric adjustment of rear-view mirrors, up and down adjustment of steering wheel, large 8-inch center console color screen, driving computer display, Bluetooth/car phone. In addition, a winch is installed at the front of the vehicle, and a rear trailer hook is installed at the rear of the vehicle. |
| 1.10 | Max. Weight: 2,475kg |
2. Rear Superstructure |
|
| 2.1 | Structure: The carriage adopts a high-strength PP-C composite material welding structure, which is modified based on the original car body. |
| 2.2 | Equipment door:

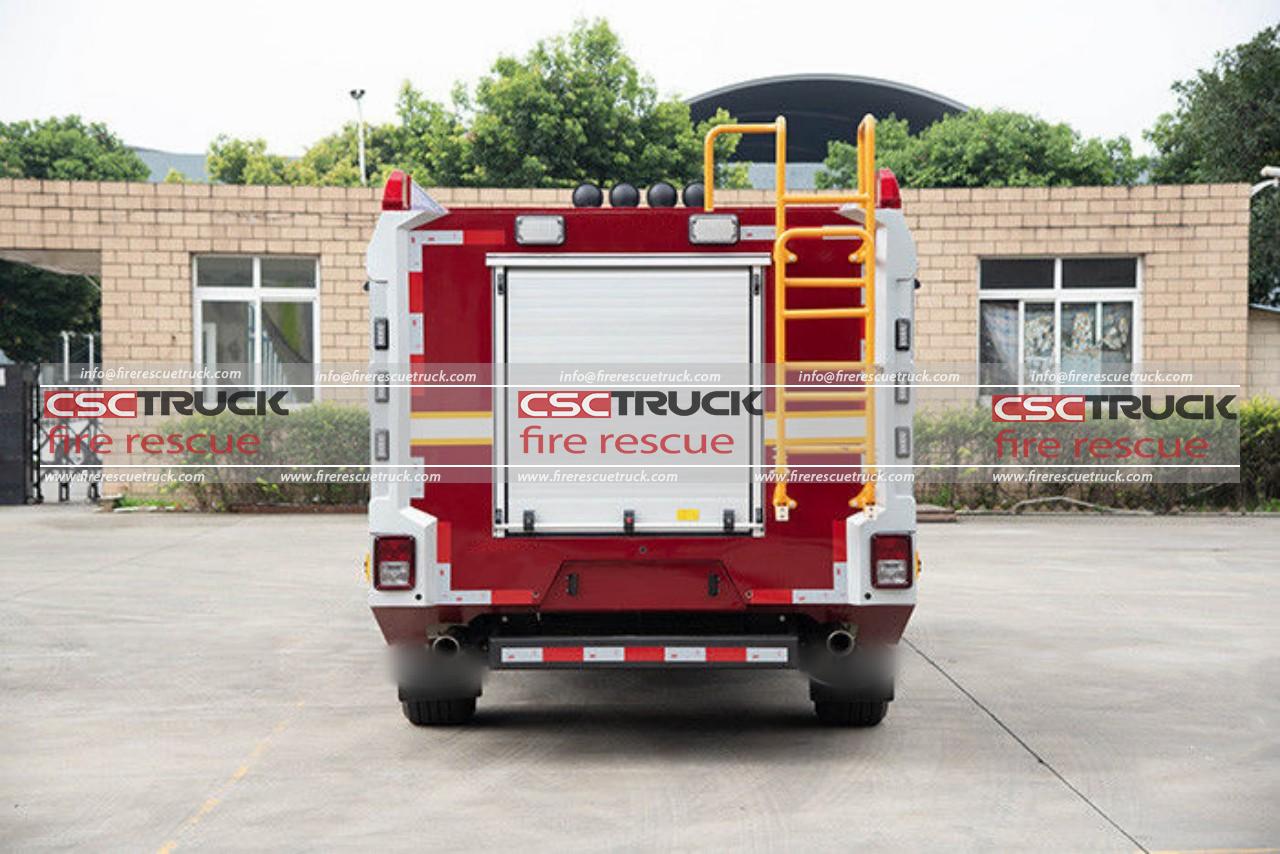

(1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light, high-quality aluminum alloy, which is flexible to open and close, good at sealing, low noise, beautiful in appearance, light, and reliable. All rolling doors can be opened with 1 key. (2) The rear equipment box door adopts a gas spring up and down door. |

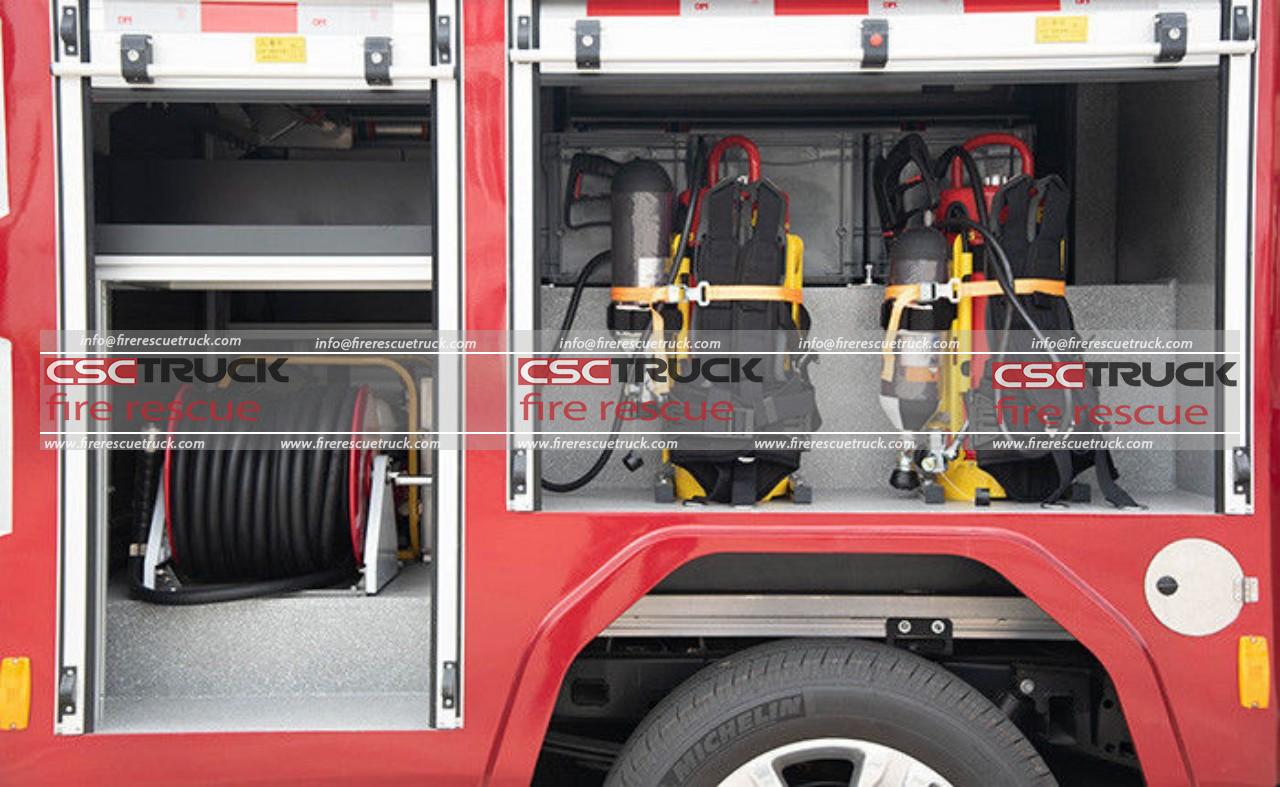

| 2.3 | Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment. |
| 2.4 | Equipment Layout Principle:
★ Design equipment integration according to battle organization and battle deployment; ★ Design various equipment brackets according to ergonomic principles; ★ Place the equipment according to the logical relationship and frequency of use; ★ Stand on the ground or pedals, take and place fire-fighting equipment in 2 actions. |
3. Front Winch |
|
| 3.1 | Brand: Champion
Model: K8000XF Rated tension: 3,629 Kg |
| 3.2 | Traction wire: ∮8X29M |
4. Electrical system |
|
| 4.1 | Install 6 off-road lights on the front of the vehicle |
| 4.2 | The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab. |
| 4.3 | 2 flashing lights are provided on the upper part of each side of the carriage. |
| 4.4 | There are 2 lights at the back of the equipment box. |
5. On-board equipment |
|
| 5.1 | 5 sets of special warning tapes |
| 5.2 | On-board toolbox 1 set. |
