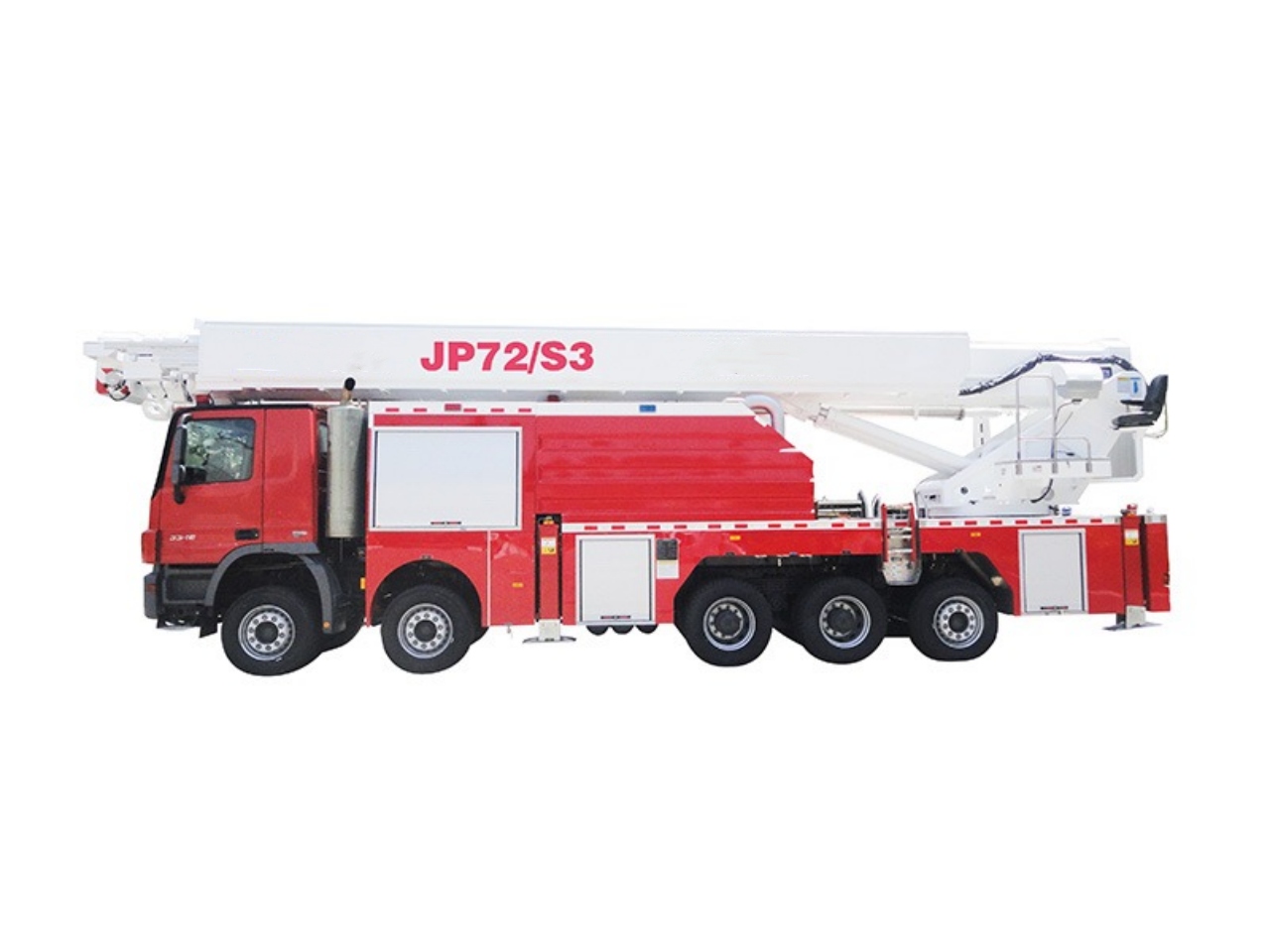

Benz 72M Water and Foam Tower Fire Truck

Make/Model:	CSCTRUCK/CSCTFT072
Water+Foam:	6,000+310kg
Overall Dimensions(LxWxH):	12,930×2,500×3,920mm
Total weight:	48,650kg
Max. travel speed:	≥90km/h
Max. net power:	350kW
Rated working height:	72m
Max. working radius:	28m
Water monitor rated flow:	≥80L/s
Water monitor rated reach:	≥70m
Fire-rated flow:	≥170L/s
Fire-rated pressure:	≥1MPa

Truck Enquiry

Category: Tower Fire Truck

Description
Reviews (0)

BRIEF

The Benz 72M water and foam tower fire truck produced by CSCTRUCK Fire Rescue Truck is built on a German-imported Mercedes-Benz Actros 5548E5/10×4 Euro V chassis, ensuring reliable and robust performance. This versatile vehicle combines a water tank, high-spraying system, and foam capabilities, making it an ideal solution for firefighting in urban high-rise buildings and petrochemical facilities. It is designed to safeguard lives and property with advanced fire protection technology. Key features include comprehensive safety protection devices, a 100-meter wireless remote control for precise operation, and a real-time fire monitoring system. These cutting-edge technologies make the Benz 72M tower fire truck a superior tool for fire emergencies, ensuring enhanced operation efficiency and safety. With its powerful features and durable design, the Benz 72M water and foam tower fire truck is essential for modern firefighting, providing optimal protection for communities and infrastructure.

FEATURES

● The main operational parameters lead in their class: An operating height of 72m, a range of 28m, and a load capacity of 9,100kg.

● Equipped with a powerful firefighting system featuring a US HALE 8FC fire pump with a 10,000L/min flow rate, and a US Elkhart Brass PLKD80-7250EXM electric-controlled fire monitor. A Benz original full-power takeoff for dependable performance drives the water pump.

● Utilizes advanced electro-hydraulic proportional control technology for smooth operation and excellent mobility. The drop-off outriggers offer both manual and automatic leveling modes, with a one-click functionality.

● The Benz 72M water and foam tower fire truck features a dual-redundant signal control system with high integration and reliability, based on PLC and CAN bus distributed control technology.

SPECIFICATION

Item	Unit	Parameter
Overall length	mm	12,930
Overall height	mm	3,920
Overall width	mm	2,500
Total weight	kg	48,650
Extinguishant-rated load weight
Water	kg	6,000
Foam	kg	310
Dry powder	kg	–
Max. travel speed	km/h	≥90
Max. net power	kW	350
Rated working height	m	72
Max. working radius	m	28
Time for deploying boom	s	≤200
Time for deploying outriggers	s	≤30
Monitor
Water monitor-rated flow	L/s	≥80
Water monitor-rated reach	m	≥70
Water pump
Fire-rated flow	L/s	≥170
Fire-rated pressure	MPa	≥1
