BRIEF

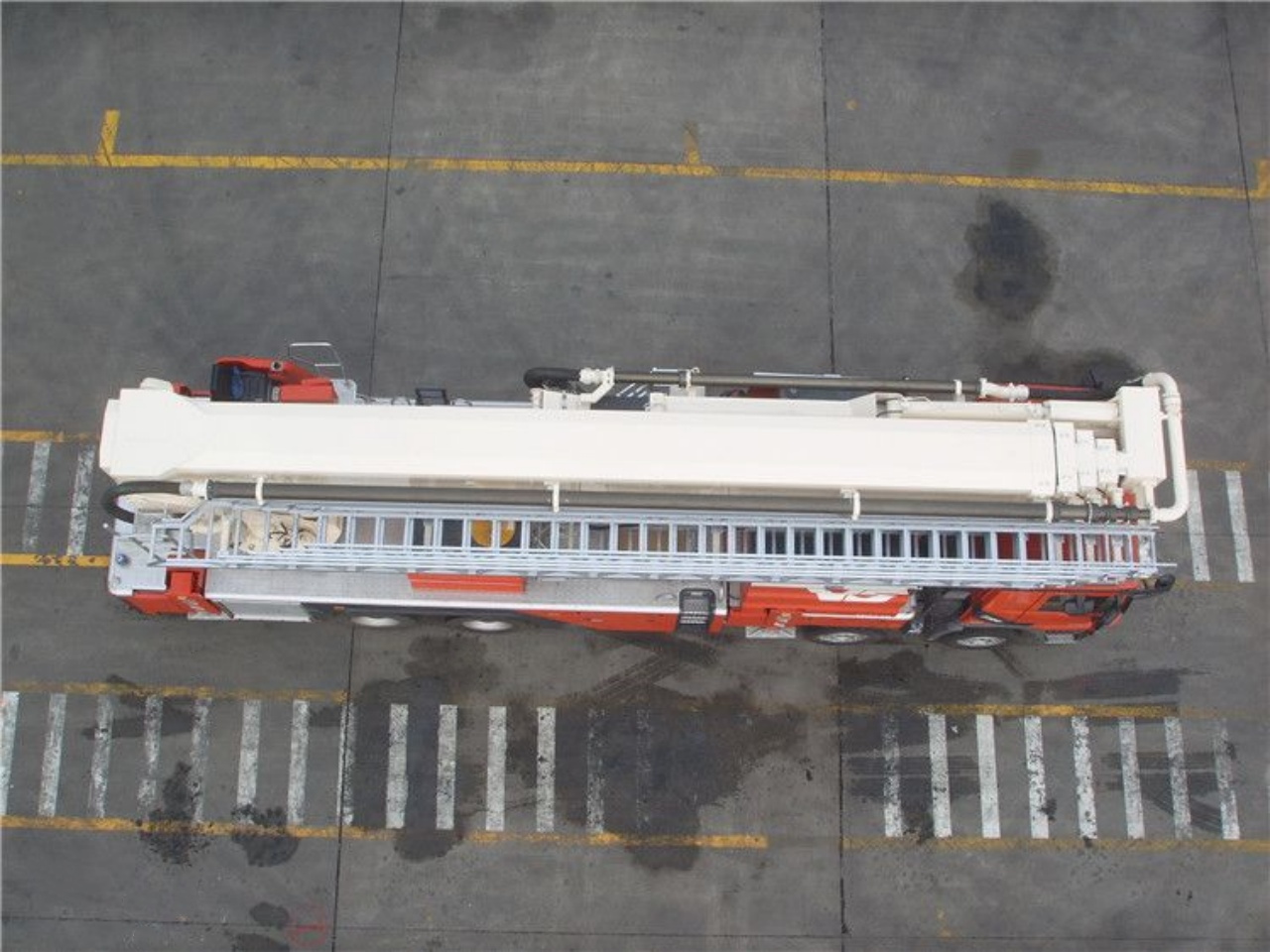

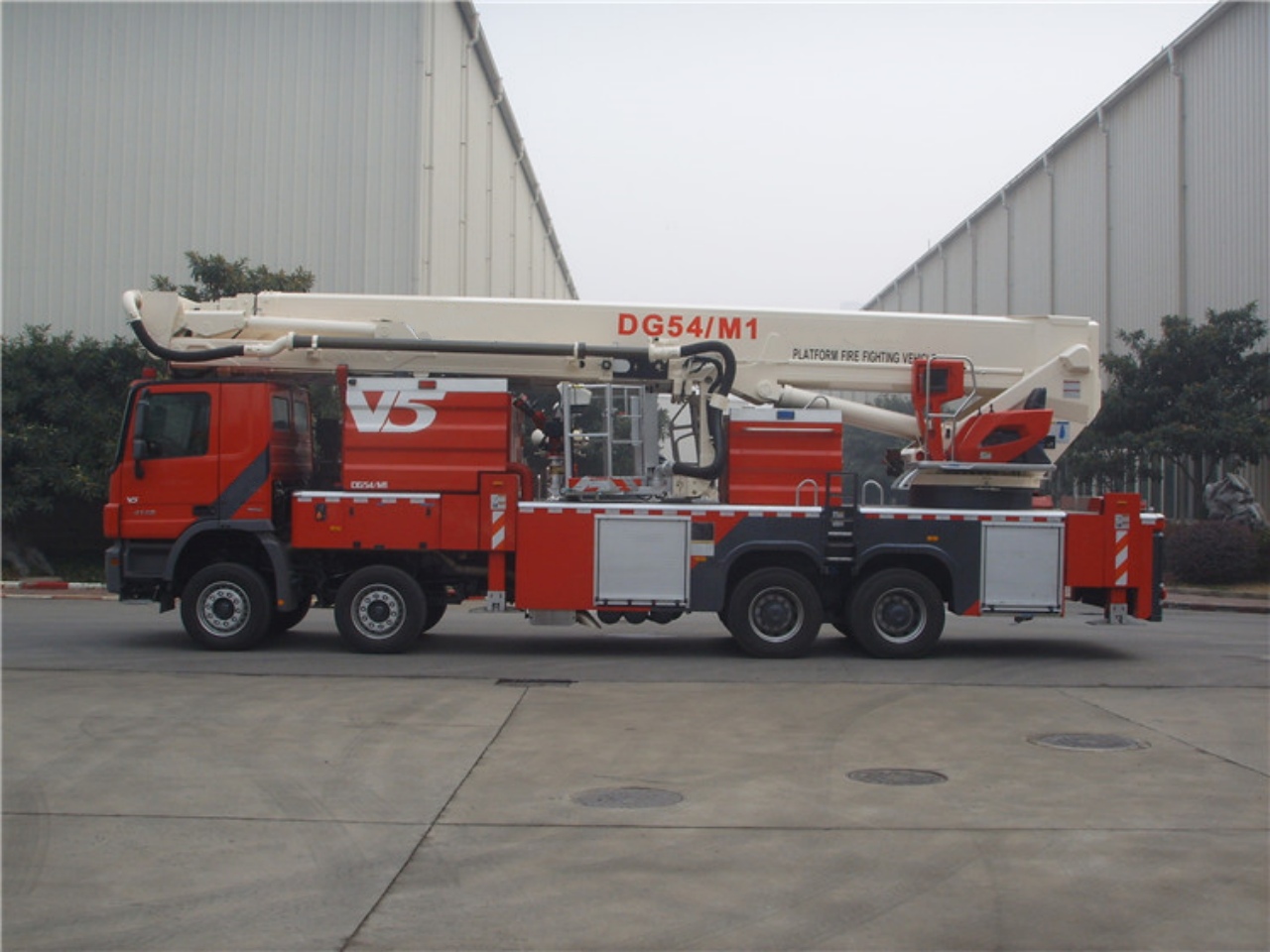

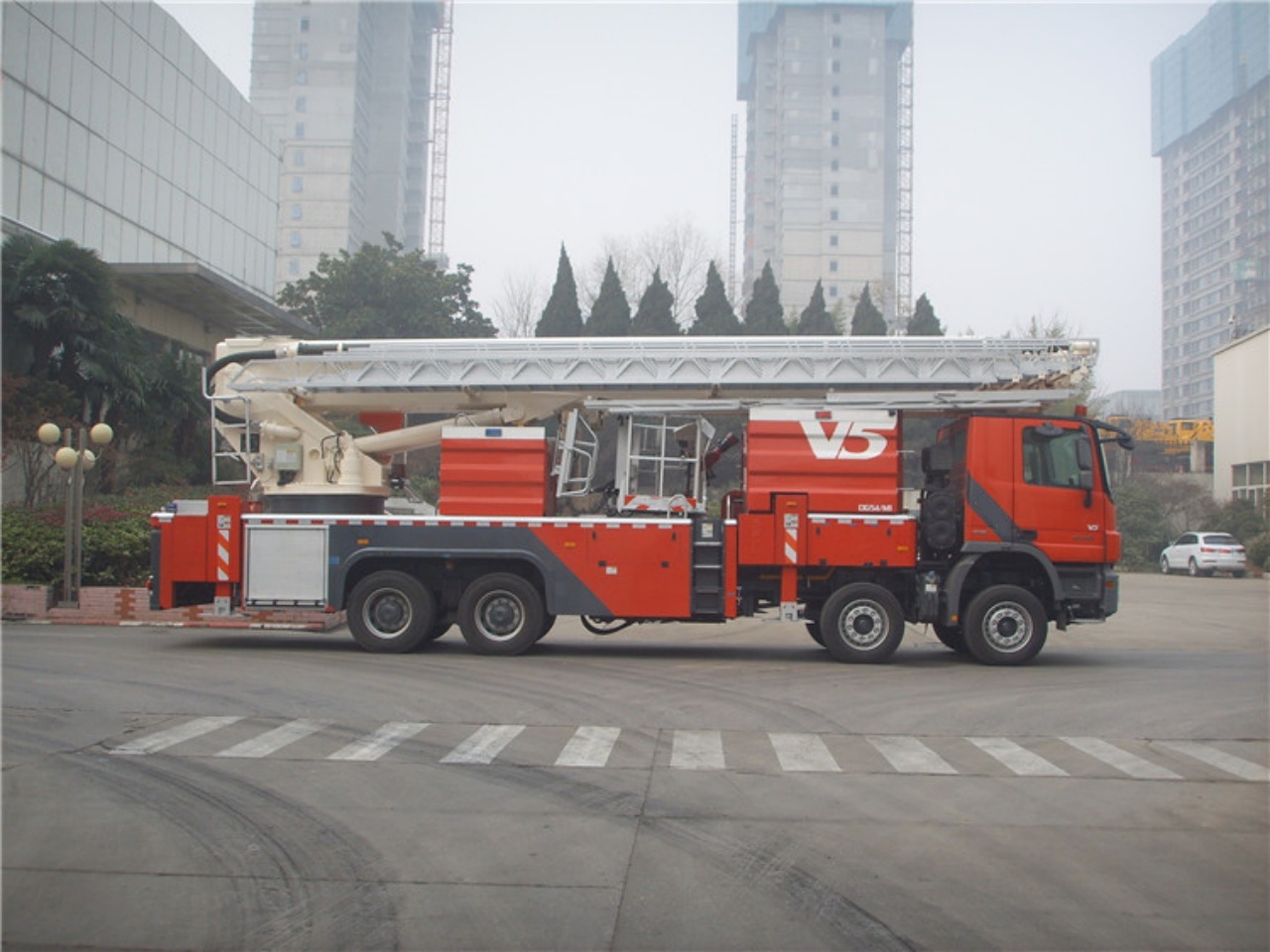

The Benz 54M telesquirt fire truck, manufactured by CSCTRUCK Fire Rescue Truck, is a state-of-the-art emergency response vehicle designed for high-rise firefighting and rescue operations. This truck features a maximum working height of 54 meters and a 25-meter maximum operating radius, providing exceptional reach and maneuverability in complex scenarios.
Built on a robust Benz chassis with an 8×4 drive configuration, the truck is engineered for reliability and efficiency. It boasts a top speed exceeding 90 km/h, enabling rapid response to emergencies, and is powered by an engine delivering over 450 horsepower, compliant with the EURO V emission standard.
The telesquirt fire truck is equipped with advanced firefighting systems, including a fire pump rated for a flow of at least 70 L/s and a pressure of 1.6 MPa. Its integrated water monitor delivers a rated flow of 64 L/s at a pressure of ≤1.0 MPa, with a shooting range of at least 65 meters, ensuring precise and effective water delivery. Additionally, the foam monitor, rated at 64 L/s with a pressure of ≤1.0 MPa, achieves a range of at least 60 meters, making it highly effective for chemical and flammable liquid fires.
The telesquirt fire truck‘s maximum slewing speed of 0.1 to 1.0 r/min allows smooth and accurate positioning of the telesquirt boom, enhancing operational efficiency. The vehicle is designed to meet the demanding requirements of modern firefighting, combining power, precision, and versatility to tackle a wide range of emergencies with confidence.
FEATURES
- Impressive Operational Reach:
- Maximum working height of 54 meters and a maximum operating radius of 25 meters, providing extensive coverage during firefighting and rescue operations.
- High-Performance Fire Pump:
- Rated flow of ≥70 L/s with a rated pressure of ≥1.6 MPa, ensuring powerful and consistent water delivery.
- Versatile Monitors:
- The water monitor delivers 64 L/s at a pressure of ≤1.0 MPa, with a shooting range of ≥65 meters.
- The foam monitor operates at the same flow rate and pressure, with a shooting range of ≥60 meters.
- Advanced Chassis and Drive:
- Built on a Benz chassis with an 8×4 drive type, ensuring stability and maneuverability under various conditions.
- Powerful and Eco-Friendly Engine:
- Engine power exceeding 450 hp, compliant with EURO V emission standards, and capable of a maximum speed of ≥90 km/h.
SPECIFICATION
| Benz 54M Telesquirt Fire Truck | |||
| Boundary dimensions(LxWxH) | 11,760×2,500×4,000mm | ||
| Full mass | 41,600kg | ||
| Maximum speed | ≥90km/h (electric speed limit) | ||
| Minimum turning diameter | ≤24m | ||
| Approach angle | ≥23° | ||
| Departure angle | ≥9° | ||
| Maximum gradability | ≥25% | ||
|
Outrigger span |
Longitudinal span | 6,700mm | |
| Horizontal span | 8,000mm | ||
| Work platform load | 500kg | ||
| Maximum working height | 54m | ||
| Maximum operating radius | 25m | ||
|
Elevating angle of boom |
The elevating angle of the telescopic boom is 0 to 83 degrees, and that of boom NO.2 and telescopic booms is 0 to 177 degrees. | ||
| Rotation scope | 360° full-rotation | ||
| Spread time of outrigger | ≤35s | ||
| Time for lifting the boom to rated height and rotating 90° | ≤150s | ||
| Maximum slewing speed | 0.1~1.0r/min | ||
|
Fire pump |
Rated flow (L/s) | ≥70 | |
| Rated pressure (MPa) | ≥1.6 | ||
|
Fire fighting gun |
Water monitor |
Model | PLKD120ZB-3480 |
| Rated flow (L/s) | 64 | ||
| Rated pressure (MPa) | ≤1.0 | ||
| Range (m) | ≥65m | ||
|
Foam monitor |
Model | PLKD120ZB-3480 | |
| Rated flow (L/s) | 64 | ||
| Rated pressure (MPa) | ≤1.0 | ||
| Range (m) | ≥60m | ||
| The swing range of the monitor head | -45~+60 | ||
| -80~+90 | |||
