BRIEF

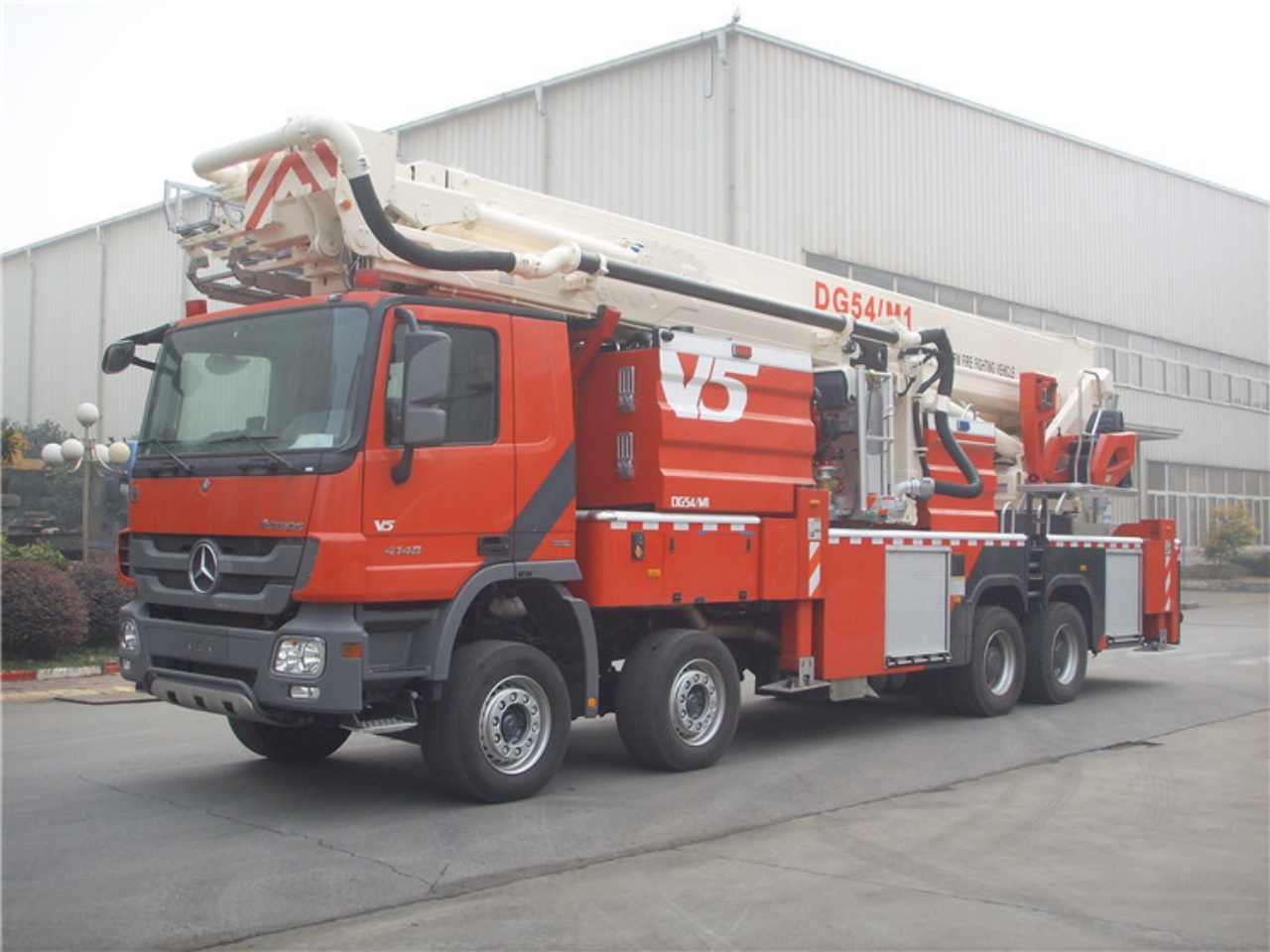

The Benz 54M aerial platform fire truck, manufactured by CSCTRUCK Fire Rescue Truck, is a state-of-the-art firefighting vehicle designed for high-rise operations and emergency rescue scenarios. Featuring a maximum working height of 54 meters and a maximum operating radius of 25 meters, this truck is well-suited for complex urban environments.
Built on a reliable Benz chassis with an 8×4 drive configuration, it offers excellent mobility and stability. The fire truck is powered by a >450 horsepower engine complying with the EURO V emission standard, enabling a maximum driving speed of ≥90 km/h. The aerial platform supports a work platform load of 500 kg, accommodating multiple rescuers and essential equipment. Its slewing speed ranges from 0.1 to 1.0 r/min, ensuring precision during operations.
The firefighting capabilities are underpinned by advanced water and foam systems. It includes a 3,400 kg water tank and a 2,000 kg foam tank, both connected to a PLKD120ZB-3480 firefighting gun. The fire pump, with a rated flow of ≥70 L/s and a pressure of ≥1.6 MPa, ensures high-performance delivery. The water monitor achieves a rated flow of 64 L/s, a pressure of ≤1.0 MPa, and a range of ≥65 meters. Similarly, the foam monitor delivers 64 L/s, ≤1.0 MPa, with a range of ≥60 meters, a swing range of -45° to +60° and head movement of -80° to +90°.
This aerial platform fire truck combines cutting-edge technology, robust performance, and exceptional reach, making it a critical asset for firefighting and rescue missions in modern urban settings.
FEATURES
- Aerial Platform Capabilities:
- Maximum working height: 54 meters.
- Maximum operating radius: 25 meters.
- Work platform load: 500 kg.
- Water and Foam Capacity:
- Water tank capacity: 3,400 kg.
- Foam tank capacity: 2,000 kg.
- Performance and Drive System:
- Engine power: >450 hp (EURO V emission standard).
- Drive type: 8×4.
- Maximum driving speed: ≥90 km/h.
- Firefighting Equipment:
- Fire pump rated flow: ≥70 L/s; rated pressure: ≥1.6 MPa.
- Water monitor (PLKD120ZB-3480 model):
- Rated flow: 64 L/s, rated pressure: ≤1.0 MPa, range: ≥65 meters.
- Foam monitor (PLKD120ZB-3480 model):
- Rated flow: 64 L/s, rated pressure: ≤1.0 MPa, range: ≥60 meters.
- Control and Operation:
- Maximum slewing speed: 0.1~1.0 r/min.
- Foam monitor swing range: -45° to +60°, and head movement: -80° to +90°.
SPECIFICATION
| Boundary dimensions(LxHxW) | 11,760×2,500×4,000mm | ||
| Full mass | 41,600kg | ||
| Maximum speed | ≥90km/h (electric speed limit) | ||
| Minimum turning diameter | ≤24m | ||
| Approach angle | ≥23° | ||
| Departure angle | ≥9° | ||
| Maximum gradability | ≥25% | ||

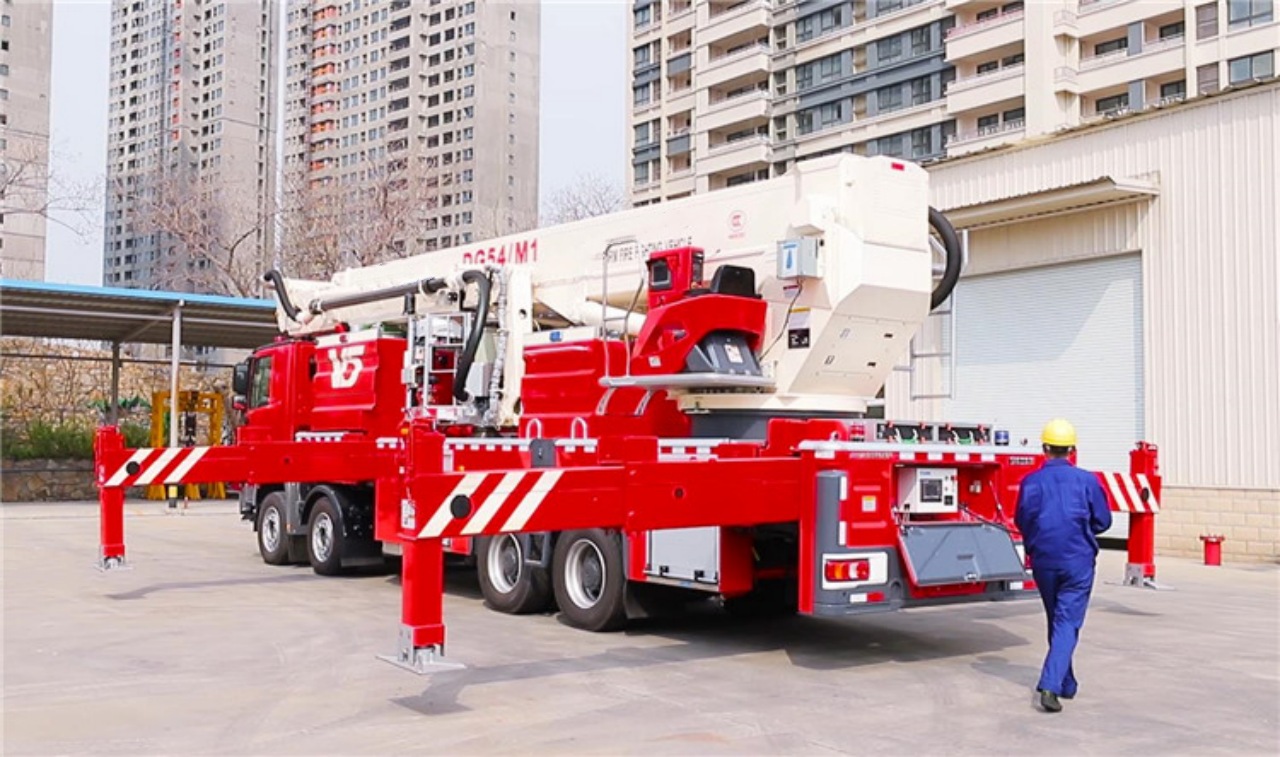

| Outrigger span | Longitudinal span | 6,700mm | |
| Horizontal span | 8,000mm | ||
| Work platform load | 500kg | ||
| Maximum working height | 54m | ||
| Maximum operating radius | 25m | ||
| Elevating angle of boom | The elevating angle of the telescopic boom is 0 to 83 degrees, and that of boom NO.2 and telescopic booms is 0 to 177 degrees. | ||
| Rotation scope | 360° full-rotation | ||
| Spread time of outrigger | ≤35s | ||
| Time for lifting the boom to rated height and rotating 90° | ≤150s | ||
| Maximum slewing speed | 0.1~1.0r/min | ||
| Fire pump | Rated flow (L/s) | ≥70 | |
| Rated pressure (MPa) | ≥1.6 | ||
| Fire fighting gun | Water monitor | Model | PLKD120ZB-3480 |
| Rated flow (L/s) | 64 | ||
| Rated pressure (MPa) | ≤1.0 | ||
| Range (m) | ≥65m | ||
| Model | PLKD120ZB-3480 | ||
| Foam monitor | Rated flow (L/s) | 64 | |
| Rated pressure (MPa) | ≤1.0 | ||
| Range (m) | ≥60m | ||
| The swing range of the monitor head | -45~+60 | ||
| -80~+90 | |||
