BRIEF

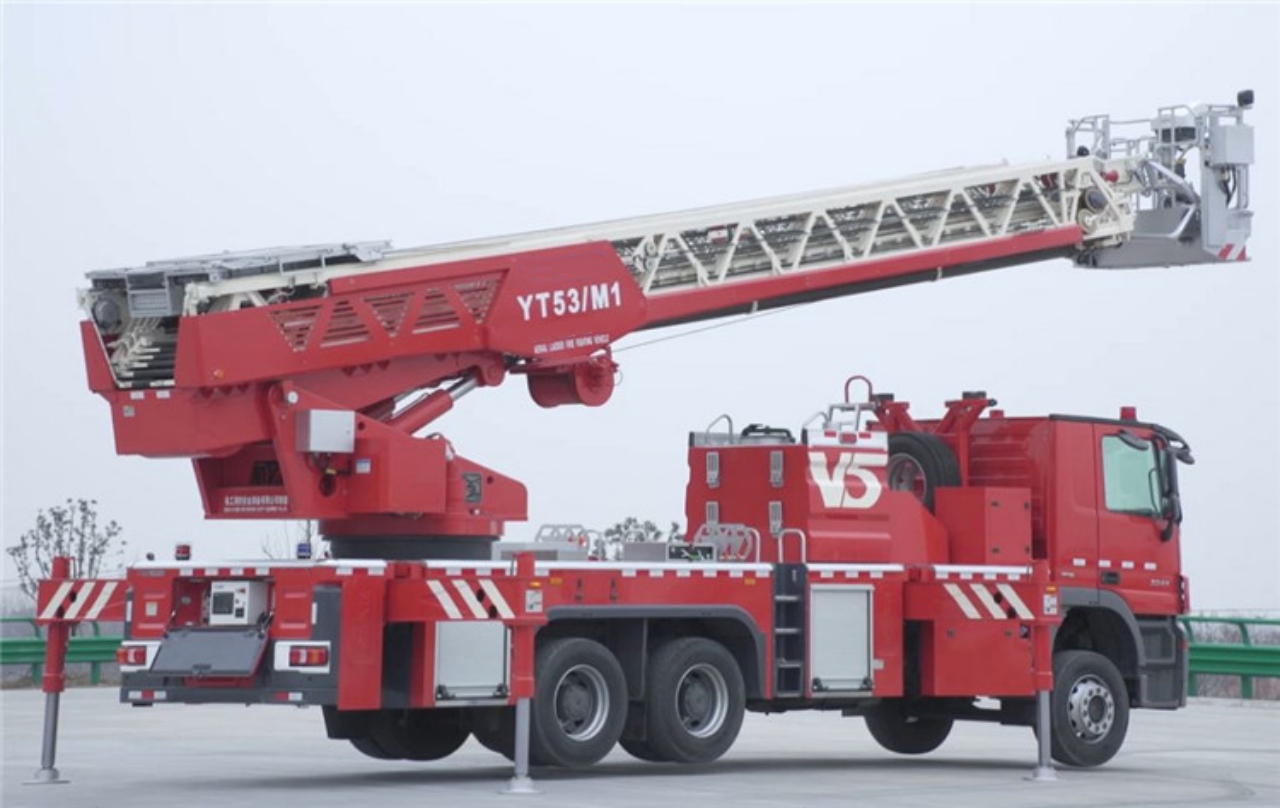

The Benz 53M telesquirt fire truck, produced by CSCTRUCK Fire Rescue Truck, is a cutting-edge vehicle designed to meet the demanding requirements of modern firefighting. Built on a reliable Benz chassis with a 6×4 drive configuration, this fire truck combines power, precision, and efficiency.

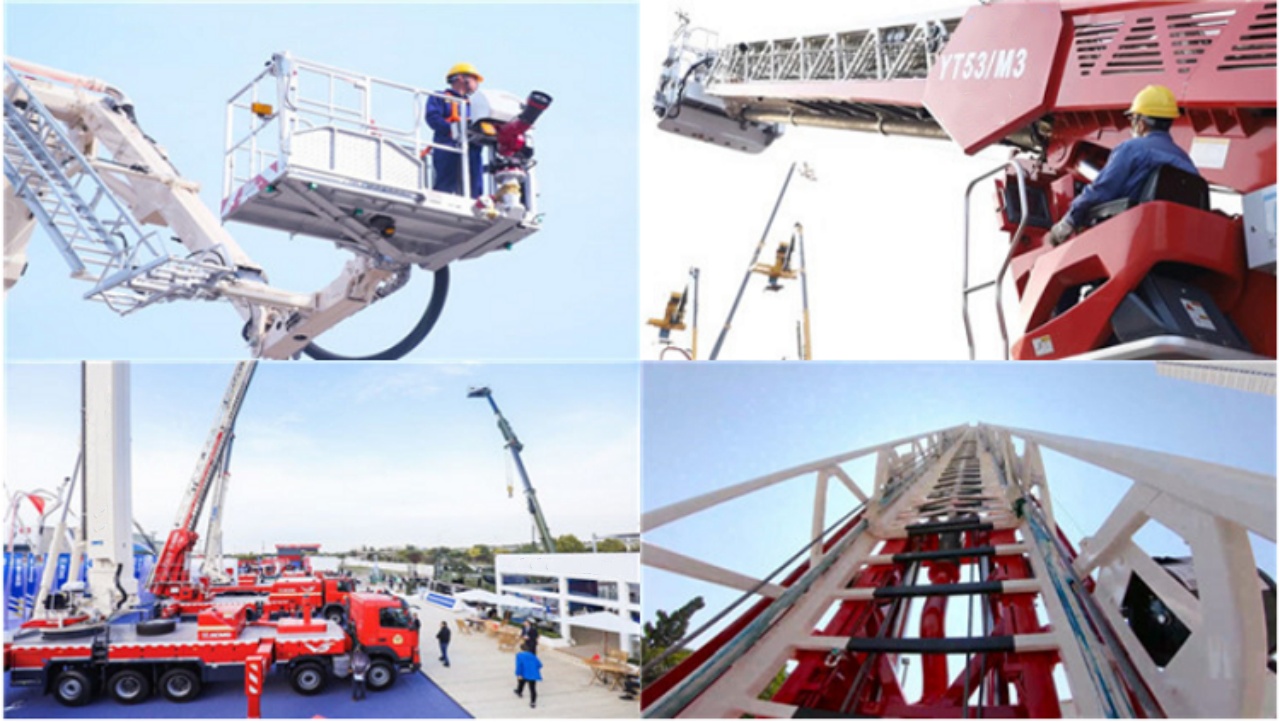

Equipped with a telescopic boom capable of reaching a maximum working height of 53 meters and an operating radius of up to 18 meters, it provides exceptional reach for tackling high-rise fires. The truck is powered by a robust engine delivering 351-450 horsepower, ensuring a top speed of at least 100 km/h while meeting the EURO V emission standard for environmental compliance.
The Benz 53M telesquirt fire truck is outfitted with a 3,000-liter water tank, providing ample firefighting capacity on-site. Its high-performance fire pump operates at a rated flow of 100 liters per second with a rated pressure of 1.0 MPa, ensuring reliable water delivery. Additionally, the fire monitor is capable of a rated flow of 80 liters per second, achieving the same pressure and a remarkable shoot range of up to 70 meters.
With a turntable slewing speed of 0.5 to 1.5 revolutions per minute, the truck ensures smooth and precise positioning during operations. These features are designed to handle challenging fire scenarios with efficiency and precision, making them a vital asset for fire departments.
The Benz 53M telesquirt fire truck stands out for its advanced firefighting capabilities, robust design, and environmentally friendly engine, offering both reliability and performance in critical rescue operations.
FEATURES
- Exceptional Reach and Coverage:
- 53m Maximum Working Height
- 18m Maximum Operating Radius
- Powerful Water and Firefighting Capabilities:
- 3,000L Water Tank Capacity
- 100L/s Fire Pump Rated Flow at 1.0MPa Pressure
- Fire Monitor with 80L/s Flow, 1.0MPa Pressure, and a 70m Shoot Range
- Robust Chassis and Drive System:
- Benz Chassis
- 6×4 Drive Type
- High Performance and Speed:
- 351-450hp Engine Power
- ≥100km/h Maximum Speed
- Compliance with Modern Standards:
- EURO Ⅴ Emission Standard
- 0.5~1.5r/min Maximum Slewing Speed of Turntable
SPECIFICATION
| Outline dimension(L×W×H) | 12,200×2,500×4,000mm | |
| Max. total mass | 31,000kg（±5%） | |
| Max. travel speed | ≥100km/h | |
| Min. turning diameter | ≤20m | |
| Approach angle | ≥15° | |
| Departure angle | ≥9° | |
| Max. grade ability | ≥25% | |
| Outrigger span | Longitudinal span | 5,750mm |
| Lateral span | 5,200mm | |
| Load capacity of working platform | 270kg | |
| Rated load of lifting bucket | 180kg | |
| Max. working height | 53m | |
| Rated working radius | 18m | |
| Boom elevating range | -12°～﹢75° | |
| Slewing range | 360° full-rotation | |
| Outrigger unfolding time | ≤30s | |
| Time for boom raising to rated height and rotating 90° | ≤120s | |
| Max. slewing speed of turntable | 0.5~1.5r/min | |
| Tank volume | 1,500kg | |
| Fire pump | Rated flow | 100 L/s |
| Rated pressure | 1.0 MPa | |
| Model | Hill RSD100 | |
| Fire monitor | Model | Elkhart PSKD80-7200EXM |
| Rated pressure | 1.0Mpa | |
| Reach | 70m | |
| Rated flow | 80L/s | |
