BRIEF

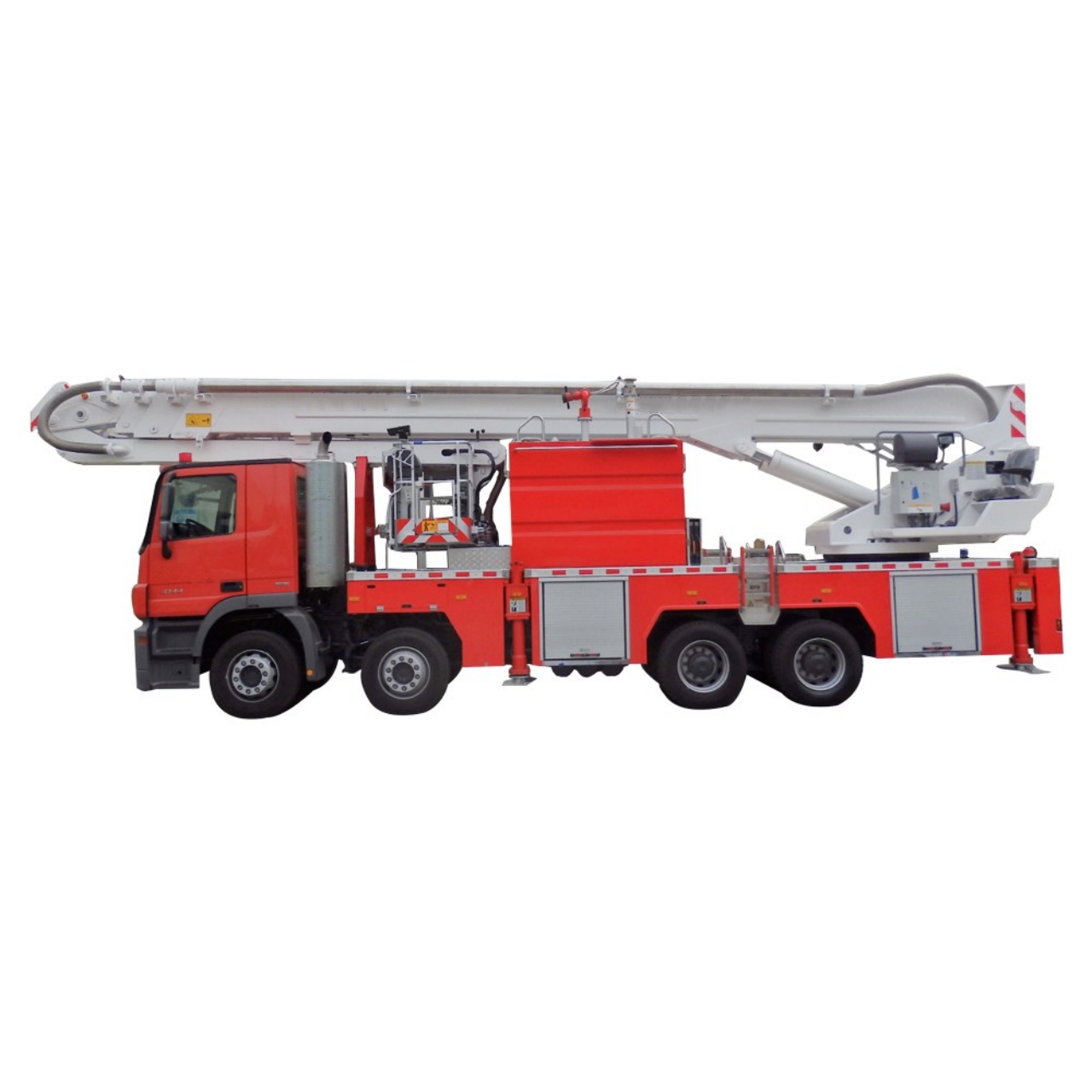

The Benz 42M aerial platform fire engine produced by CSCTRUCK Fire Rescue Truck is a highly specialized emergency vehicle designed for efficient fire-fighting and rescue operations. Featuring a 42-meter maximum working height, it provides extensive reach for tackling fires in tall buildings, high-rise structures, and difficult-to-access areas. The fire engine is equipped with a 400 kg work platform, ensuring that rescue teams can safely operate at elevated heights with the necessary equipment.

The truck is mounted on a Benz chassis with an 8×4 drive type, providing excellent stability and traction for navigating diverse terrains. The engine is powered by a 435 hp motor, ensuring reliable performance and strong towing capabilities. It meets Euro 4 emission standards, making it environmentally compliant while maintaining its powerful output. The truck’s maximum driving speed is ≥100 km/h, allowing for swift deployment during emergencies.

Equipped with a 50L/s fire fighting pump, the vehicle is capable of delivering a rated flow at a pressure of 1.7 MPa to effectively combat fires. The fire engine also features a PS30-50D firefighting gun with a rated flow of 40L/s and a pressure of 1.0 MPa. This gun boasts an impressive 60-meter range, ensuring that fires can be fought from a safe distance.

The aerial platform is capable of 0.5–1.5 r/min slewing speed, providing precise control when positioning the platform in challenging environments. This combination of advanced technology and powerful firefighting capabilities makes the Benz 42M aerial platform fire engine a vital tool for large-scale firefighting and rescue operations.

FEATURES

1. High-Angle Reach: The vehicle boasts a 42-meter maximum working height, allowing it to access high-rise buildings or hard-to-reach areas during fire and rescue operations.
2. Heavy Duty Work Platform: It supports a 400kg work platform load, providing sufficient capacity for carrying multiple rescue personnel and equipment simultaneously.
3. Powerful Fire Fighting Capabilities: Equipped with a 50L/s rated flow fire fighting pump, the engine delivers a high pressure of 1.7MPa, ensuring strong and effective fire suppression during emergencies.
4. Precision Fire Fighting Gun: The PS30-50D fire fighting gun is capable of a 40L/s rated flow, with a range of up to 60 meters and a pressure of 1.0MPa, providing a long-range, high-efficiency attack on fires.
5. Performance and Durability: The vehicle’s 435hp engine power, combined with the Benz chassis and 8×4 drive type, ensures robust performance and a maximum driving speed of 100 km/h, meeting the Euro 4 emission standard for environmental efficiency.

SPECIFICATION
