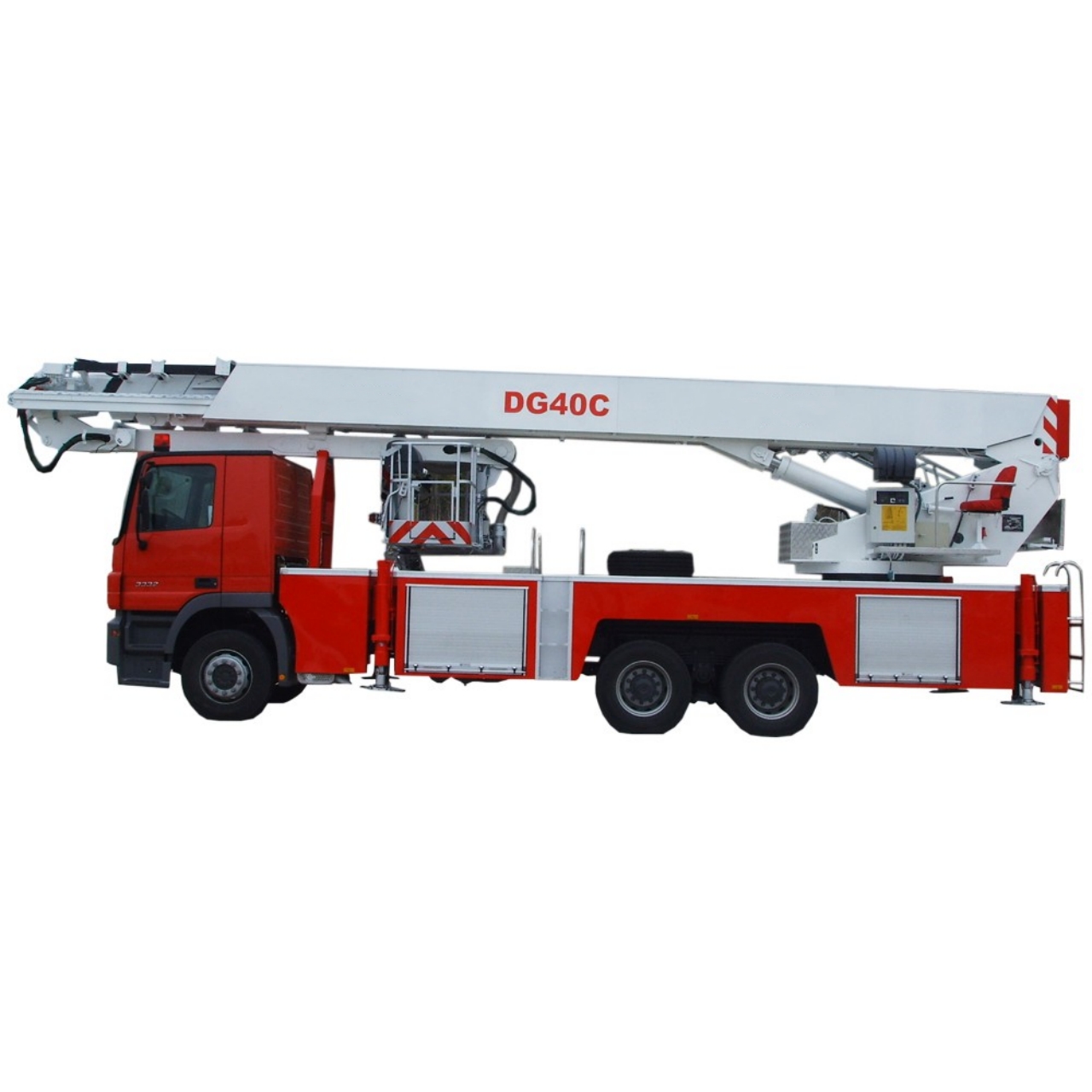

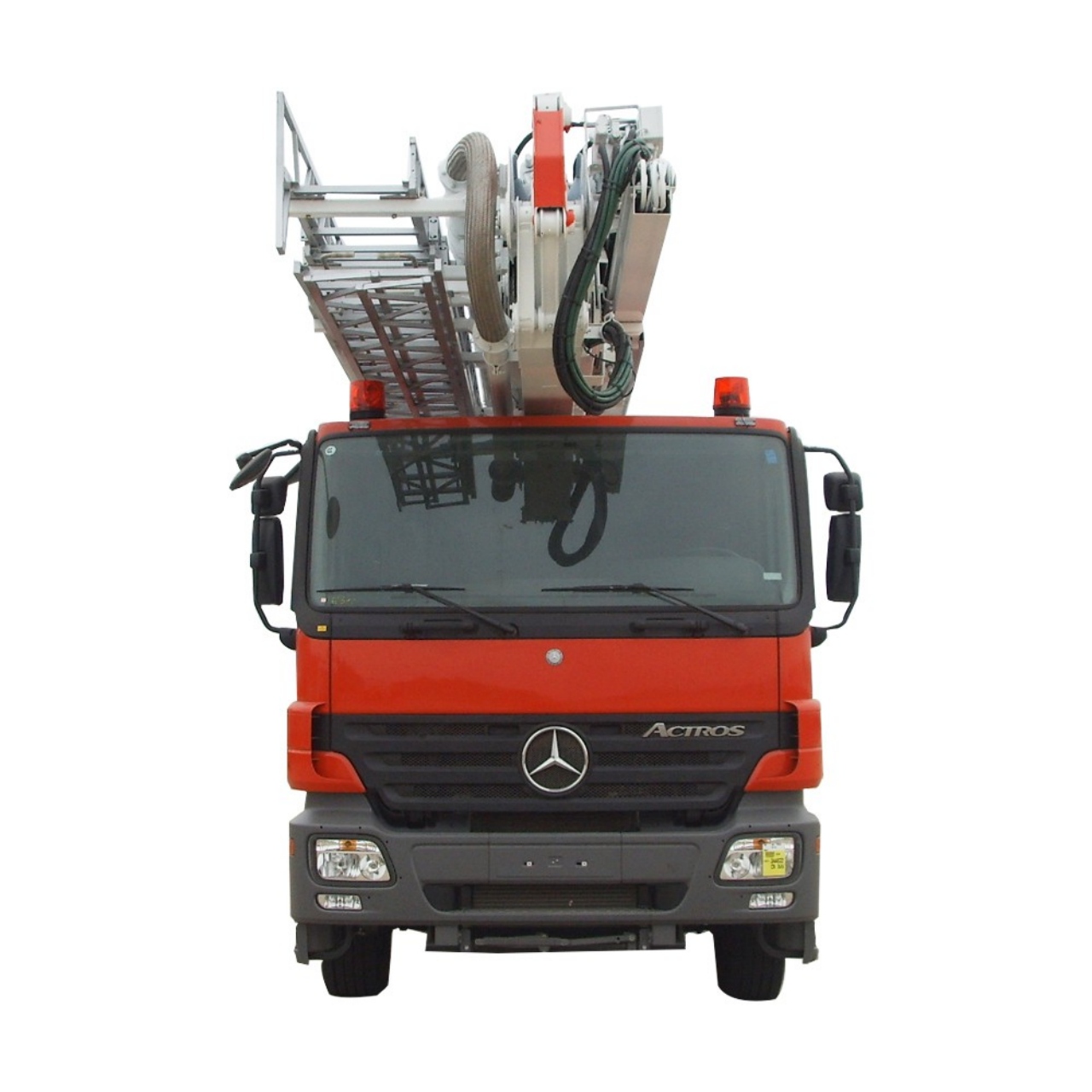

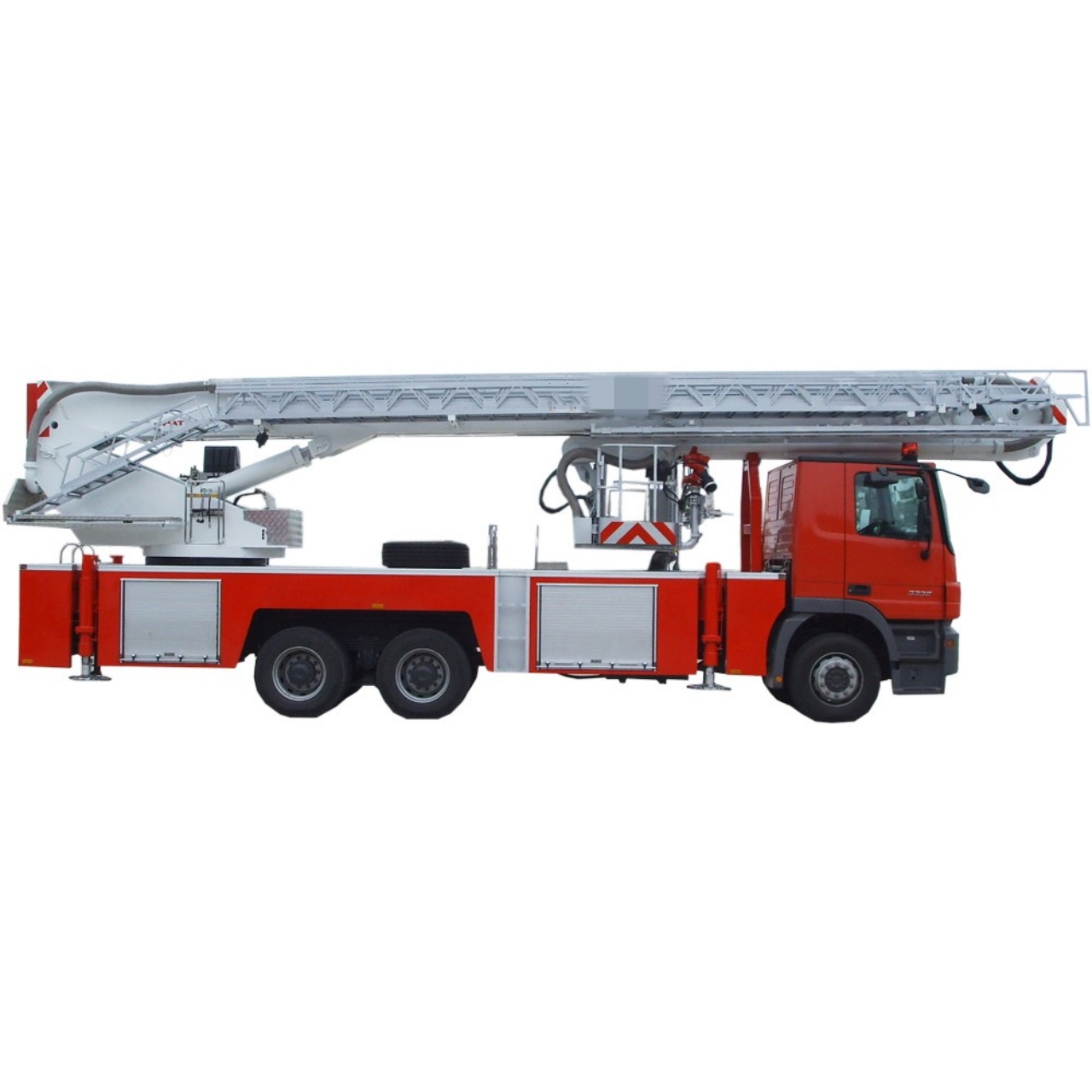

Benz 40M Fire Fighting Platform Truck

BRIEF

The Benz 40M fire fighting platform truck, produced by CSCTRUCK Fire Rescue Truck, is a high-performance emergency response vehicle designed for both fire suppression and rescue operations. Built on the robust Benz/Actros 3332 chassis, the vehicle features a 6×4 drive type, ensuring excellent stability and off-road capability. It is powered by the OM501LA.Ⅲ/15 engine model, which delivers 320 horsepower and complies with the Euro 3 emission standard, making it both powerful and environmentally friendly.

This fire truck is equipped with a cutting-edge firefighting platform capable of reaching a maximum working height of 40 meters and a maximum working range of 18 meters, providing exceptional reach for rescuing individuals from tall structures or extinguishing fires in hard-to-reach areas. The platform has a rated capacity of 400 kg, allowing it to safely accommodate personnel and equipment during operations.

In terms of performance, the Benz 40M fire fighting platform truck can reach speeds of up to 85 km/h, making it capable of rapid deployment in emergencies. Additionally, it boasts a climbing ability of ≥25%, which ensures it can navigate steep terrains when required.

The fire fighting capabilities are enhanced by the 50L/s water monitor, which delivers a rated flow of water at a pressure of ≤1.0MPa, ensuring effective fire suppression even at considerable distances. The water monitor has an impressive rated spray range of ≥65 meters, allowing the crew to tackle fires from a safe distance.

This Benz 40M fire fighting platform truck is a reliable and versatile tool, offering both the technical specifications and operational flexibility needed for modern fire fighting and rescue operations.

FEATURES

1. High Working Height & Range: The truck offers a maximum working height of 40 meters and a maximum working range of 18 meters, allowing for effective firefighting in high-rise and difficult-to-reach areas.
2. Powerful Performance: Equipped with a Benz/Actros 3332 chassis and a 320hp OM501LA.Ⅲ/15 engine, it delivers reliable power and performance for demanding firefighting operations.
3. Efficient Water Delivery: The truck has a water monitor with a rated flow of 50L/s and a maximum rated pressure of ≤1.0MPa, providing effective water streams for extinguishing fires.
4. Superior Mobility & Climbing Ability: The 6×4 drive type and a maximum driving speed of ≥85km/h, along with a ≥25% maximum climbing ability, ensure the truck can quickly reach firefighting locations and navigate challenging terrain.
5. Heavy Duty Platform: The truck features a platform with a maximum load capacity of 400kg, allowing for stable operation and the transportation of personnel and equipment during rescue missions.

SPECIFICATION
