BRIEF

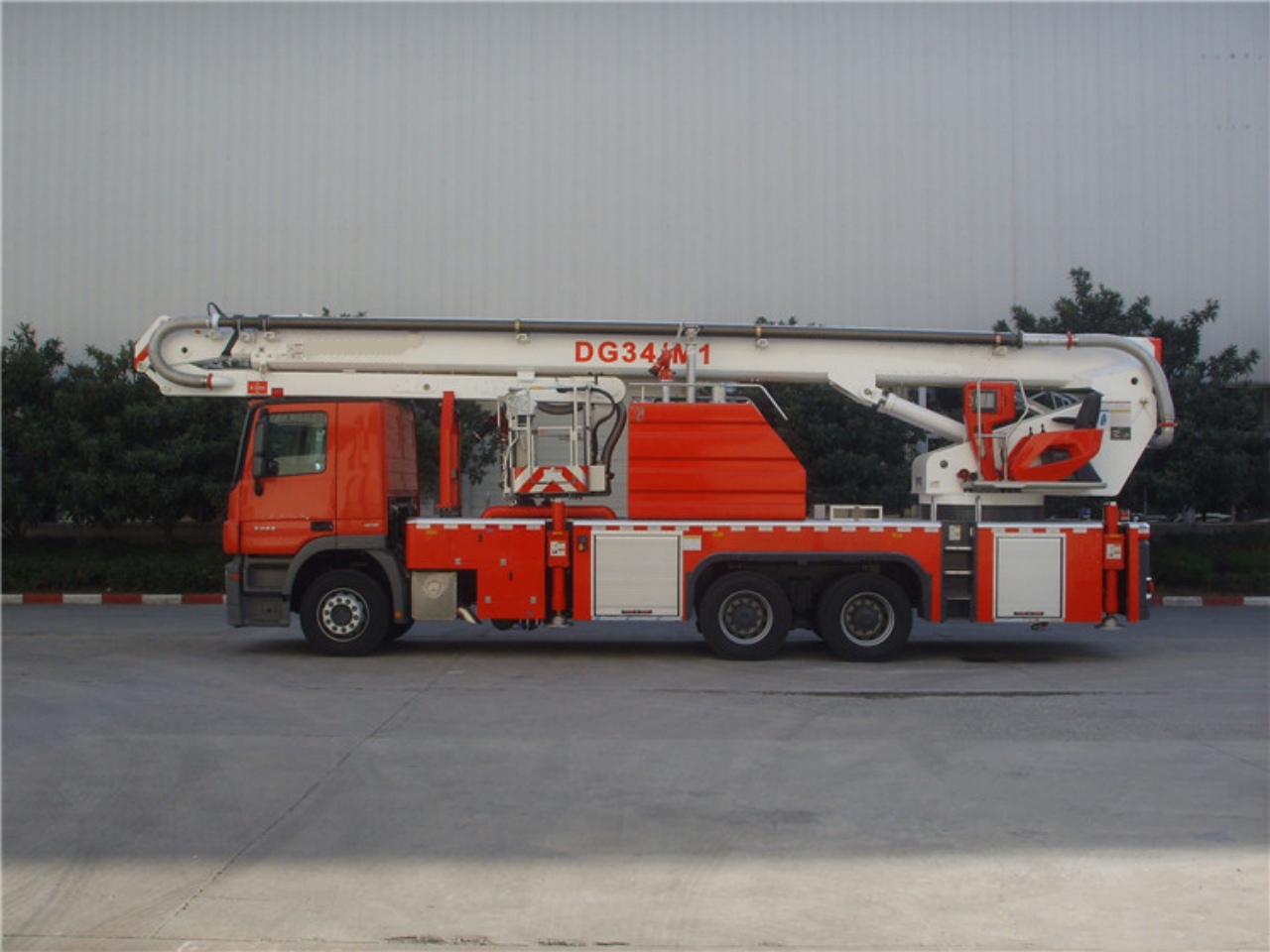

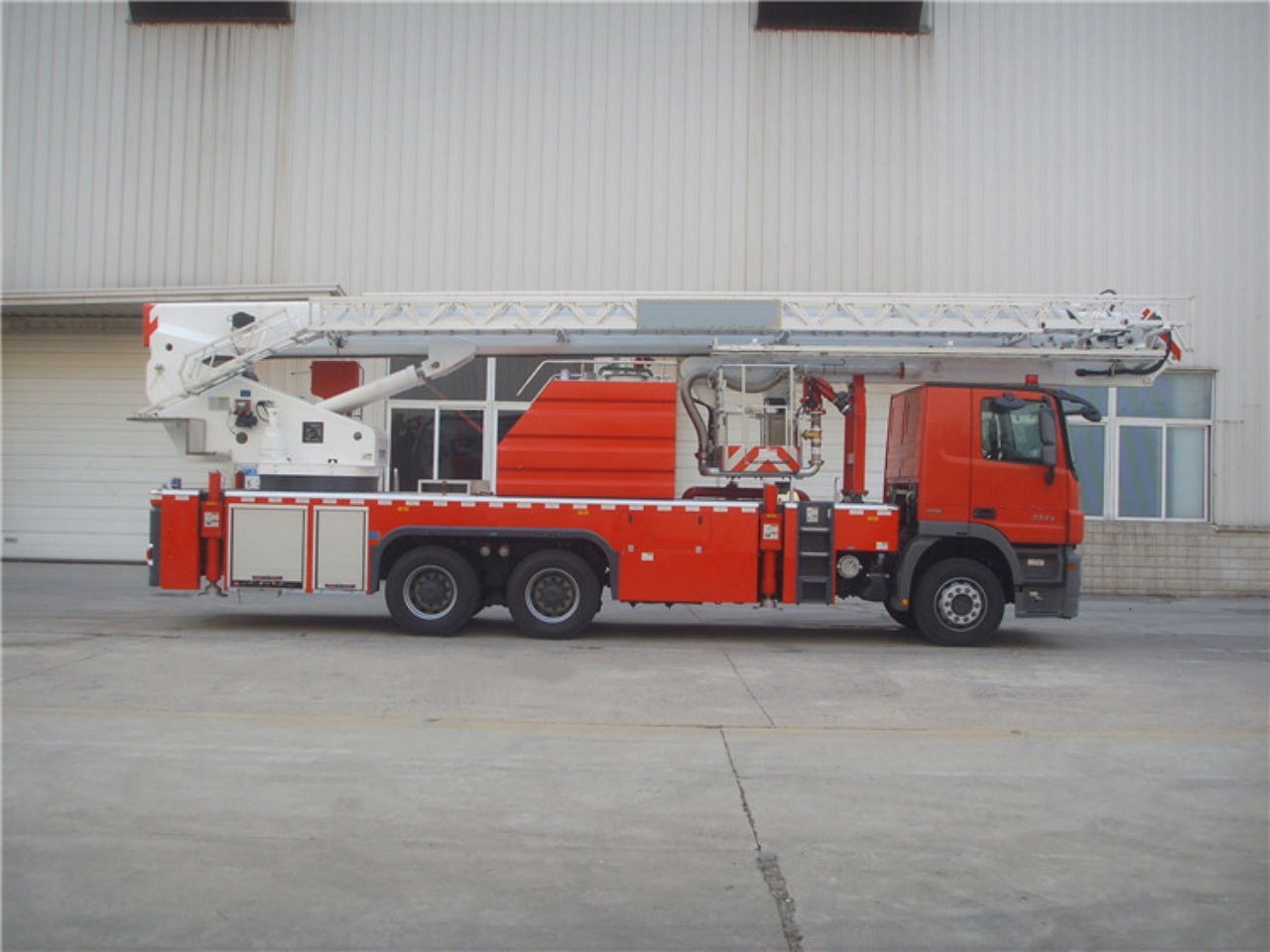

The Benz 34M aerial platform fire truck, produced by CSCTRUCK Fire Rescue Truck, is a versatile and powerful piece of firefighting equipment designed for high-rise and large-scale rescue operations. With a maximum working height of 34 meters and a maximum operating radius of 21 meters, this truck provides exceptional reach and flexibility in urban firefighting and rescue scenarios.
The truck is mounted on a Benz 6×4 chassis, ensuring robust performance and stability, with a top driving speed of ≥100 km/h, making it capable of rapid deployment to emergency scenes. The aerial platform’s maximum slewing speed is between 0.5 to 1.5 revolutions per minute (r/min), allowing for precise positioning during operations.
The fire truck is equipped with a PS30-50D firefighting gun, which has an impressive rated flow of 40 L/s (±8%) and a rated pressure of ≤1.0 MPa. This ensures powerful and efficient water delivery, with a firefighting gun range extending up to 65 meters, allowing for effective suppression of fires at a significant distance.
For the work platform, a weight capacity of 400 kg ensures that rescue personnel and equipment can be safely accommodated at height. The truck’s fire pump has a rated flow of ≥50 L/s and a rated pressure of ≥1.5 MPa, offering substantial firefighting power.
With these specifications, the Benz 34M aerial platform fire truck is ideal for tackling large-scale fires, high-rise rescues, and hazardous material interventions, providing emergency responders with the tools necessary to save lives and protect property.
FEATURES
- High Reach and Range: The aerial platform can extend up to a maximum working height of 34 meters and has an operating radius of up to 21 meters, allowing for extensive coverage in emergencies.
- Strong Load Capacity: The work platform has a load capacity of 400 kg, enabling it to carry personnel and equipment for rescue or firefighting operations.
- Fire Fighting Capability: Equipped with a PS30-50D fire fighting gun, the truck can deliver a rated flow of 40L/s and a pressure of up to 1.0 MPa, with a firefighting range of over 65 meters.
- Performance and Mobility: Powered by a Benz chassis with a 6×4 drive type, the truck has a maximum driving speed of 100 km/h, ensuring it can quickly reach the scene of a fire or emergency.
- Operational Efficiency: The fire truck boasts a maximum slewing speed of 0.5 to 1.5 rotations per minute (r/min), allowing for quick and precise positioning of the platform, and features a high-performance fire pump with a rated flow of 50L/s and a pressure of 1.5 MPa.
SPECIFICATION
| Boundary dimensions(LxWxH) | 12,360×2,500×4,000mm | ||
| Full mass | 31,020kg | ||
| Maximum speed | ≥100km/h (Electronic speed limit) | ||
| Minimum turning diameter | ≤20m | ||
| Approach angle | ≥13° | ||
| Departure angle | ≥8° | ||
| Maximum gradability | ≥25% | ||
| Outrigger span | Longitudinal span | 6,200 mm | |
| Horizontal span | 5,800 mm | ||
| Work platform load | 400kg | ||
| Maximum working height | 34m | ||
| Maximum operating radius | 21m | ||
| Elevating angle of boom | The elevating angle of the telescopic boom is -3°~82° | ||
| The elevating angle of folding boom and telescopic boom is 0°~175° | |||
| Rotation scope | 360°full-rotation | ||
| Spread time of outrigger | ≤30s | ||
| Time for lifting the boom to rated height and rotating 90° | ≤93s | ||
| Maximum slewing speed | 0.5~1.5r/min | ||
| Fire pump | Rated flow | ≥ 50 L/s | |
| Rated pressure | ≥ 1.5 MPa | ||
| Fire fighting gun | Model | 3578+5177 | PS30-50D |
| Rated flow | 50 L/s(±8%) | 40L /s(±8%) | |
| Rated pressure | ≤ 0.8 MPa | ≤ 1.0 MPa | |
| Range | ≥ 70m | ≥ 65m | |
