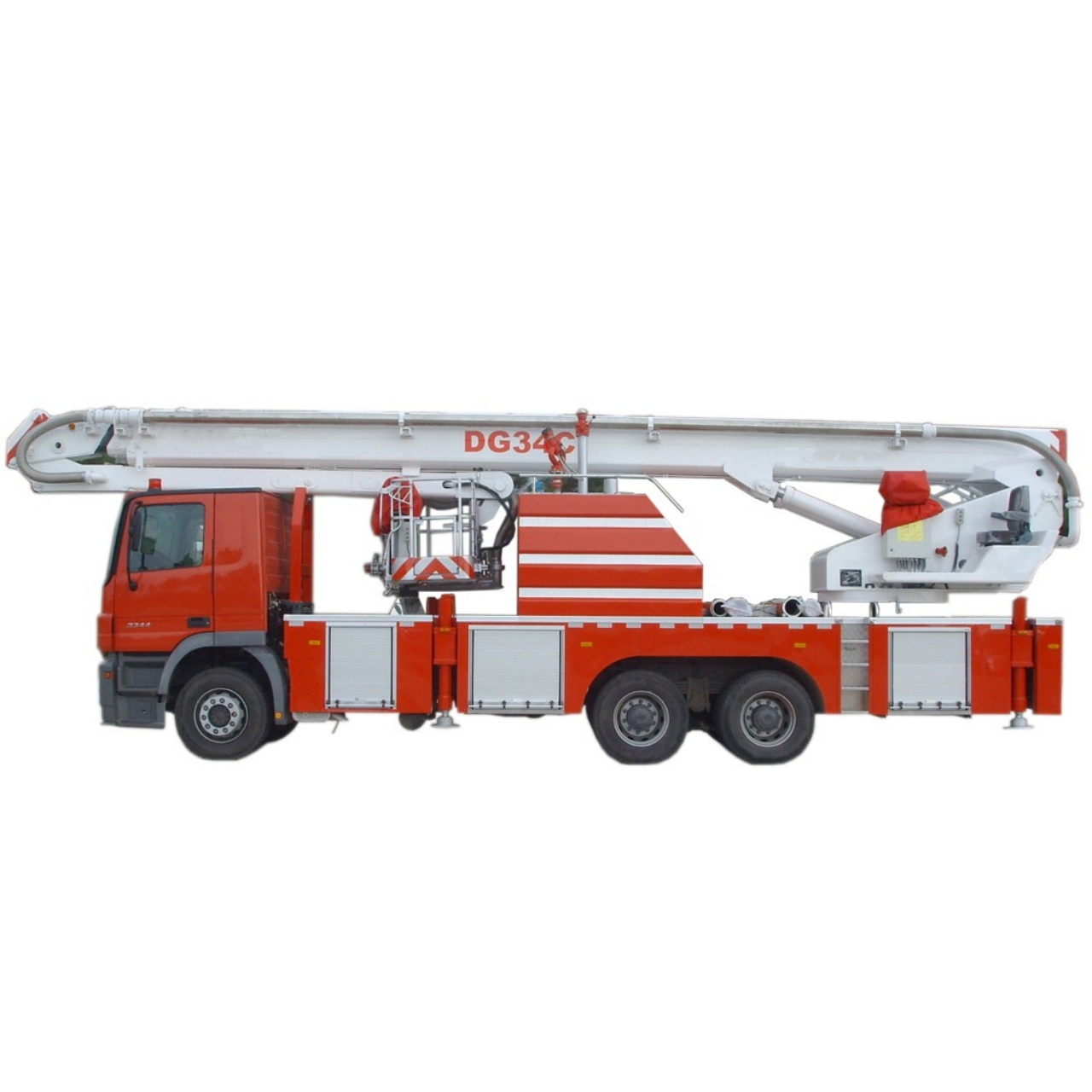

Benz 34M Aerial Platform Fire Engine

BRIEF

The Benz 34M aerial platform fire engine, produced by CSCTRUCK Fire Rescue Truck, is a state-of-the-art firefighting and rescue vehicle designed for high-efficiency operations. This versatile truck features a 34-meter maximum working height and a 21-meter maximum working radius, making it suitable for tackling fires in tall buildings, industrial complexes, or difficult-to-reach areas. With a work platform load capacity of 400 kg, it can safely support multiple personnel or equipment during firefighting or rescue operations.

The fire engine is mounted on a Benz/Actros 3344 chassis with a 6×4 drive type, ensuring excellent stability and traction during emergency maneuvers. The vehicle is powered by an OM501LA.Ⅲ/18 engine, which delivers 435 horsepower and meets Euro 3 emission standards. The truck has a maximum driving speed of ≥90 km/h, enabling rapid deployment to fire scenes. It also boasts an impressive payload capacity of 31,450 kg.

In terms of firefighting capabilities, the Benz 34M aerial platform fire engine features a 50L/S water monitor rated flow and a 1.5MPa fire fighting pump rated pressure. The truck can draw water from a source at depths of ≥7 meters, with a maximum water drawing time of ≤50 seconds. The fire water monitor is capable of achieving spray pressures of ≤0.8MPa, with a maximum spray range of 70 meters. Additionally, the truck is equipped with a 30-50L/S tank fire water monitor that provides a spray range of 65 meters at a rated pressure of 1MPa, ensuring effective firefighting at extended distances.

Overall, the Benz 34M aerial platform fire engine offers advanced firefighting technology, reliable performance, and exceptional reach, making it an essential tool for modern fire rescue operations.

FEATURES

1. Advanced Aerial Platform: The truck features a 34m maximum working height and a 21m maximum working radius, enabling firefighters to access high and distant locations with ease for rescues and firefighting operations.
2. Powerful Engine and Drive: Powered by a Benz/Actros 3344 chassis model with a 435hp OM501LA.Ⅲ/18 engine, this truck delivers high performance with a 6×4 drive type and a maximum driving speed of ≥90 km/h for quick deployment.
3. Impressive Firefighting Capabilities: Equipped with a 50L/S fire water monitor rated flow, it can spray water up to 70m, with a rated pressure of ≤0.8MPa, ensuring efficient firefighting at significant distances.
4. Efficient Water Pump System: The fire engine comes with a 1.5MPa fire-fighting pump with a rated pressure and ≤50s water drawing time, offering fast water intake from sources up to 7m deep to provide a continuous water supply during emergencies.
5. Heavy-Duty Load Capacity: With a 31,450kg payload, this fire engine can carry large quantities of equipment, water, and personnel, ensuring it is fully equipped for various rescue and firefighting tasks.

SPECIFICATION

Ⅰ.Main Technical Parameters in Driving Status

Ⅱ. Main technical parameters in working status
