BRIEF

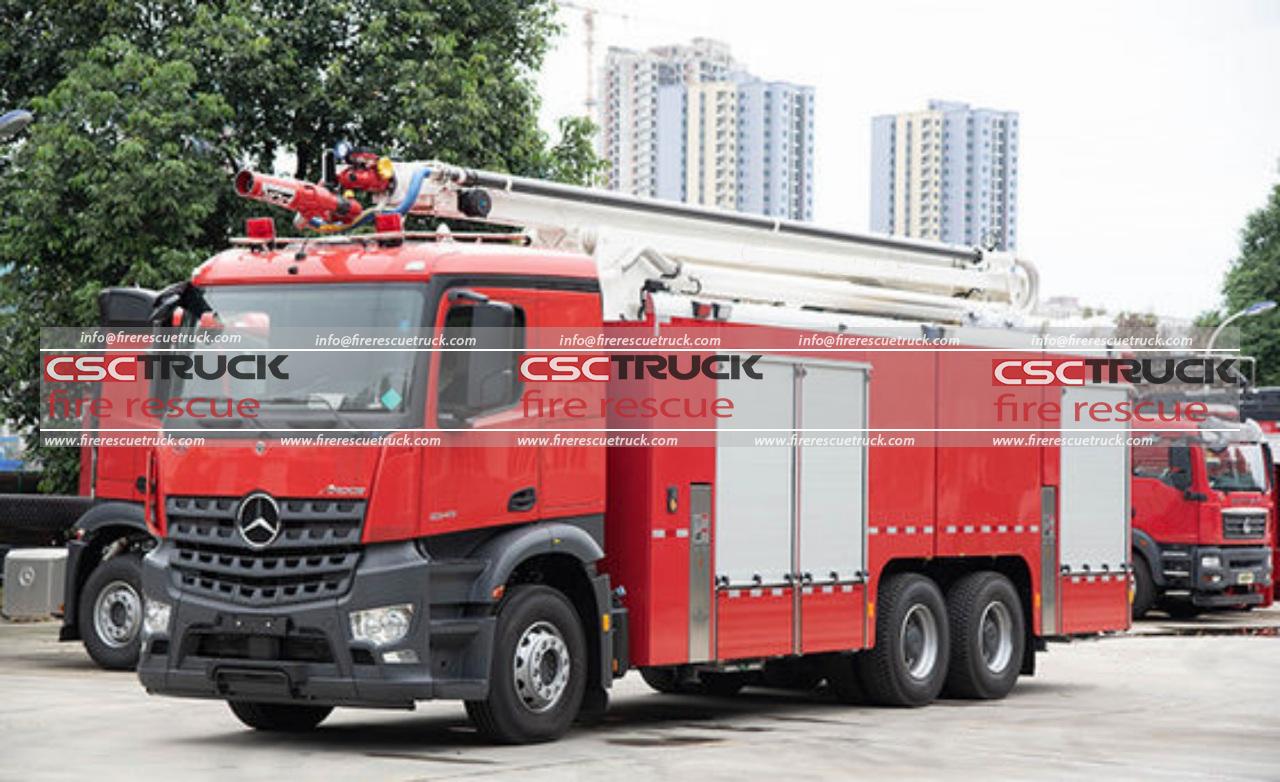

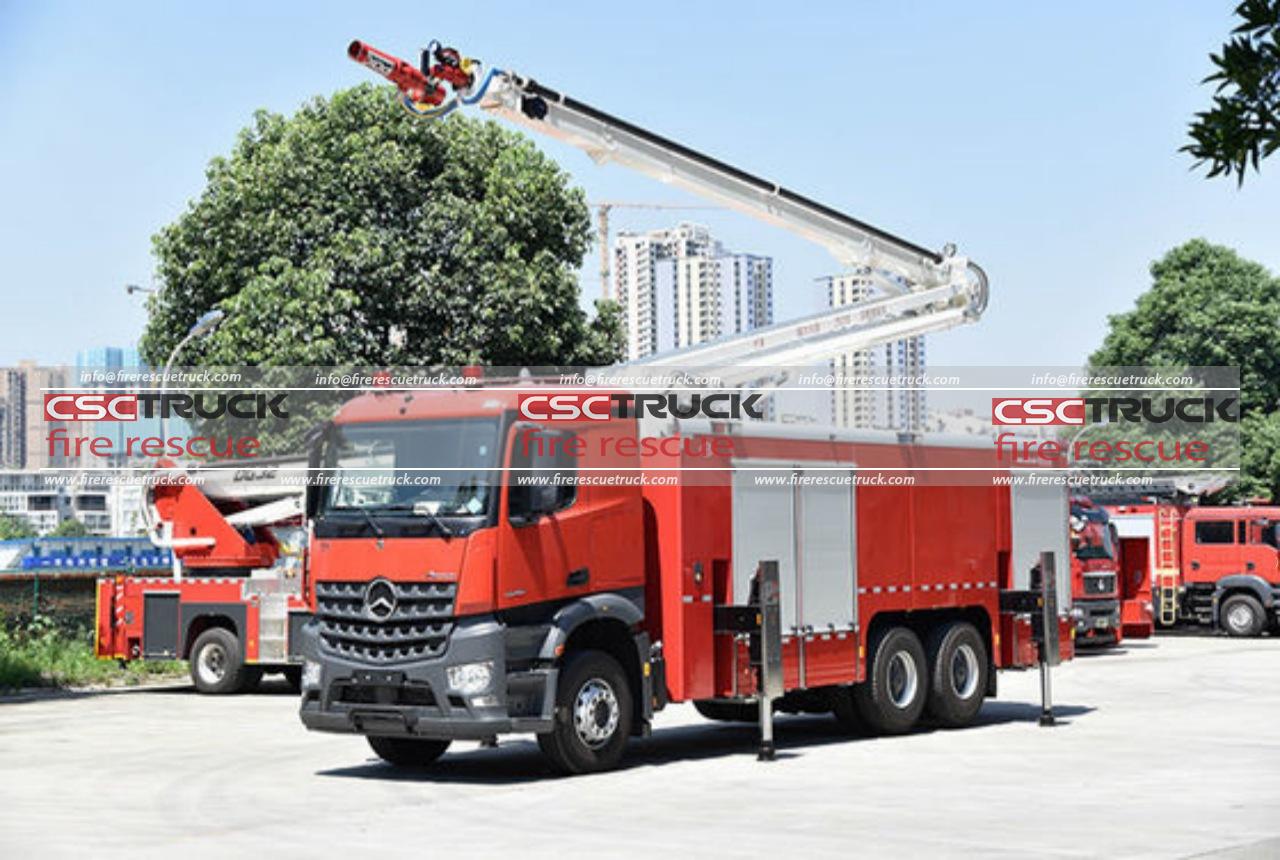

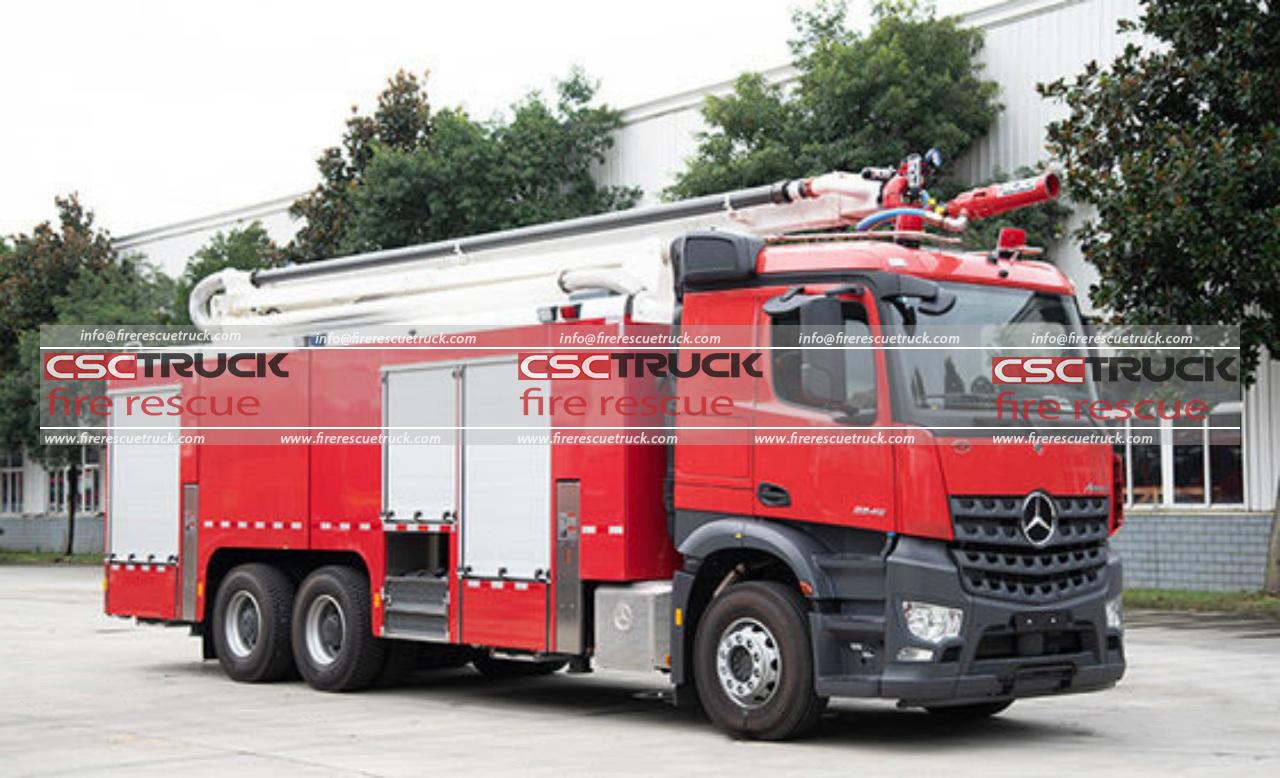

The Benz 25M tower fire truck, produced by CSCTRUCK Fire Rescue Truck, is a robust firefighting vehicle designed for high-performance emergency response. Built on a Mercedes-Benz chassis with a 6×4 drive type, this fire truck is engineered for stability and power, supporting a full load weight of 30,900kg. It has an impressive maximum speed of 90km/h, making it swift and reliable for urgent deployments.
Equipped with a 3,000-liter water tank and a 2,000-liter foam tank made from durable PP composite material, this fire truck is capable of tackling large-scale fires with versatility and endurance. Its fire pump offers a high flow rate of 100 liters per second at 10 bar, ensuring strong water pressure for prolonged firefighting. Additionally, the fire monitor provides an 80 liters-per-second flow rate, achieving an effective shooting range of up to 75 meters with water and 70 meters for mixed foam solutions. This range enhances its capability to reach fires in difficult or elevated areas.
The 25-meter working height of its tower enables firefighters to approach high-rise fires with ease, ensuring safe and effective firefighting from an elevated position. Overall, the Benz 25M tower fire truck represents a powerful, versatile, and reliable solution, with both the capacity and technical sophistication needed for modern firefighting demands.
FEATURES
1. High-Performance Firefighting Capability: Equipped with a powerful fire pump delivering a flow rate of 100 liters per second at 10 bar, this fire truck can deliver large amounts of water quickly. The fire monitor has an 80 L/s flow rate, with a reach of 75 meters for water and 70 meters for foam-mixed solutions.
2. Large Water and Foam Capacity: The small fire truck is designed with a 3,000-liter water tank and a 2,000-liter foam tank made of PP composite material, which provides excellent durability and resistance to chemicals, crucial for prolonged firefighting operations.
3. Advanced Tower Reach: With a maximum working height of 25 meters, this tower fire truck is highly effective for tackling fires in mid-rise buildings, providing an elevated vantage point for precision.
4. Robust Chassis and Drivetrain: The fire truck is based on a Mercedes-Benz 6×4 chassis, offering robust structural integrity and stability, essential for handling a fully loaded weight of 30,900 kg while ensuring mobility and durability in various terrains.
5. Efficient Speed and Range: Despite its heavy build, the fire truck can reach speeds of up to 90 km/h, ensuring quick response times to emergencies, with a shooting range of up to 75 meters to cover substantial areas during firefighting operations.
SPECIFICATION
Main Technical Parameters
| No. | Main Items | Technical Parameters |
| 1. | Model | CSCTFT025 |
| 2. | Overall Dimensions | 10,640×2,500×4,000mm |
| 3. | Full Load Weight | 30,900kg |
| 4. | Number of the Crew | 1+1 (Including Driver) |
| 5. | Max. Speed | 90km/h |
| 6. | Capacity | 3,000 Liters Water & 2,000 Liters Foam & 1,000Kgs Superfine Dry Powder |
| 7. | Fire pump flow rate | 100L/s @ 10bar |
| 8. | Fire monitor | 80L/s Flow Rate. 75m shoot range for Water. 70m shoot distance for Mixed liquor |
| 9. | Max. working height | 25 Meters |
Alumium Superstructure
| No. | Main Items | Technical Parameters |
| 1. | Compartment | |
| 1.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 1.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear |
| 2. | Roller Shutter Door | |
| 2.1 | Material | Aluminum alloy profiles with anodized surface |
| 2.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 3. | Foot Pedals | |
| 3.1 | Material | High-quality aluminum alloy |
| 3.2 | Structure | 50cm width, bears more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment. |
Fire Extinguishing System
1. Centrifugal Water Pump
- Rated Flow Rate: 100L/s @ 10bar
- Vacuum Pump: Electric vacuum pump
- Priming Manner: Automatic
- Suction Height: 7m
- Priming Time: ≤80s
- Location: Rear-mounted
2. Roof Fire Monitor on Boom
- Flow Rate: 80L/s
- Shoot Range: 75m for Water. 70m for Mixed liquor
- Location: On the top of the boom
- Control Manner: Remote control
- Horizontal Rotation Angle: 0°~340°
- Pitch Rotation Angle: -22°~75°
3. Water and Foam Tank
- Capacity: Water 3,000 Liters and Foam 2,000 Liters
- Material: PP composite material and Never Rust
- Structure: 2 Tank Manholes; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlets with Valves; 1 Water tank Drain Outlets with Valves.
