BRIEF
The 60m aerial ladder fire truck produced by CSCTRUCK Fire Rescue Truck represents a cutting-edge solution in fire rescue technology. Built on the robust SHACMAN chassis, this fire rescue truck features a 6×4 drive type, ensuring superior stability and traction in challenging conditions. Underpinning this vehicle’s power is the WEICHAI WP12.430E201 engine, which delivers a formidable 430 horsepower and complies with Euro 2 emission standards, reflecting both performance and environmental considerations.
At the core of this fire truck’s capabilities is its advanced 60-meter aerial ladder, constructed from 6 sections of special high-strength-shaped pipe. This ladder configuration enables extensive reach and operational flexibility, essential for high-rise building fires and complex rescue scenarios. The ladder’s H-type outrigger system enhances stability during extended operations, allowing for safe and effective use of the aerial platform.
For firefighting and rescue operations, the 60m aerial ladder fire truck is equipped with the Akron PLKD10/80B-5177 fire monitor. This state-of-the-art fire monitor provides powerful and precise water flow capabilities, essential for tackling large-scale fires and protecting structures from fire damage.
The fire truck’s modern CAN bus intelligent electrical control system represents a significant advancement in vehicle management. This sophisticated system integrates various vehicle functions into a cohesive network, facilitating real-time diagnostics, efficient operation, and streamlined communication between components.
Overall, the 60m aerial ladder fire truck combines high engineering standards with advanced technology, offering fire departments a reliable and effective tool for emergency response and rescue operations.
FEATURES
1. Advanced Ladder System:
– The fire rescue truck is equipped with a 60-meter aerial ladder made from special high-strength shaped pipe, comprising 6 sections. This design ensures high durability and reliability during firefighting and rescue operations.
2. Robust Chassis and Engine:
– Built on a SHACMAN chassis with a 6×4 drive type, the truck boasts a powerful WEICHAI WP12.430E201 engine that delivers 430 horsepower. This configuration ensures the truck can handle demanding tasks and rough terrains efficiently.
3. H-type Outrigger Stability:
– The fire truck features an H-type outrigger system, which provides enhanced stability and safety during operations by ensuring a secure and steady base when the ladder is extended.
4. High-Performance Fire Monitor:
– Equipped with an Akron PLKD10/80B-5177 fire monitor, the truck can deliver high-pressure water streams effectively. This monitor model is known for its reliability and precision in firefighting.
5. Intelligent Control System:
– The truck incorporates a CAN bus intelligent electrical control system, offering advanced control over various functions of the vehicle. This system enhances operational efficiency and provides real-time monitoring and diagnostics, improving overall safety and performance.
SPECIFICATION
Technical Specification |
|||||||
| 1. TRUCK | |||||||
| Make/Model Line | SHACMAN 6X4 RHD | ||||||
| Engine model | WEICHAI WP12.430E201 | ||||||
| Emission standard | Euro 2 | ||||||
| Horsepower | 430HP | ||||||
| Maximum torque | 2,000 N·m | ||||||
| Gearbox | FAST 12JSDX220T-B+QQ130A | ||||||
| Tire Size | 12.00R20with 1spare tire | ||||||
| Wheelbase | 4,575+1,400mm | ||||||
| Front axle rating | 9,500kg | ||||||
| Rear axle rating | 16,000kg+16,000kg | ||||||
| GVW | appro. 30,000kg | ||||||
| Fuel tank | 300L, aluminum | ||||||
| Electrical system | 12V with alternator | ||||||
| Headlights, rear lights, indicator lights, brake lights, hazard lights, cab interior lights, etc. are equipped according to the truck manufacturer’s specifications | |||||||
| Battery | 165Ah maintenance-free battery，2×12V | ||||||
| White color, 6 persons allowed, air conditioner, power assist, radio, MP3, etc. | |||||||

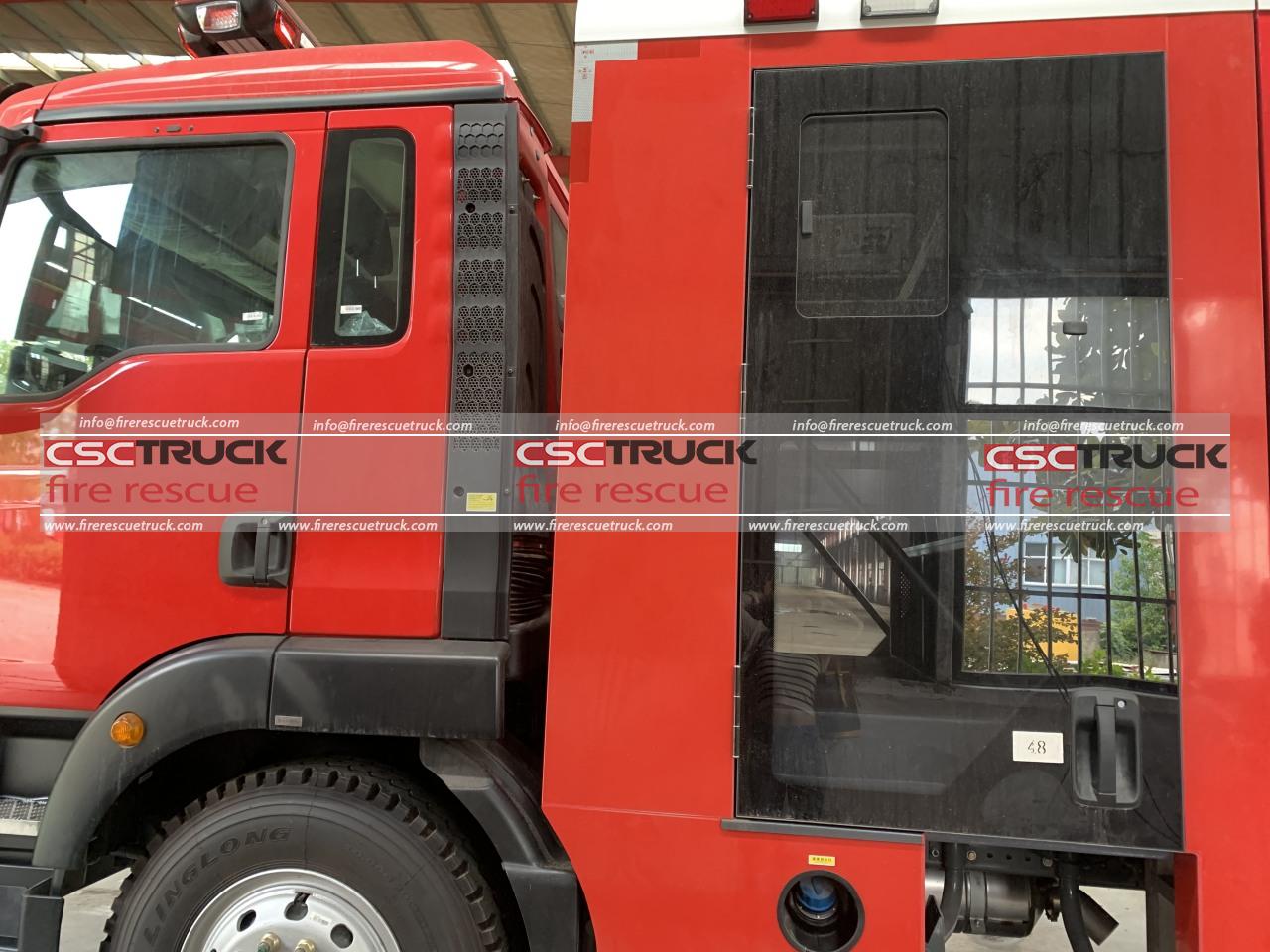

| 2. CABIN | |||||||
| Mode | Single cab | ||||||
| People | 3 person | ||||||
| With | CCTV Display Monitor; air conditioner; reverse system | ||||||
 |
 |
||||||
| 3.SUPERSTRUCTURE | |||||||

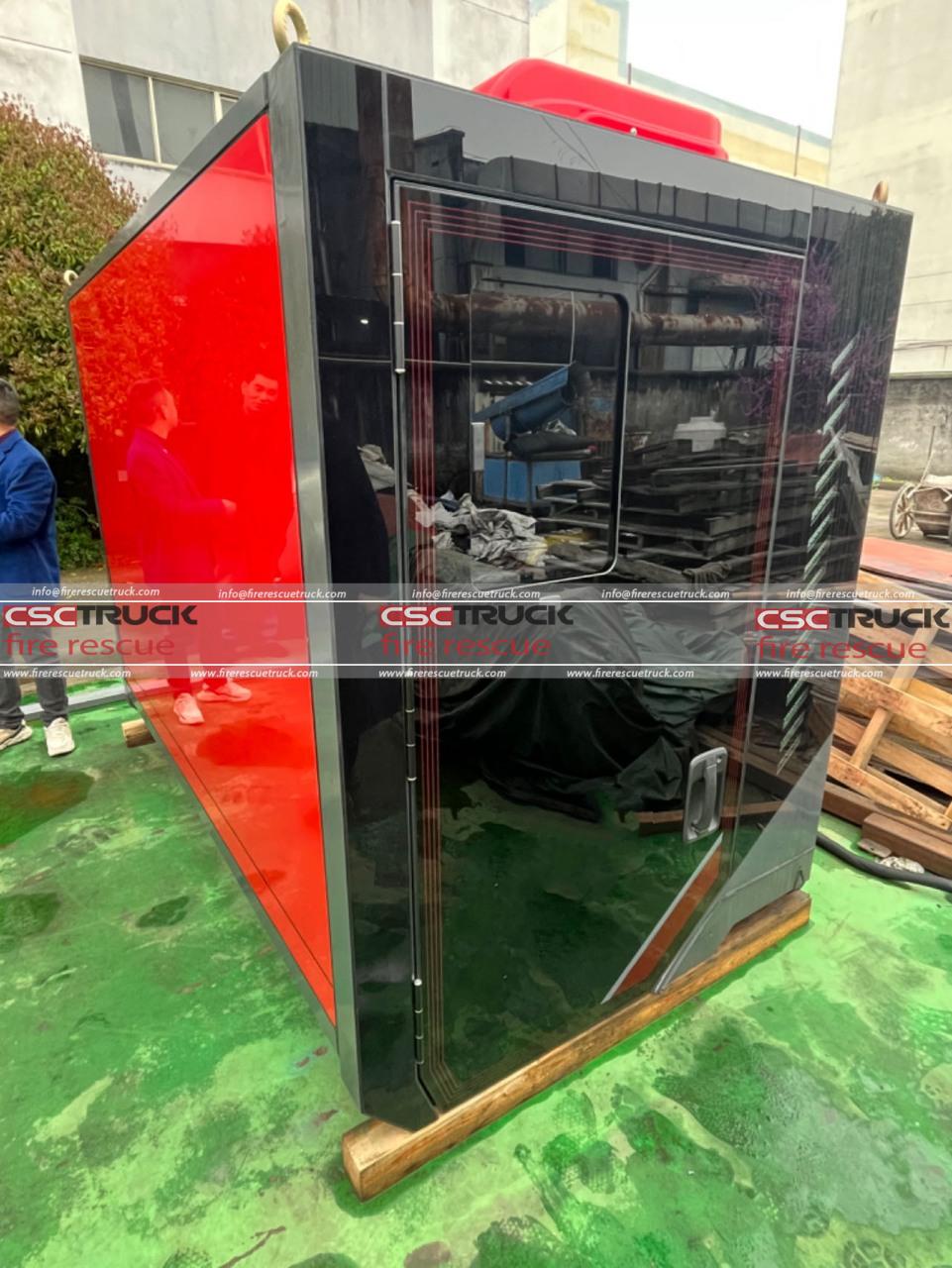

| 3.1)Cage | |||||||
| Rescue cage overview | Automatically flip over the inverted ladder; | ||||||
| Automatically deployment and leveling; | |||||||
| Equipped with working light and safety rope | |||||||
| Cage rated capacity-outreach | 300kg-18m, 200kg-19m;100kg-20m | ||||||
| Platform area | 1.2m2 | ||||||
| Leveling Method | The electro-hydraulic intelligent independent leveling system | ||||||
| Self-protection spray flow | ≥285L/min | ||||||

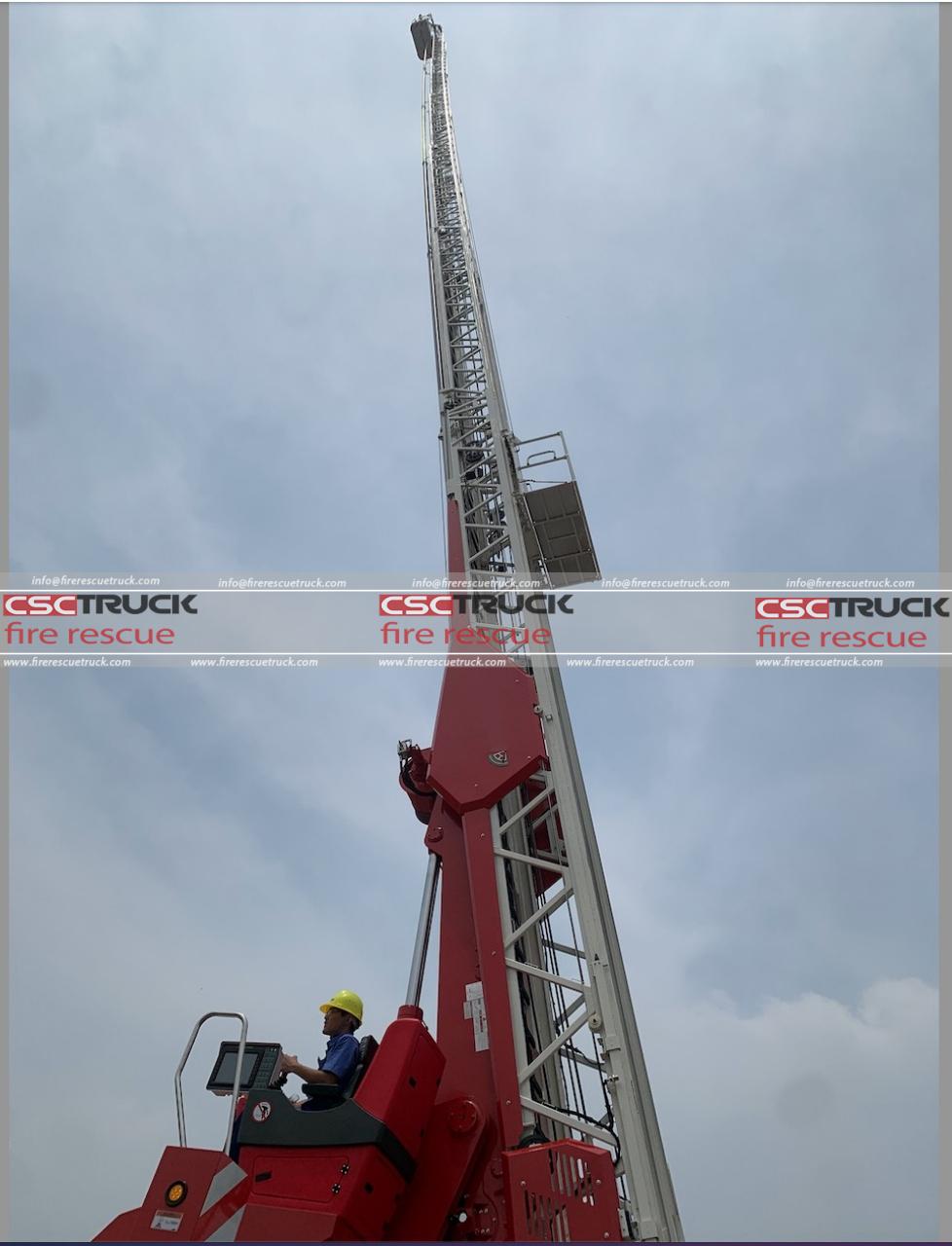

| 3.2)Ladder | |||||||
| Section | 6 Sections | ||||||
| Main material | Special high-strength shaped pipe | ||||||
| Telescopic mechanism | Winch+ imported high flexible steel wire rope and pulley block to achieve synchronous telescopic | ||||||
| Operation curve | See chart | ||||||
| Ladder operation model | Footswitch + handle step-less control; electronic control forced operation; manual forced operation | ||||||
| Turntable | Water, electricity, and hydraulic integrated central rotary device, any 360 continuous rotation | ||||||
| 3.3)Outrigger | |||||||
| Type | H-type | ||||||
| Horizontal Span | 5200±50mm | ||||||
| Outrigger leveling time | ≤35s | ||||||
| Outrigger operation mode | Automatic unfolding; Electronic control + manual; Manual forced | ||||||
| 3.4)Slide Cage | |||||||
| Overview | Frame folding structure, aluminum alloy door, folding in the upper part of the ladder when driving. | ||||||
| Driving type | Hydraulic motor-driven winch, Drive the wire rope through the pulley block. | ||||||
| Max speed of slide cage lifting | ≥0.8m/s | ||||||
| Slide cage-rated capacity | 180kg | ||||||
| Slide cage working at a variable Angle | 50°~75° | ||||||
| Platform area | ≥0.8m2 | ||||||
| Slide cage brake | Mechanical friction brake | ||||||
| 4. FIRE FIGHTING SYSTEM | |||||||
| 4.1)Fire monitor | |||||||
| Fire monitor Model | Akron PLKD10/80B-5177 (MADE IN GERMANY) | ||||||
| Max flowing of fire monitor | [email protected] (L/min@MPa) | ||||||
| Flowing of water monitor vehicle system flow | [email protected] (L/min@MPa) | ||||||
| Fire monitor type | Electric control of the fire monitor which can achieve working conditions of horizontal rotation, pitch, and water curtain | ||||||
 |
|||||||
| 4.2)Piping System | |||||||
| Material | Made of high corrosion-resistant material | ||||||
| Water inlet | 4XDN80, manual ball valves | ||||||
| Cage front water supply | One (1) DN65 | ||||||
| Connector standard | According to customer’s requirement. | ||||||
| 5. POWER TAKE-OFF DEVICE | |||||||
| Type | Oil pump power take-off: Chassis original self-contained, mechanical | ||||||
| Power control method | Electric Control | ||||||
| Position | Oil pump power take-off in the lower right part of the gearbox | ||||||
| 6. ELECTRICAL SYSTEM | |||||||
| 6.1)Control system | |||||||
| Control System | CAN bus intelligent control system (controller + display screen + control program) | ||||||
| Operating table | Turntable left operating table (with seats) | ||||||
| Cage operating table | |||||||
| Vehicle rear operation panel | |||||||
| Screen | High brightness LCD color display, located in the turntable operation table and cage operating table, Vehicle rear operation panel | ||||||
| Intercom system | Turntable and bucket using non-handheld cable intercom system | ||||||
| Cables and connectors | Adopt the imported connector with waterproof performance up to IP67 | ||||||
| Adopt imported cables | |||||||
| 6.2)Warning and Illumination Lights | |||||||
| Strobe lights | Four (4), red, installed on each side of the body | ||||||
| Illumination Lights | Cage front left and right sides of the configuration of high-brightness lighting | ||||||
| High-intensity lighting on both sides of the ladder | |||||||
| Ladder support with high-intensity lighting | |||||||
| Outrigger illuminator for illuminating the underside of the leg support | |||||||
| Visual warning lights | A circular warning light on the left and right sides of the cab | ||||||
| Yellow warning light around the cage | |||||||
| Outrigger with warning light | |||||||
| Locker illumination | Each locker has an LED light, that automatically switches on/off when the door opens or closes | ||||||
| Door switch | For each locker with a control light in the cab for indication open of the locker | ||||||
| Automatic disconnect charging device | The battery can be charged by 220V mains, and the charging plug will automatically fall off when the fire truck starts | ||||||
| Alarm and Public Address System (P.A. System) | Multi-tone fire siren and PA system with One (1) 100-watt loudspeaker | ||||||
| 6.3)CCTV and Reversing System | |||||||
| Type | High-resolution image system with GPS， backup camera, and sensor | ||||||
| CCTV Display Monitor | High-resolution LCD monitor mounted in the driver’s cab | ||||||
| Reversing system | 360°driving recorder, a reverse radar, and a color video display screen with a size of at least 7 inches | ||||||
 |
|||||||
| 7. HYDRAULIC SYSTEM | |||||||
| Overview | Variable pump + proportional valve load sensitive system | ||||||
| Max system pressure | 23MPa | ||||||
| Ladder operating valve | Hydraulic pilot high-performance electromagnetic proportional valve | ||||||
| Outrigger valve | Electromagnetic proportional valve | ||||||
| Balance valve another core valve | Original brand | ||||||
| Emergency Power Unit | Gasoline engine drive | ||||||
| Oil filter | Pump outlet of a pipeline oil filter, a return oil filter with filter plug to dispatch instructions | ||||||
| Hydraulic oil specification | Original brand | ||||||
| 8. SECURITY PROTECTION SYSTEM | |||||||
| Cage overload protection | When the cage exceeds 1.1 times the rated load, alarm and cut off the action in the dangerous direction | ||||||
| Cage tipped protection | When the cage tilts more than 7 degrees, cut off all actions. | ||||||
| Ladder buffer protection | Limit position and sudden handle, the system can automatically accelerate and decelerate | ||||||
| Ladder limiting protection | A ladder close to the limit range can automatically slow-stop | ||||||
| Ladder rotation limit protection | When the ladder turns to the short leg, cut off the turning action in the dangerous direction | ||||||
| Rotary buffer protection | The system can effectively realize buffering when the rotation stops suddenly | ||||||
| Rotary alignment | When the rotation is close to the middle, Automatic speed reduction to ensure accurate center alignment | ||||||
| Body anti-collision | To prevent the ladder frame from colliding with the car body, when the ladder frame turns to a certain position, it will automatically stop the dangerous direction of turning | ||||||
| Interlock | The outriggers are not unfolded, the booms cannot move; the booms leave the bracket and the outriggers cannot move | ||||||
| Emergency function | On-board operating valve and outriggers operating valve with the emergency manual operation; The system with an emergency power unit for winding up ladder frames and legs in case of engine or oil pump failure | ||||||
| Outrigger action alarm | Outriggers operation, Acousto-optic automatic alarm to prevent people from touching. | ||||||
| Soft outrigger protection | In ladder operation, the outrigger appeared virtual outrigger and automatically cut off the dangerous direction. | ||||||
| A hint of the leg not retracting | The legs are not retracted in place, the light will automatically alarm to prevent accidents | ||||||
| Slope overrun protection | The slope is greater than 5 °, the work site and light alarm system automatically limit leg movements | ||||||
| Waterway overpressure protection | The water cannon inlet pressure exceeds the rated value, an alarm is raised and the engine continues to accelerate | ||||||
| Engine speed limit | The ladder is in motion, the engine speed is automatically limited; The water pump works, preventing overpressure or water pump overspeed, automatically limiting engine speed | ||||||
| Super wind speed alarm | The wind speed exceeds 12.5m/s, the acousto-optic system will automatically alarm and cut off the operation to a dangerous direction | ||||||
| Tips for not closing the door of the equipment box | If the equipment door is not closed, the light will automatically alarm to prevent accidents. | ||||||
| 9. ACCESSORIES AND EQUIPMENT | |||||||
| No | Name | Qty | |||||
| 1 | Fire hose (cartridge type) 20-80-20 | 4 | |||||
| 2 | Water suction pipe wrench 6″ | 2 | |||||
| 3 | Irregular interface | 2 | |||||
| 4 | Water hose wrap QH16044X | 4 | |||||
| 5 | Ground fire hydrant wrench FB400 | 1 | |||||
| 6 | Underground fire hydrant wrench FBA800 | 1 | |||||
| 7 | Safety harness FZL-DD-III | 2 | |||||
| 8 | Outrigger support plate | 4 | |||||
| 9 | Fire extinguisher MFCZ/ABC8 | 2 | |||||
| 10 | Foam tube FPG80 | 1 | |||||
| 11 | CO2 Extinguisher 5Kg | 1 | |||||
| 12 | Forcible entry tool, Hooligan type | 1 | |||||
| 13 | Fire Axe with fibre-glass handle | 1 | |||||
| 14 | Remote Controlled Monitor in the cage | 1 | |||||
| 15 | Ventilator (electric type) to be fixed in the cage | 1 | |||||
| 16 | Stretcher with rotating support be fixed in the cage | 1 | |||||
| 17 | Electric Generator petrol engine type 5KVA to provide electric | 1 | |||||
| 18 | Halogen lights 500W each to be fixed in the rescue cage | 2 | |||||
| 19 | Tool bag for the chassis (standard type) | 1 | |||||
| 20 | Firefighter toolbox (professional type) | 1 | |||||
| 21 | First Aid kit | 1 | |||||
| 22 | Wheel stoppers (chocks) | 2 | |||||
| 23 | Spare wheel complete with spare tire | 1 | |||||
| 24 | Hydraulic jack suitable for the vehicle | 1 | |||||
| 10. PAINTING AND MARKS | |||||||
| Driver’s cab and superstructure | Fire red R 03 | ||||||
| Equipment lockers inside | Aluminium colored | ||||||
| Roller shutters | Aluminium colored | ||||||
| Subframe | Black | ||||||
| Front Bumper and fenders | Gray | ||||||
| 11. DOCUMENTS | |||||||
| Chassis instruction manual | One (1) | ||||||
| Fire truck Operation and maintenance manual | One (1) | ||||||
| Chassis Operation and Maintenance Manual | One (1) | ||||||
| Chassis quality warranty card | One (1) | ||||||
| Chassis certificate of conformity, fire truck certificate of conformity | One (1) | ||||||
| Engine number imprint copy | One (1) | ||||||
| Chassis number imprint copy | One (1) | ||||||
| Onboard equipment inventory list | One (1) | ||||||
| Fire truck handover checklist | One (1) | ||||||
