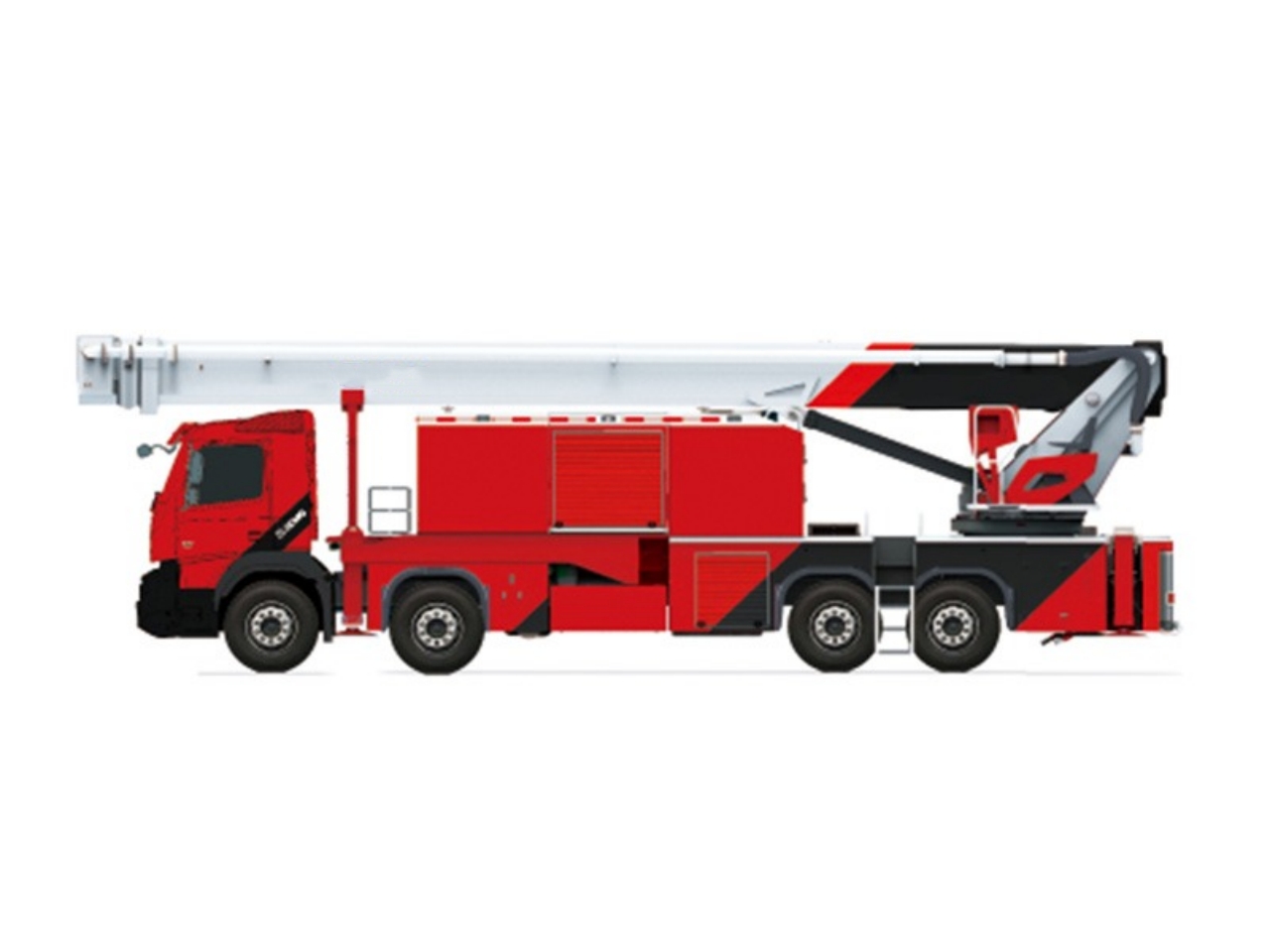

72M Water and Foam Tower Fire Truck

Make/Model:	CSCTRUCK/CSCTFT072
Water+Foam:	2,850+2,100kg
Overall Dimensions(LxWxH):	12,940×2,500×3,950mm
Total weight:	42,680kg
Max. travel speed:	≥85km/h
Max. net power:	397kW
Rated working height:	72m
Max. working radius:	33m
Water monitor rated flow:	≥120L/s
Water monitor rated reach:	≥80m
Fire-rated flow:	≥170L/s
Fire-rated pressure:	≥1MPa

Truck Enquiry

Categories: Aerial Fire Truck, Tower Fire Truck

Description
Reviews (0)

BRIEF

The 72M water and foam tower fire truck produced by CSCTRUCK Fire Rescue Truck is built on a Volvo FM540 national-V chassis, delivering a rated power of 398kW. This provides the vehicle with excellent power density and enhanced mobility for various emergencies. It features a high-capacity HALE 8FGF fire pump paired with an AKRON 3480 + 5178 fire monitor, ensuring superior fire suppression capabilities. The truck’s 5-ton liquid capacity enables it to tackle large-scale fires effectively. Additionally, it comes equipped with advanced fire monitoring systems, one-key water intake functionality, and remote control features, which improve operational efficiency and safety. These intelligent technologies allow the truck to respond swiftly and efficiently in critical situations, making it a reliable asset for firefighting operations.

FEATURES

1. Innovative design and exceptional overall performance: The undercarriage features a K-structure, while the upper booms are arranged in a 4+3+1 folding configuration, allowing for a 33-meter operational range. The boom’s movement is enhanced by advanced control technology that leverages multiple telescoping outriggers, making it safer, more stable, and faster.

2. Powerful engine and excellent firefighting capabilities: Equipped with a 540hp chassis, a high-performance imported fire pump with a capacity of 1,000 L/min, a 7,200 L/min fire monitor, and aluminum alloy large-bore pipelines, it can carry a liquid load of up to 5,000kg, ensuring strong firefighting performance.

3. Automatic amplitude control for enhanced stability: Featuring automatic amplitude control technology based on multi-stage leg extension, the cantilever crane’s movements are optimized for improved safety, stability, and speed.

SPECIFICATION

Item	Unit	Parameter
Overall length	mm	12,940
Overall height	mm	3,950
Overall width	mm	2,500
Total weight	kg	42,680
Extinguishant-rated load weight
Water	kg	2,850
Foam	kg	2,100
Dry powder	kg	–
Max. travel speed	km/h	≥85
Max. net power	kW	397
Rated working height	m	72
Max. working radius	m	33
Time for deploying boom	s	≤200
Time for deploying outriggers	s	≤40
Monitor
Water monitor-rated flow	L/s	≥120
Water monitor-rated reach	m	≥80
Water pump
Fire-rated flow	L/s	≥170
Fire-rated pressure	MPa	≥1
