BRIEF

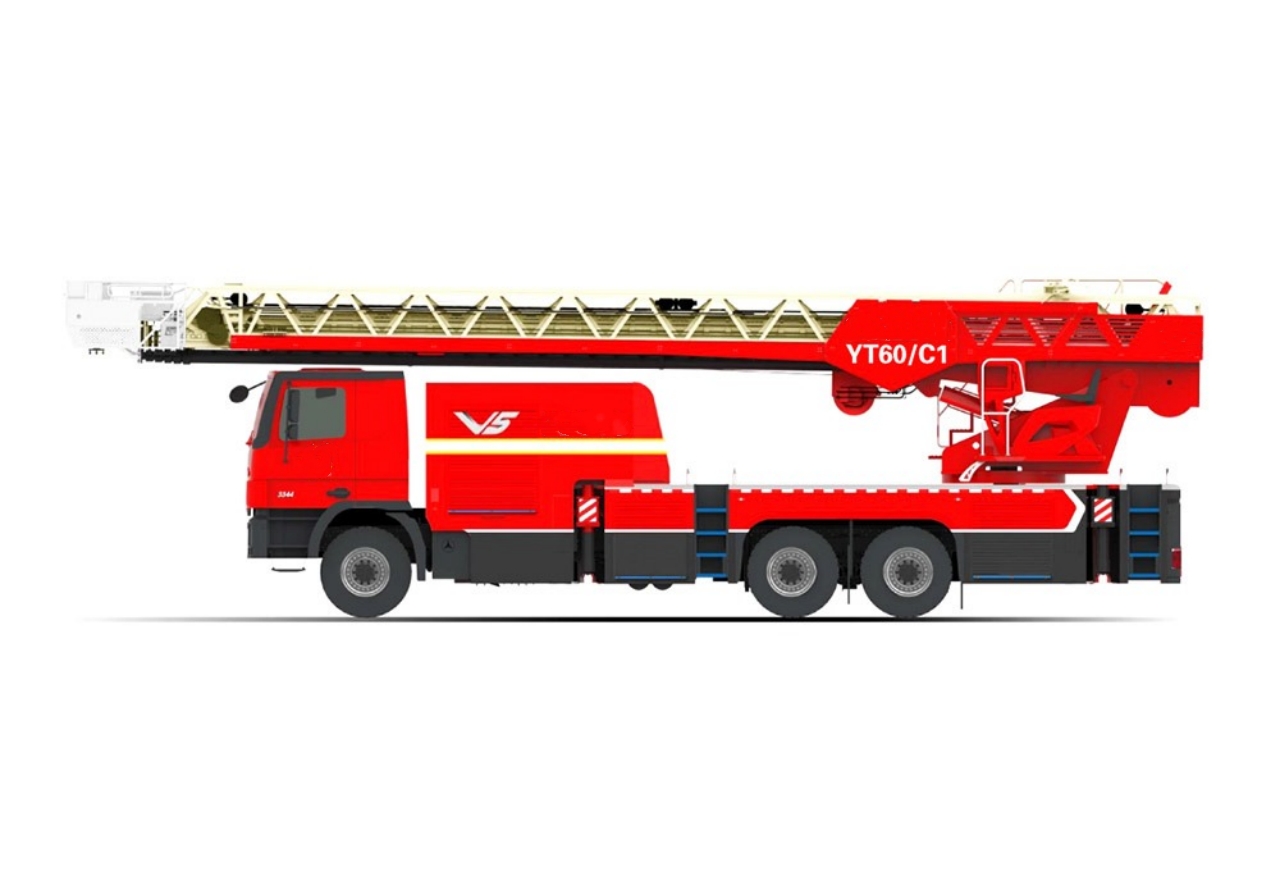

The 60M aerial ladder fire truck produced by CSCTRUCK Fire Rescue Truck is designed primarily for high-altitude rescue operations and is also equipped to handle firefighting in mid-rise buildings. It stands out for its exceptional flexibility and efficiency, boasting robust overall rescue capabilities. The fire truck‘s high safety and reliability ensure that it meets the rigorous demands of urban firefighting and rescue operations. Its comprehensive features make it well-suited for addressing the challenges posed by mid-rise structures, providing both effective firefighting and versatile rescue solutions.
FEATURES
– The 60M aerial ladder fire truck is designed compactly with a short length, small turning radius, and excellent maneuverability compared to others in its class.
– It boasts robust rescue capabilities with 2 operational modes: Working platform and fall block, offering fast and efficient performance.
– The firefighting system features a large-diameter aluminum alloy pipeline, imported pump, and monitor. Its comprehensive configuration ensures powerful firefighting effectiveness.
– The safety protection system is both complete and reliable, including ladder vibration suppression and other control functions that significantly enhance platform rescue comfort and operational dependability.
SPECIFICATION
| Item | Unit | Parameter |
| Overall length | mm | 13,620 |
| Overall height | mm | 4,000 |
| Overall width | mm | 2,500 |
| Total weight | kg | 30,700 |
| Extinguishant-rated load weight | ||
| Water | kg | — |
| Foam | kg | — |
| Dry powder | kg | — |
| Max. travel speed | km/h | 90 |
| Max. net power | kW | 315 |
| Rated working height | m | 60 |
| Max. working radius | m | 18 |
| Rated platform load | kg | 270 |
| Time for deploying boom | s | ≤180 |
| Time for deploying outriggers | s | ≤35 |
| Monitor | ||
| Water monitor-rated flow | L/s | ≥80 |
| Water monitor-rated reach | m | ≥70 |
| Water pump | ||
| Fire-rated flow | L/s | ≥100 |
| Fire-rated pressure | MPa | ≥1 |
| Rated lift load | kg | 180 |
| The working speed of the lift | m/s | 0.8 |
| Working range of lift | ° | 45°-75° |
