BRIEF

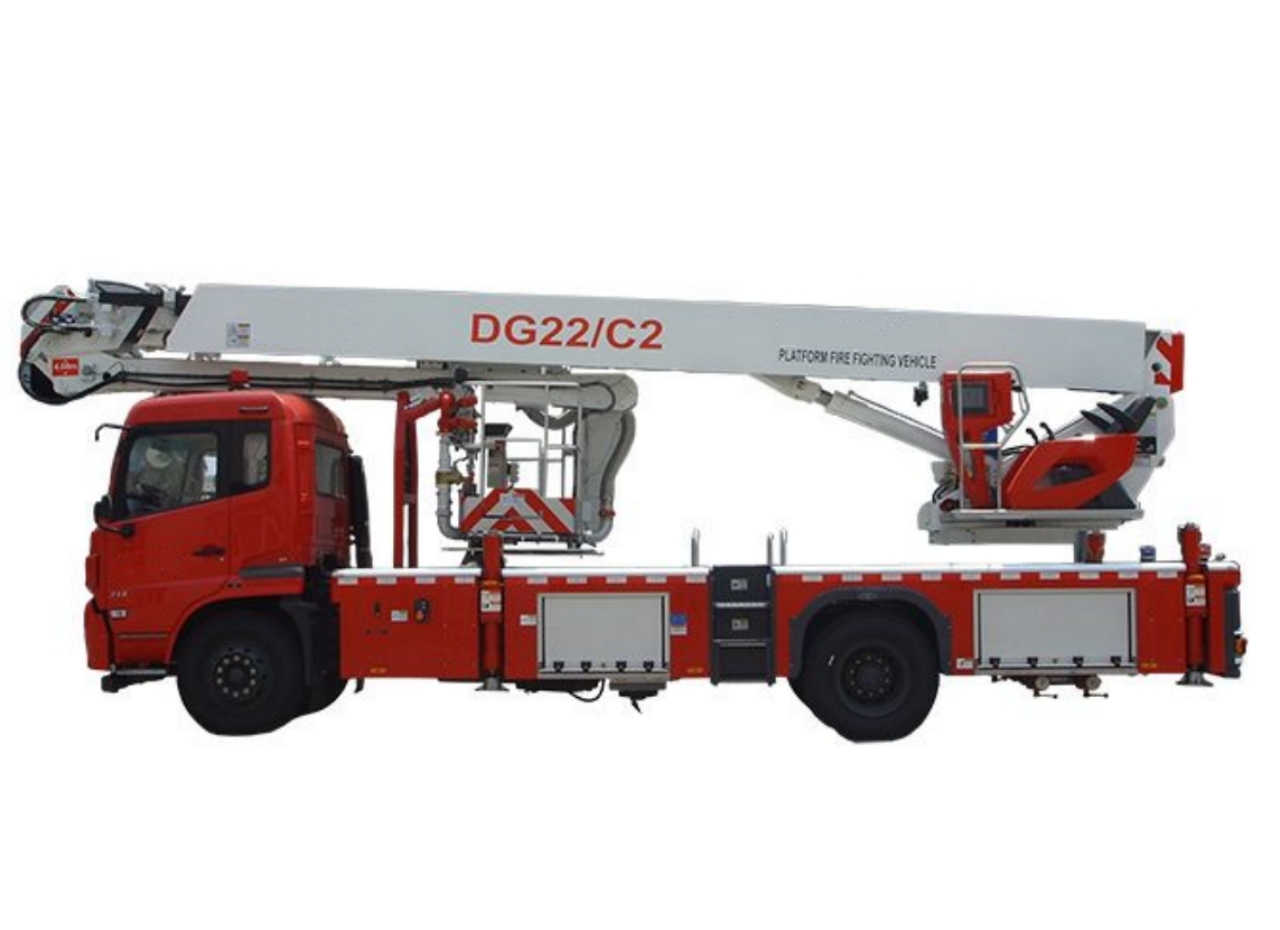

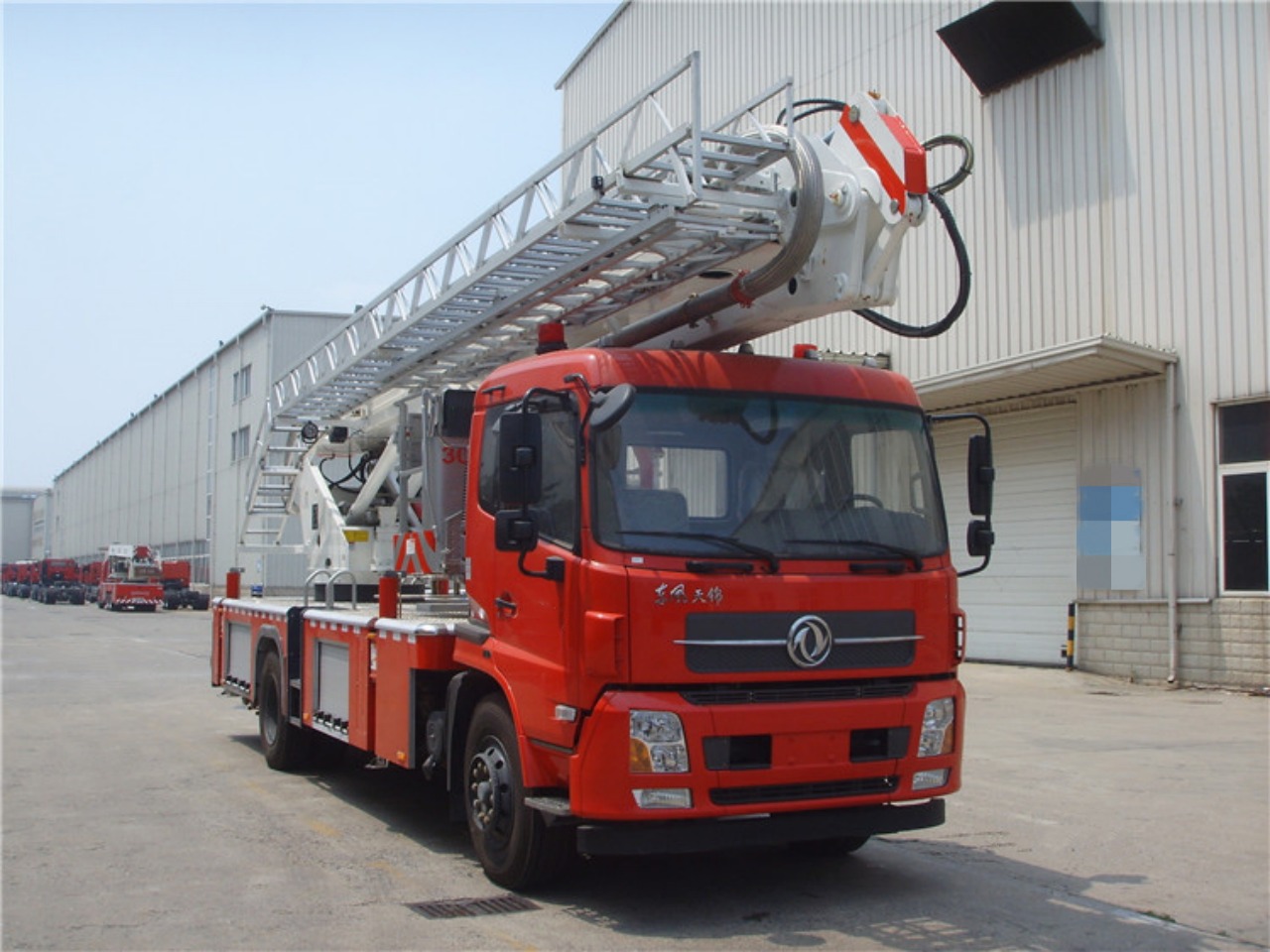

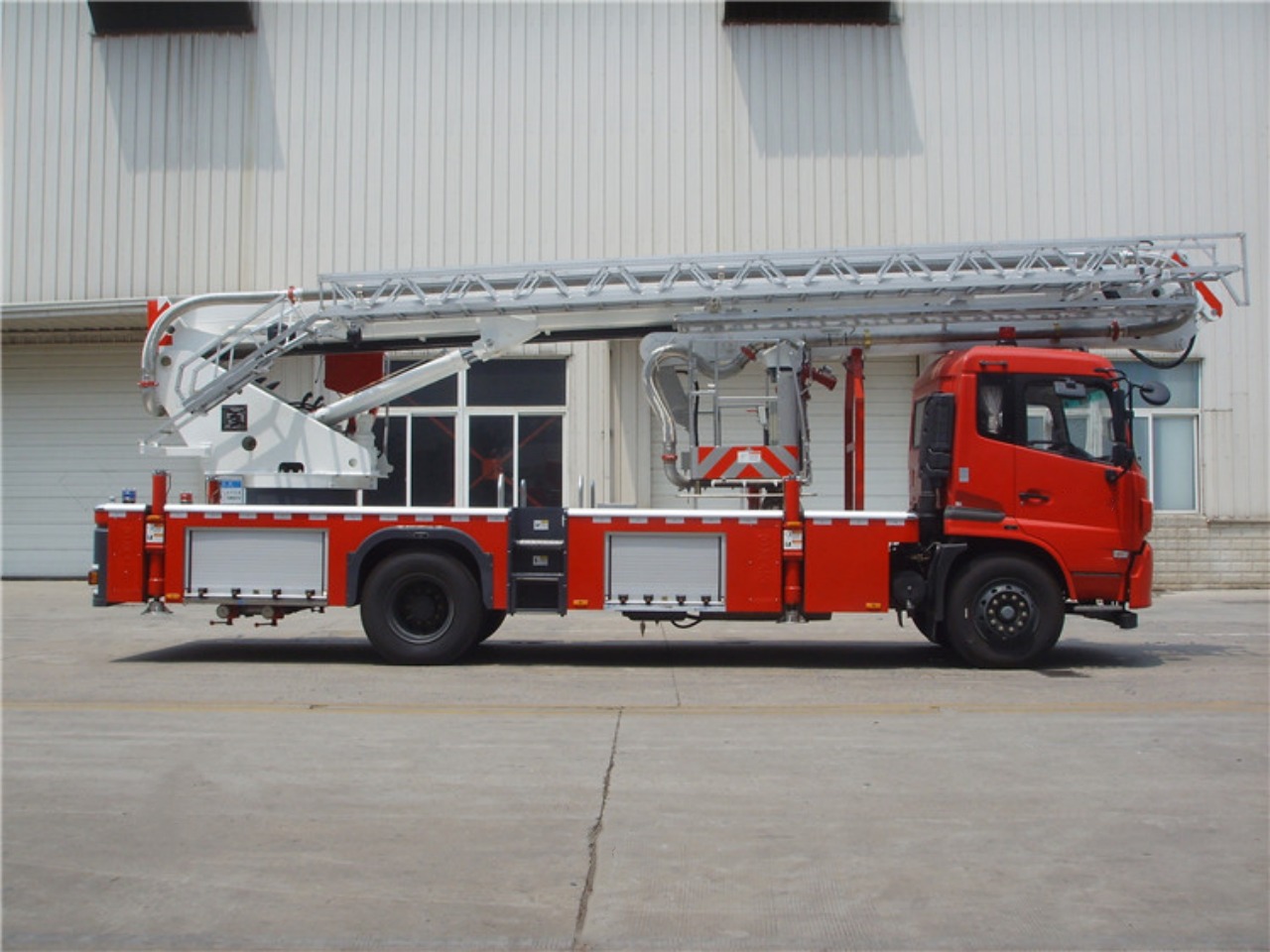

The 22M telesquirt small fire truck by CSCTRUCK Fire Rescue Truck is a highly capable and efficient firefighting vehicle, designed for rapid response and precision in urban and semi-urban settings. Featuring a 22-meter maximum working height and a 14-meter maximum operating radius, it is well-suited for reaching elevated areas during firefighting and rescue operations. Its compact size and agility make it an excellent choice for navigating congested urban environments.
This fire truck is built on a Dongfeng chassis with a 4×2 drive configuration, ensuring dependable maneuverability and stability. It offers a top speed of ≥90 km/h, allowing for quick deployment to emergency sites. The vehicle complies with EURO V emission standards, reflecting its environmentally friendly design.
Key firefighting components include the PSKD40D firefighting gun, with a rated flow of 40L/s (±8%) and a rated pressure of ≤0.9 MPa, providing powerful and consistent performance. The gun’s shooting range extends to ≥65 meters, delivering extensive coverage to combat fires effectively. The truck also features a maximum slewing speed of 0.5–1.5 r/min, ensuring precise and efficient positioning of the equipment.
With its versatile capabilities, compact design, and advanced firefighting technology, the 22M telesquirt small fire truck is a valuable asset for fire departments. It demonstrates a perfect balance of performance, reliability, and eco-friendliness, ideal for tackling challenging fire and rescue scenarios.
FEATURES
- High-Performance Aerial Capability:
- Maximum working height: 22 meters
- Maximum operating radius: 14 meters
- Chassis and Drive System:
- Built on a Dongfeng chassis
- Features a 4×2 drive type and achieves a maximum speed of ≥90 km/h
- Emission and Environmental Compliance:
- Meets the EURO V emission standard, ensuring lower emissions and adherence to modern environmental regulations.
- Fire Fighting Gun Specifications:
- Equipped with the PSKD40D model firefighting gun
- Rated flow: 40 L/s (±8%)
- Rated pressure: ≤0.9 MPa
- Shooting range: ≥65 meters
- Precision Slewing Mechanism:
- Maximum slewing speed: 0.5–1.5 r/min, allowing accurate positioning during operations.
SPECIFICATION
| Boundary dimensions(LxWxH) | 10,190×2,500×3,800 mm | |
| Full mass | 15,325 kg | |
| Maximum speed | ≥90 km/h | |
| Minimum turning diameter | ≤19 m | |
| Approach angle | ≥17° | |
| Departure angle | ≥9° | |
| Maximum gradability | ≥25% | |
| Outrigger span | Longitudinal span | 5,500 mm |
| Horizontal span | 5,500 mm | |
| Work platform load | 300 kg | |
| Maximum working height | 22 m | |
| Maximum working range | 14 m | |
| Elevating angle of boom | The elevating angle of the telescopic boom is -3°-+80° | |
| The elevating angle of the folding boom and the telescopic boom is 0°-+175° | ||
| Rotation scope | 360° full-rotation | |
| Spread time of outrigger | ≤30 s | |
| Time for lifting the boom to rated height and rotating 90° | ≤150 s | |
| Maximum slewing speed | 0.5~1.5 r/min | |
| Fire fighting gun | Model | PSKD40D |
| Rated flow | 40 L/s (±8%) | |
| Rated pressure | ≤0.9 MPa | |
| Range | ≥65 m | |
