BRIEF

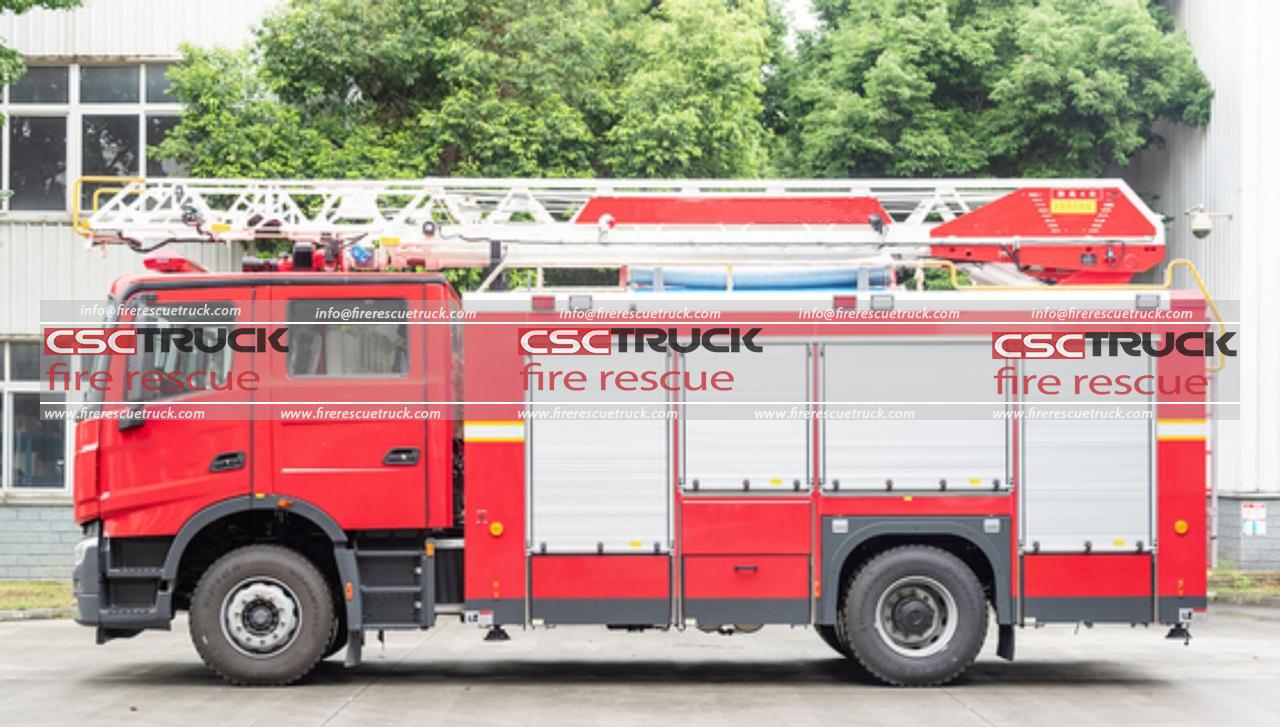

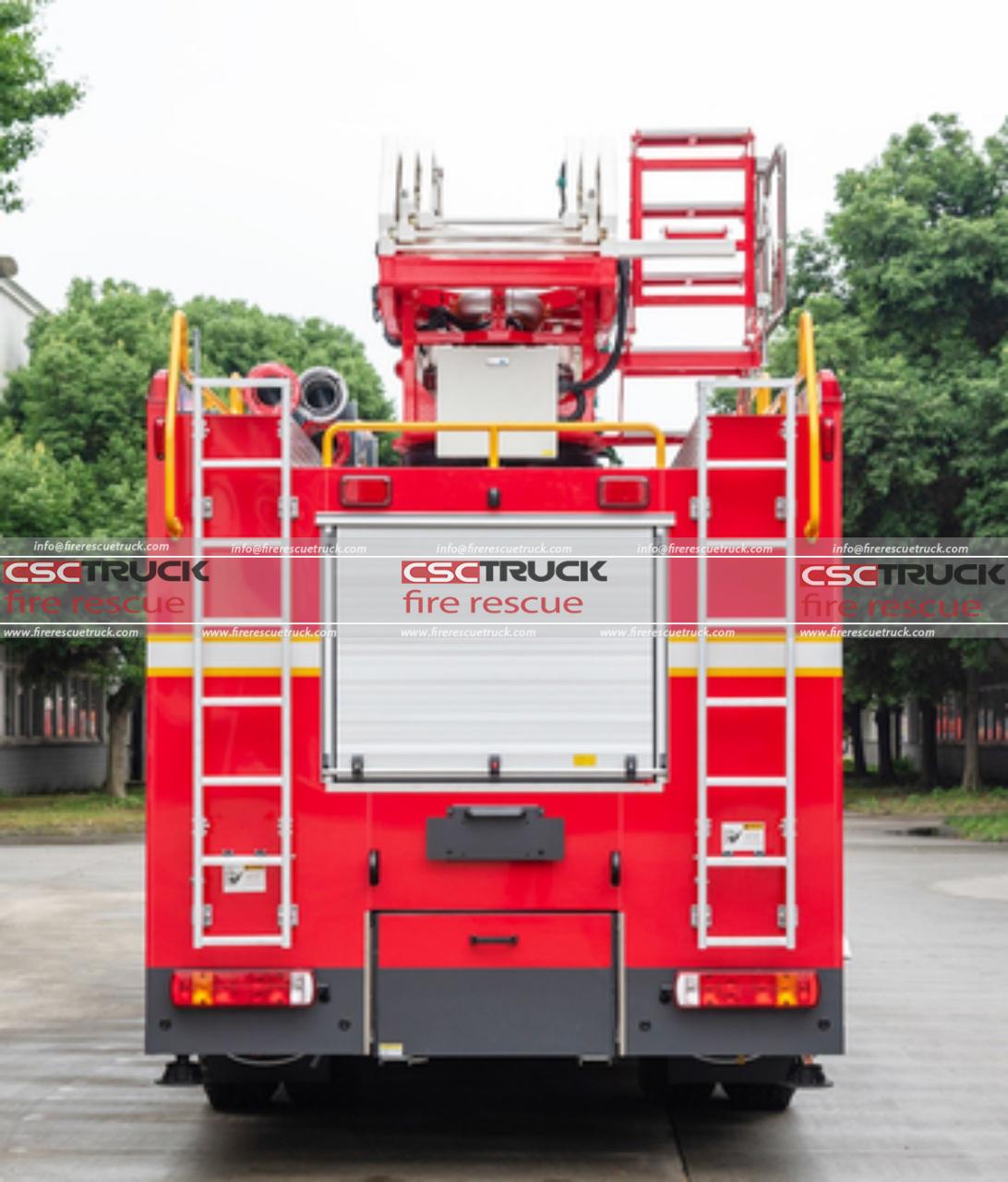

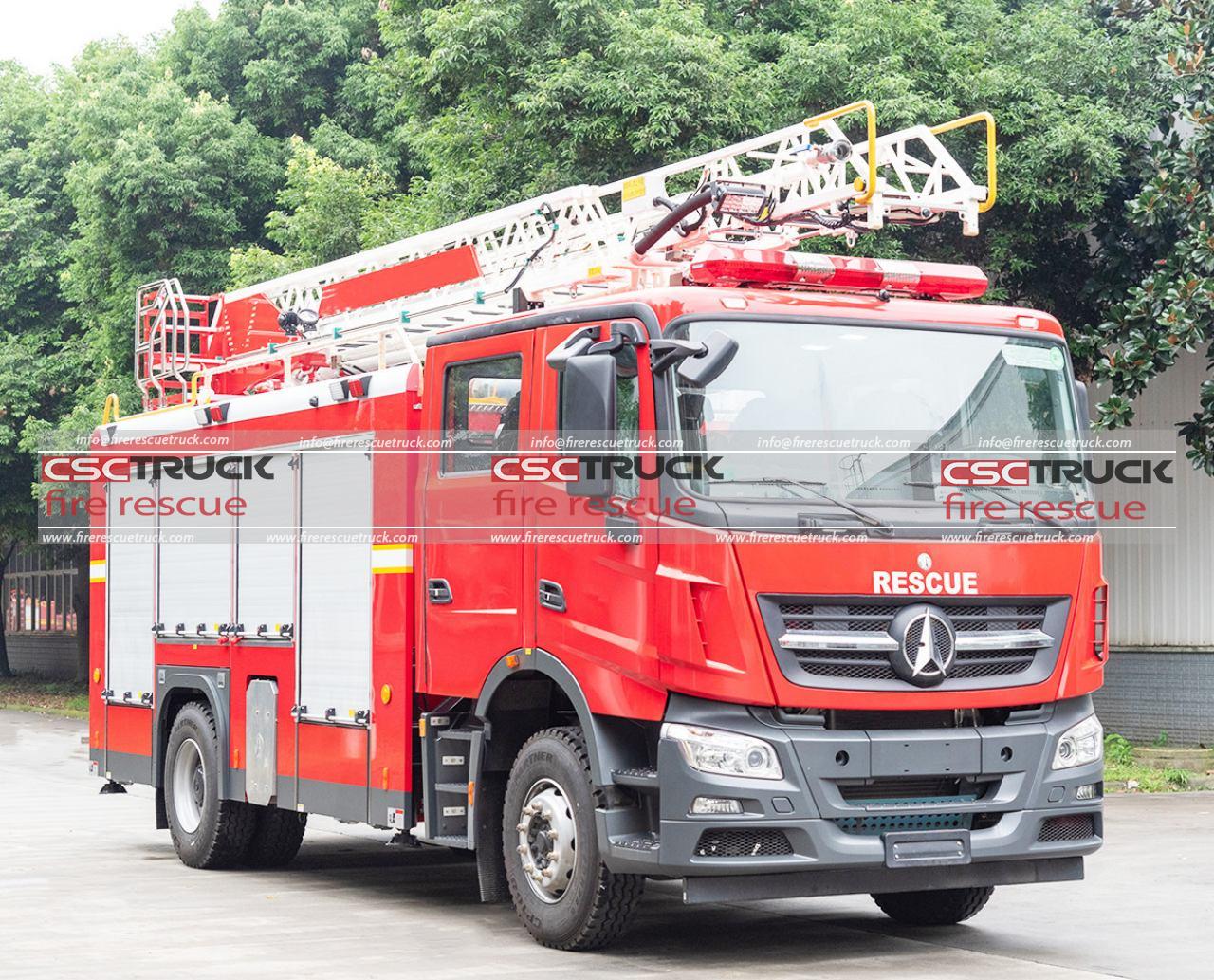

The 18M 4000 liters aerial ladder fire truck by CSCTRUCK Fire Rescue Truck is a highly efficient firefighting vehicle designed for rapid and versatile response in emergencies. Built on a robust Beiben chassis with a 4×2 drive type, it offers reliable stability and maneuverability, making it suitable for varied urban environments. The truck’s standout feature is its aerial ladder, which provides a maximum working height of 18 meters, enabling access to challenging or elevated locations.
Equipped with a WP8.350E62 engine, it delivers a powerful 257kW at 2,200rpm, achieving speeds up to 90km/h, ensuring timely arrival at emergency sites. This fire truck is outfitted with a 3,000-liter water tank and a 550-liter foam tank, both crafted from durable PP composite material to withstand harsh operational conditions.
For fire suppression capabilities, the truck boasts an efficient fire pump with a flow rate of 50 liters per second at 10 bars. Additionally, the fire monitor can discharge at 48 liters per second, reaching a shooting range of 70 meters or more, providing strong fire containment. Designed for intense firefighting scenarios, this fire truck model delivers an impressive blend of speed, power, and operational reach, making it a dependable asset for modern firefighting and rescue missions.
FEATURES
1. High Reach & Flexibility: This truck is equipped with an 18-meter aerial ladder, allowing firefighters to access elevated areas, making it suitable for high-rise firefighting and rescue operations.
2. Dual-Tank System: It includes a 3,000-liter water tank and a 550-liter foam tank, providing both water and foam firefighting capabilities for various types of fires.
3. Efficient Fire Pump & Monitor: The fire pump offers a flow rate of 50 liters per second at 10 bar, while the fire monitor delivers up to 48 liters per second with a shooting range of over 70 meters, ensuring high firefighting efficiency from a distance.
4. Powerful Engine: Powered by a WP8.350E62 engine with a rated power of 257kW at 2,200rpm, this truck reaches speeds of up to 90km/h, offering rapid response times to emergency locations.
5. Durable & Lightweight Tank Material: The tank is made of PP composite material, known for its durability and resistance to corrosion, while also being lightweight, which aids in maintaining the truck’s stability and overall performance.
SPECIFICATION
| No. | Main Items | Technical Parameters |
| 1 | Model |
CSCALFT018 |
| 2 | Overall Dimensions(LxWxH) | 8,650×2,550×3,900mm |
| 3 | Full Load Weight | 19,800kg |
| 4 | Number of the Crew | 2+4 (include driver) |
| 5 | Max. Speed | 90km/h |
| 6 | Capacity | 3,000L Water & 550L Foam tank. PP-C composite material liquid tank. |
| 7 | Fire pump flow rate | 50L/s@10bar |
| 8 | Fire monitor | 48L/s. flow rate, 70m shoot range |
| 9 | Max. working height | 18m |
Chassis
1 Manufacturer: Beiben Trucks Group Co., Ltd.
2 Model: ND5210TTZZ02
3 Drive Type: 4×2
4 Wheelbase: 4,800mm
5 Engine model: WP8.350E62
6 Engine type: In-line 6-cylinder diesel engine, electronically controlled high-pressure common rail, turbocharged and intercooler.
7 Rated power: 257/2,200(kW/rpm)
8 Gearbox form: Manual gearbox
9 PTO: Full power sandwich type, with an additional cooling device
10 Fuel tank capacity: 200L fuel tank
Fire Fighting System
1 Fire Pump
- Rated Flow Rate: 50L/s@10bar
- Vacuum Pump: Integrated design with the water pump, directly driven through the pump shaft, no additional power required, no noise
- Priming Manner: Automatic
- Suction Height: 7m
- Priming Time: ≤60s
- Location: Rear-mounted
2 Roof Fire Monitor
- Flow Rate: 48L/s.
- Shoot Range: Water≥70 m, Foam≥60 m
- Location: Top of the carriage
- Control Manner: Electric remote control
- Horizontal Rotation Angle: 90° to the left, 90° to the right
- Pitch Rotation Angle: -17°～75°
3 Liquid Tank
- Capacity: Water 3,000 Liters + Foam 550 Liters
- Material: PP-C composite material and Never Rust
- Structure: Two Tank Manholes; Two Overflow Devices/Pressure Relief Devices; Two Liquid Level Indicators; One Foam tank Drain Outlet with Valves; One Water tank Drain Outlet with Valves.
