BRIEF

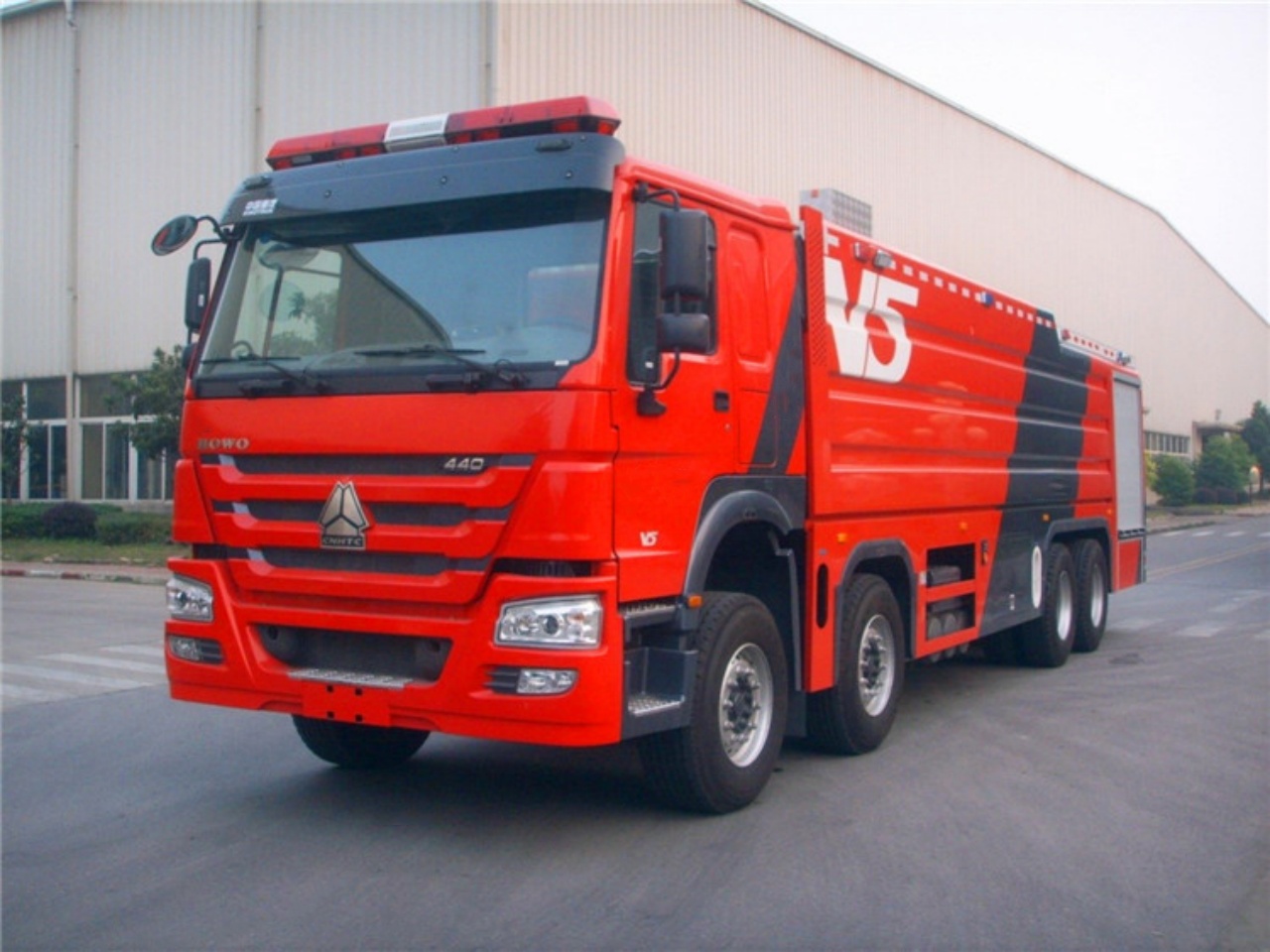

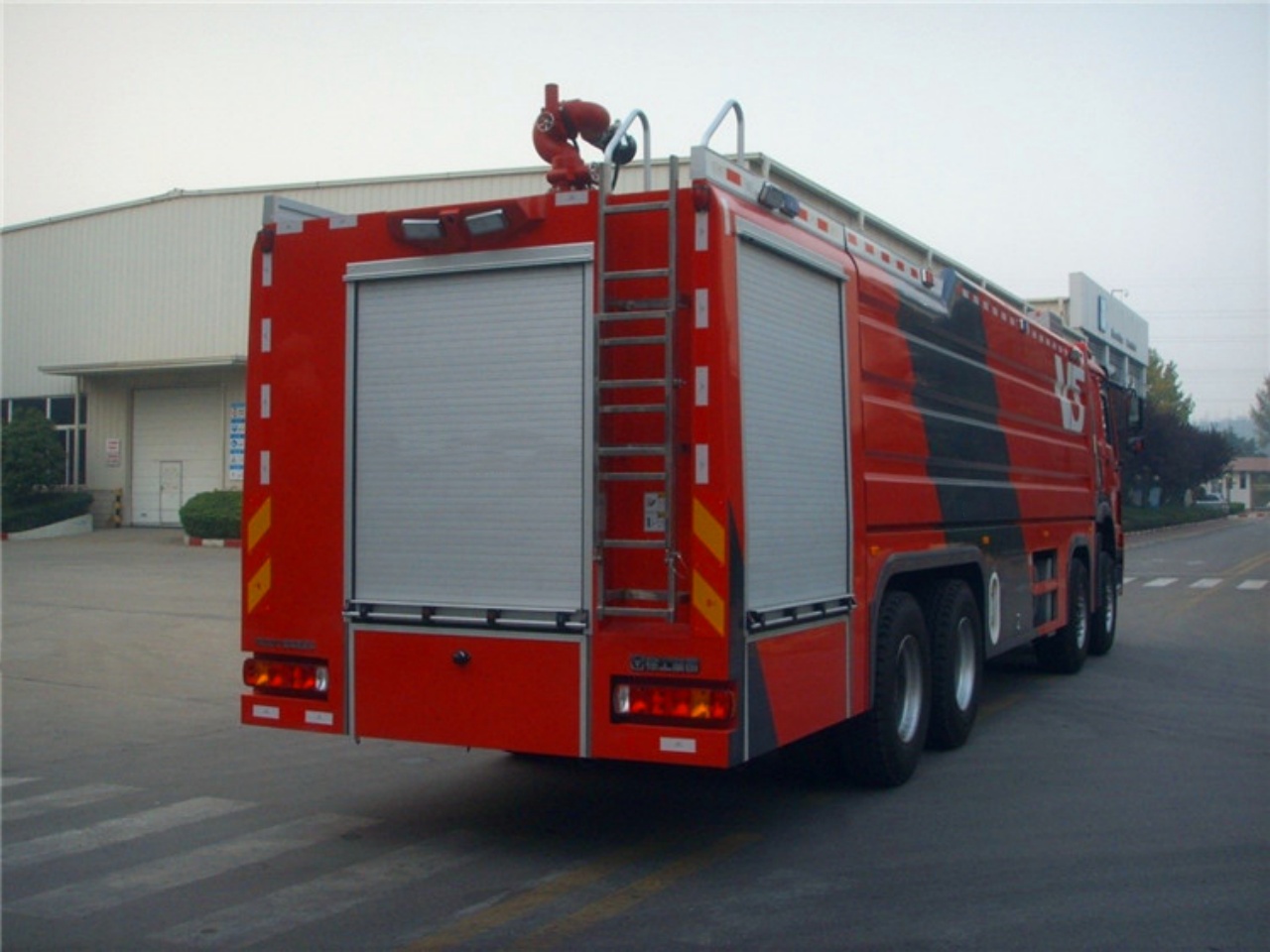

The CSCTRUCK Fire Rescue Truck’s 12-wheeler 25-ton foam fire engine is a prime example of modern firefighting technology, combining robust design with exceptional performance to meet the demands of emergency response. Engineered on the reliable HOWO/ZZ5437V4667E1 chassis, this advanced apparatus features an 8X4 drive configuration, ensuring superior stability and traction in challenging terrains. Its impressive power output of 324 kW meets EURO V emission standards, reflecting both efficiency and environmental responsibility.

The 12-wheeler 25-ton foam fire engine is equipped with a dual-extinguishing system that provides a water capacity of 18,100 Kg alongside a foam capacity of 6,500 Kg. This extensive supply guarantees a swift and effective response to various types of fires, from conventional blazes to those requiring specialized foam suppression. With a full loading weight of 41,700 Kg, the fire engine maintains balanced performance and durability even under the most strenuous conditions.

Speed and efficiency are paramount in emergency response. With a maximum driving speed of 95 km/h or greater, this fire engine can quickly navigate urban and rural environments alike. Its firefighting capabilities are further enhanced by an integrated fire pump that delivers a rated flow of 90 L/s at a pressure of 1.0 MPa. This system supports rapid water deployment with a water absorption depth of 7 meters and a diversion time of 100 seconds or less.

Additionally, the fire engine features a PSKD80W fire monitor, capable of delivering an 80 L/s flow at 1.0 MPa pressure, reaching a shooting range of at least 80 meters. This comprehensive configuration makes the foam fire engine an indispensable tool in modern firefighting, ensuring quick, powerful, and precise action against emergencies, ultimately safeguarding lives and property. Equipped with state-of-the-art technology and built for durability, this fire engine delivers unmatched performance, ensuring timely and effective emergency responses in any scenario across the board.

FEATURES

1. High Firefighting Capacity:
   • Equipped with a substantial water capacity of 18,100 kg and a foam capacity of 6,500 kg, this engine is designed to handle large-scale fires efficiently.
2. Robust Chassis and Performance:
   • Built on the HOWO/ZZ5437V4667E1 chassis with an 8×4 drive type, it boasts a powerful 324 kW engine while adhering to the EURO V emission standard, ensuring both high performance and environmental compliance.
3. Efficient Pumping System:
   • The integrated fire pump delivers a rated flow of 90 L/s at 1.0 MPa, enabling rapid water deployment to suppress fires effectively.
4. Quick Water Diversion and Accessibility:
   • With a water absorption depth of 7 m and a diversion time of 100 seconds or less, the engine can quickly access and utilize water sources in emergency scenarios.
5. Long-Range Fire Monitoring:
   • Outfitted with the PSKD80W fire monitor, it offers an 80 L/s rated flow at 1.0 MPa and a shooting range of 80 m, allowing for precise and extended reach in fire suppression operations.

SPECIFICATION
