BRIEF

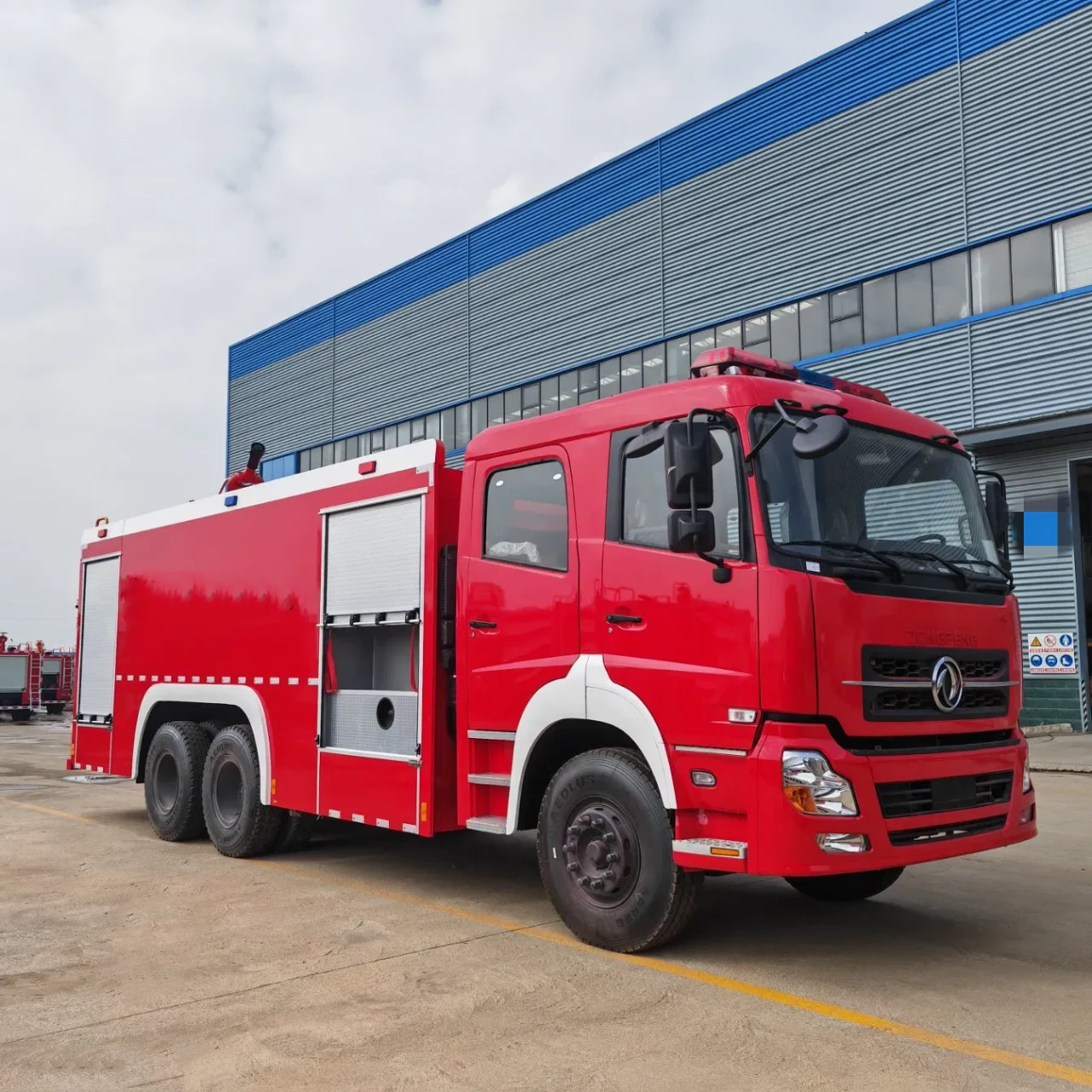

The 10-Wheeler 19,000-Liter pumper fire fighting truck produced by CSCTRUCK Fire Rescue Truck is a high-capacity emergency response vehicle designed for efficient firefighting operations. Built on a Dongfeng chassis with a 6×4 drive configuration, this truck ensures stability and durability on various terrains. It is powered by an ISLe375 30 engine, delivering 375 horsepower and complying with the Euro 2 emission standard, allowing it to reach a maximum speed of 98 km/h for rapid deployment.

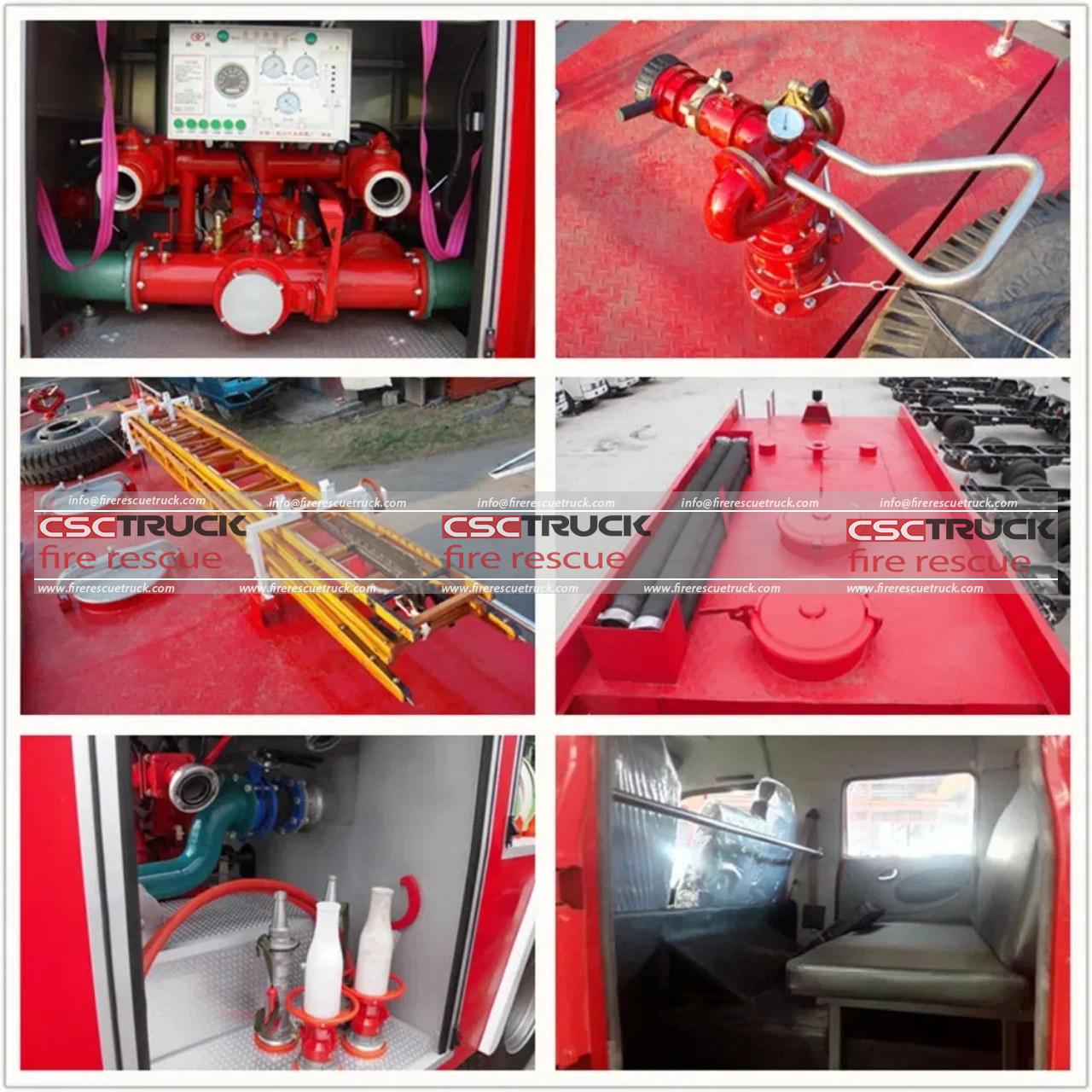

The firefighting capabilities of this 10-Wheeler 19,000-Liter pumper fire fighting truck are enhanced by its dual-tank system, consisting of a 16,000-liter water tank and a 3,000-liter foam tank, enabling versatile fire suppression. It is equipped with a CB10/80 fire pump, which delivers a rated flow of 80 liters per second at a pressure of 1.0 MPa, ensuring high-performance water delivery. The truck can begin pumping water in ≤50 seconds, demonstrating its rapid response capability.

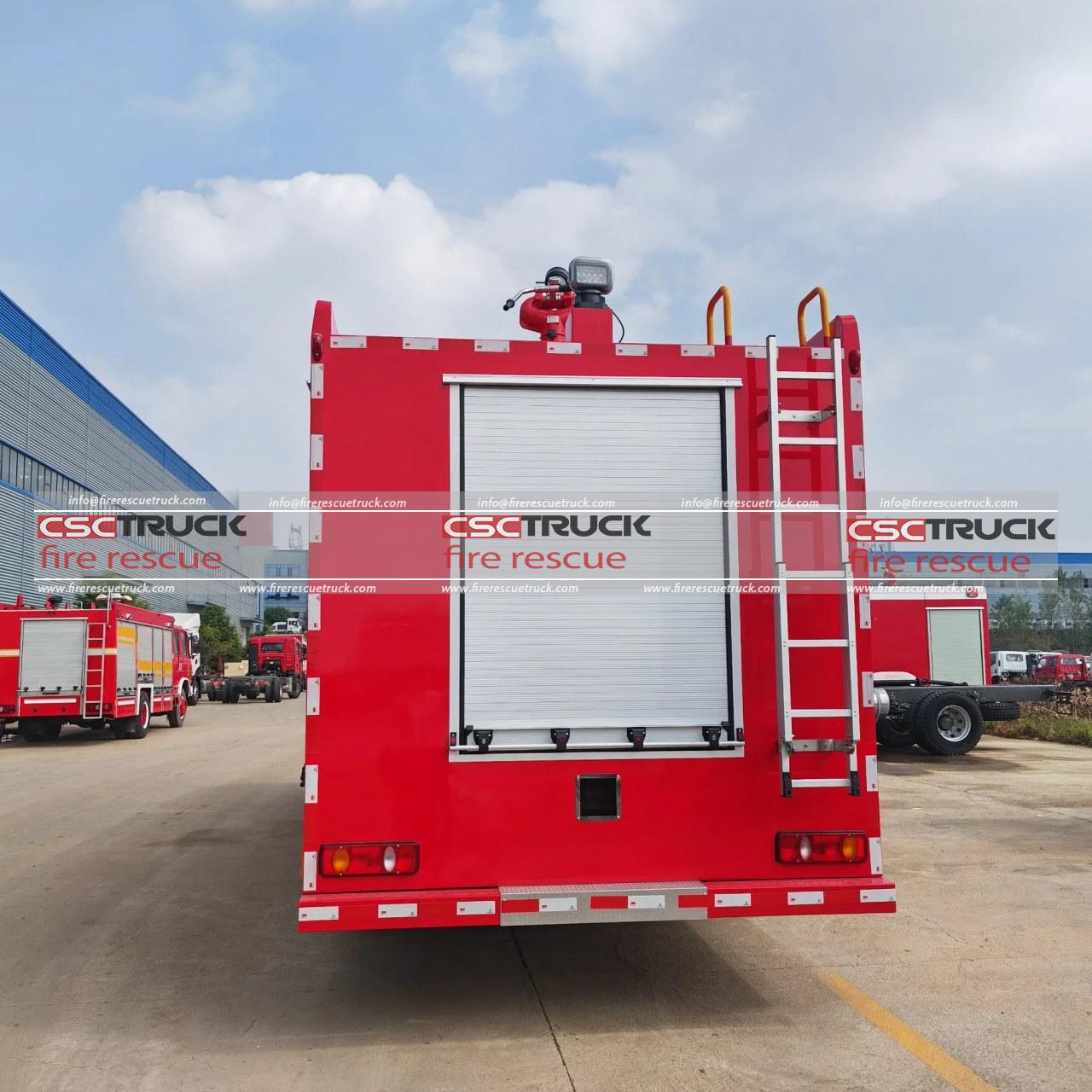

At the rear, the PL48 water monitor is installed, providing a water range of at least 60 meters. The monitor is highly maneuverable, with a horizontal rotation of up to 270° and a pitch angle adjustment from -20° to 70°, allowing firefighters to target flames with precision from a safe distance.
This 10-Wheeler 19,000-Liter pumper fire fighting truck is an ideal choice for municipalities, industrial complexes, and emergency response teams that require a high-capacity, high-performance fire truck to handle large-scale fires efficiently.
FEATURES
- Large Water and Foam Tank Capacity – Equipped with a 16,000L water tank and a 3,000L foam tank, ensuring a high supply of firefighting agents for extended operations.
- High-Performance Fire Pump – Features a CB10/80 fire pump with an 80L/s rated flow and 1.0Mpa rated pressure, delivering water efficiently within ≤50 seconds.
- Powerful Engine and Chassis – Built on a Dongfeng 6×4 chassis, powered by an ISLe375 30 engine with 375HP, meeting Euro 2 emission standards and reaching a 98 km/h maximum speed.
- Advanced Water Monitor System – Equipped with a PL48 water monitor, providing a ≥60m water range, 270° horizontal rotation, and -20° to 70° pitch angle for optimal firefighting coverage.
- Durable and Reliable Design – Rear-mounted fire pump installation ensures efficient water delivery, while the 10-wheeler configuration enhances stability and load-bearing capacity for demanding firefighting operations.
SPECIFICATION
| Cab | Chassis Brand | Dongfeng | |||
| Production Year | 2025 | ||||
| Overall Dimensions(LxWxH) | 10,075*2,500*3,650(mm) | ||||
| Cabin | Double | ||||
| Air Conditioner | With | ||||
| Drive Type | 6*4 | ||||
| Steering Wheel | Left Hand Driver | ||||
| Transmission | Manual | ||||
| Wheelbase | 4,350+1,300mm | ||||
| Tyre Specification | 11.00R20 | ||||
| Tyre No. | 10+1 | ||||
| Max Speed | 98km/h | ||||
| Paint | Red | ||||
| Engine | Fuel Type | Diesel | |||
| Engie Model | ISLe375 30 | ||||
| Engine Brand | Cummins | ||||
| Power | 375hp | ||||
| Superstructure | Water Tank | 16,000L Carton steel | |||
| Foam Tanker | 3,000L Carton steel | ||||
| Fire Pump | Model | CB10/80 | |||
| Flow | 80L/s | ||||
| Pressure | 1.0Mpa | ||||
| Water Delivery time | ≤50s | ||||
| Installation form | Rear | ||||
| Water Monitor | Model | PL48 | |||
| Monitor rang(m) | Water ≥60m | ||||
| Rotation Angle | Horizontal ≥270°, pitch -20°~70°. | ||||
